Information of LGRIG® Regular Nut Eye Bolts LG-291

Brand	LGRIG®
Technical Notes	Eye bolt meets or exceeds all requirements of ASME B30.26.
Model	G-291
Material	Forged Steel Regular Nut Eye Bolts
Processing	Drop Forged, Quenched and Tempered
Finish	Hot Dip Galvanized
Size	1/4 x 2”,1/4 x 4”,5/16 x 2 1/4”,5/16 x 4 1/4”,3/8 x 2 1/2”,3/8 x 4 1/2” 3/8 x 6”,1/2 x 3 1/4”,1/2 x 6”,1/2 x 8”,1/2 x 10”,1/2 x 12” 1/2 x 15”,5/8 x 4”,5/8 x 6”,5/8 x 8”,5/8 x 10”,5/8 x 12” 5/8 x 15”,5/8 x 24”,3/4 x 4 1/2”,3/4 x 6”,3/4 x 8”,3/4 x 10” 3/4 x 12”,3/4 x 15”,7/8 x 5”,7/8 x 8”,7/8 x 12”,1 x 6” 1 x 9”,1 x 12”,1 x 18”,1 1/4 x 8”,1 1/4 x 12”,1 1/4 x 20”
Safety Factor	5:1
Tips	Furnished with standard Hot Dip galvanized hex nuts.
Country of Origin	China

Specifications of LGRIG® Regular Nut Eye Bolts LG-291

Part No.	Shank Dia&Length(in)	Working Load Limit (lbs)	Weight Per 100 (lbs)	Dimensions (in)

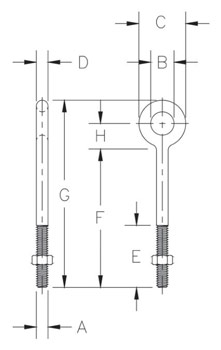

Part No.	Shank Dia&Length(in)	Working Load Limit (lbs)	Weight Per 100 (lbs)	A	B	C	D	E	F	G	H
LG291EB101	1/4 x 2	500	8.2	0.25	0.5	1	0.25	1.5	2	3.06	0.56
LG291EB102	1/4 x 4	500	11.7	0.25	0.5	1	0.25	2.5	4	5.06	0.56
LG291EB103	5/16 x 2 1/4	800	13.3	0.31	0.62	1.25	0.31	1.5	2.25	3.56	0.69
LG291EB104	5/16 x 4 1/4	800	25	0.31	0.62	1.25	0.31	2.5	4.25	5.56	0.69
LG291EB105	3/8 x 2 1/2	1200	23.3	0.38	0.75	1.5	0.38	1.5	2.5	4.12	0.88
LG291EB106	3/8 x 4 1/2	1200	29.5	0.38	0.75	1.5	0.38	2.5	4.5	6.12	0.88
LG291EB107	3/8 x 6	1200	35.2	0.38	0.75	1.5	0.38	2.5	6	7.62	0.88
LG291EB108	1/2 x 3 1/4	2200	50.3	0.5	1	2	0.5	1.5	3.25	5.38	1.12
LG291EB109	1/2 x 6	2200	66.1	0.5	1	2	0.5	3	6	8.12	1.12
LG291EB110	1/2 x 8	2200	82	0.5	1	2	0.5	3	8	10.12	1.12
LG291EB111	1/2 x 10	2200	88	0.5	1	2	0.5	3	10	12.12	1.12
LG291EB112	1/2 x 12	2200	114.2	0.5	1	2	0.5	3	12	14.12	1.12
LG291EB113	1/2 x 15	2200	116.85	0.5	1	2	0.5	4	15	17.12	1.12
LG291EB114	5/8 x 4	3500	103.1	0.62	1.25	2.5	0.62	2	4	6.69	1.44
LG291EB115	5/8 x 6	3500	118.2	0.62	1.25	2.5	0.62	3	6	8.69	1.44
LG291EB116	5/8 x 8	3500	135.1	0.62	1.25	2.5	0.62	3	8	10.69	1.44
LG291EB117	5/8 x 10	3500	153.6	0.62	1.25	2.5	0.62	3	10	12.69	1.44
LG291EB118	5/8 x 12	3500	167.1	0.62	1.25	2.5	0.62	4	12	14.69	1.44
LG291EB119	5/8 x 15	3500	201.16	0.62	1.25	2.5	0.62	5	15	17.69	1.44
LG291EB120	5/8 x 24	3500	279.1	0.62	1.25	2.5	0.62	6	24	26.69	1.44
LG291EB121	3/4 x 4 1/2	5200	168.6	0.75	1.5	3	0.75	2	4.5	7.69	1.69
LG291EB122	3/4 x 6	5200	184.5	0.75	1.5	3	0.75	3	6	9.19	1.69
LG291EB123	3/4 x 8	5200	207.9	0.75	1.5	3	0.75	3	8	11.19	1.69
LG291EB124	3/4 x 10	5200	235	0.75	1.5	3	0.75	3	10	13.19	1.69
LG291EB125	3/4 x 12	5200	257.5	0.75	1.5	3	0.75	4	12	15.19	1.69
LG291EB126	3/4 x 15	5200	298	0.75	1.5	3	0.75	5	15	18.19	1.69
LG291EB127	7/8 x 5	7200	270	0.88	1.75	3.5	0.88	2.5	5	8.75	2.00
LG291EB128	7/8 x 8	7200	308	0.88	1.75	3.5	0.88	4	8	11.75	2.00
LG291EB129	7/8 x 12	7200	400	0.88	1.75	3.5	0.88	4	12	15.75	2.00
LG291EB130	1 x 6	10000	421	1	2	4	1.00	3	6	10.31	2.31
LG291EB131	1 x 9	10000	468.5	1	2	4	1.00	4	9	13.31	2.31
LG291EB132	1 x 12	10000	540	1	2	4	1.00	4	12	16.31	2.31
LG291EB133	1 x 18	10000	650	1	2	4	1.00	7	18	22.31	2.31
LG291EB134	1 1/4 x 8	15200	750	1.25	2.5	5	1.25	4	8	13.38	2.88
LG291EB135	1 1/4 x 12	15200	900	1.25	2.5	5	1.25	4	12	17.38	2.88
LG291EB136	1 1/4 x 20	15200	1210	1.25	2.5	5	1.25	6	20	25.38	2.88
