Information of Short Link Chain Australian Standard Stainless Steel

Technical Notes	Short link chain Conform to Australian Standard.
Material	Stainless Steel AISI316 or AISI304
Processing	Welded
Finish	Highly Polished
Size	5mm, 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 22mm, 24mm short link chain
Tips	Perfect for use in exterior and corrosive environments

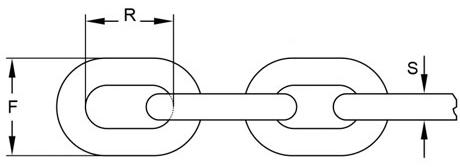

Specifications of Short Link Chain Australian Standard Stainless Steel

Part No.	CHAIN SIZE	WLL	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
	CHAIN SIZE	WLL	DIA. (MM)	INSIDE LENGTH (MM)	OUTSIDE WIDTH (MM)	LINKS PER M	B.F.	H.D.G.
	MM	MT	DIA. (MM)	INSIDE LENGTH (MM)	OUTSIDE WIDTH (MM)	PC	M	M
LGSSCASSL05	5	0.24	5	14.6	17.2	68.3	174	167
LGSSCASSL06	6	0.32	6.3	18.9	21.5	52.9	114	108
LGSSCASSL08	8	0.53	8.0	24.0	27.5	41.7	70.5	67.0
LGSSCASSL10	10	0.83	10.0	29.5	33.5	33.9	45.2	42.9
LGSSCASSL12	12	1.50	12.5	37.5	40.6	26.7	29.5	28.0
LGSSCASSL13	13	1.60	13	38.3	44.6	25.8	26.9	26.3
LGSSCASSL16	16	2.31	16	47.0	54.0	21.3	17.6	16.7
LGSSCASSL20	20	3.45	20	59.2	68.5	16.9	11.3	11.1
LGSSCASSL22	22	4.55	22	64.9	77	15.4	9.5	9.2
LGSSCASSL24	24	5.34	24	71	82.2	14.1	7.8	7.6
