Name: Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

 Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

 Lifting Eye Nut DIN 582 Drop Forged Stainless Steel

 Stainless Steel Drop Forged Shoulder Eye Bolt With Collar

 Drop Forged Turnbuckle Stainless Steel US Type Body Only

 Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type

 Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type

 Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type

 Drop Forged Wire Rope Clips G450 Stainless Steel US Type

 Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

 Stainless Steel Forged Chain Shackle Oversized Screw Pin-LG RIGGING®

 Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin

 Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150

 Stainless Steel Drop Forged Weld-on D Ring-LG RIGGING®

 Drop Forged Stainless Steel Hammerlock Chain Connector European

 Drop Forged Hammerlock Chain Connector Stainless

 Stainless Steel Drop Forged Master Link-LG RIGGING®

 Stainless Steel Drop Forged Split Chain Connecting Link

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

Technical Notes	Forged bow shackle conform to U.S. Federal Specification(ASME B30.26)
Material	Stainless steel 304/316 Forged Anchor Shackle
Processing	Body: Drop Forged Screw Pin : hot/cold forging / Drop Forged
Finish	Highly Polished
Size	3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4” , 2”, 2-1/2”
Tips	Special specification and marks can be made according to customers’ requirements.

Specifications of Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

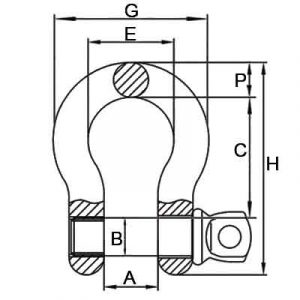

Part No.	Size	WLL	Weight	Dimensions (in.)							Tolerance +/-
Part No.	(in.)	(t)	(lbs)	A	B	C	E	G	H	P	C	A
LG-SS-209-SPBS-3/16	3/16	1/3	0.06	0.38	0.25	0.88	0.6	0.98	1.47	0.19	0.06	0.06
LG-SS-209-SPBS-1/4	1/4	1/2	0.1	0.47	0.31	1.13	0.78	1.28	1.84	0.25	0.06	0.06
LG-SS-209-SPBS-5/16	5/16	3/4	0.19	0.53	0.38	1.22	0.84	1.47	2.09	0.31	0.06	0.06
LG-SS-209-SPBS-3/8	3/8	1	0.31	0.66	0.44	1.44	1.03	1.78	2.49	0.38	0.13	0.06
LG-SS-209-SPBS-7/16	7/16	1-1/2	0.38	0.75	0.5	1.69	1.16	2.03	2.91	0.44	0.13	0.06
LG-SS-209-SPBS-1/2	1/2	2	0.72	0.81	0.63	1.88	1.31	2.31	3.28	0.5	0.13	0.06
LG-SS-209-SPBS-5/8	5/8	3-1/4	1.37	1.06	0.75	2.38	1.69	2.94	4.19	0.69	0.13	0.06
LG-SS-209-SPBS-3/4	3/4	4-3/4	2.35	1.25	0.88	2.81	2	3.5	4.97	0.81	0.25	0.06
LG-SS-209-SPBS-7/8	7/8	6-1/2	3.62	1.44	1	3.31	2.28	4.03	5.83	0.97	0.25	0.06
LG-SS-209-SPBS-1/1	1	8-1/2	5.03	1.69	1.13	3.75	2.69	4.69	6.56	1.06	0.25	0.06
LG-SS-209-SPBS-1-1/8	1-1/8	9-1/2	7.41	1.81	1.25	4.25	2.91	5.16	7.47	1.25	0.25	0.06
LG-SS-209-SPBS-1-1/4	1/1/4	12	9.5	2.03	1.38	4.69	3.25	5.75	8.25	1.38	0.25	0.06
LG-SS-209-SPBS-1-3/8	1-3/8	13-1/2	13.53	2.25	1.5	5.25	3.63	6.38	9.16	1.5	0.25	0.13
LG-SS-209-SPBS-1-1/2	1-1/2	17	17.2	2.38	1.63	5.75	3.88	6.88	10	1.62	0.25	0.13
LG-SS-209-SPBS-1-3/4	1-3/4	25	27.78	2.88	2	7	5	8.86	12.34	2.25	0.25	0.13
LG-SS-209-SPBS-2/1	2	35	45	3.25	2.25	7.75	5.75	9.97	13.68	2.4	0.25	0.13
LG-SS-209-SPBS-2-1/2	2-1/2	55	85.75	4.13	2.75	10.5	7.25	12.87	17.84	3.13	0.25	0.25
