Name: Stainless Steel Long Shank Eye Bolt with Nut and Washer LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

 Lifting Eye Bolt DIN 580 UNC Thread Stainless Steel

 Lifting Eye Nut DIN 582 UNC Thread Stainless Steel

 Stainless Steel Long Shank Eye Bolt with Nut and Washer LG RIGGING®

 Stainless Steel Lifting Eye Bolt DIN 580 LG RIGGING®

 Lifting Eye Nut DIN 582 Stainless Steel LG RIGGING®

 Stainless Steel Eye Bolt JIS 1168 Standard

 Stainless Steel Lifting Eye Nut JIS 1169 UNC Thread

 Stainless Steel Lifting Eye Nut JIS 1169

 Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer

 Stainless Steel Forged Shoulder Nut Eye Bolt G-277

 Regular Nut Eye Bolts G-291 Stainless Steel-LG RIGGING®

 Shoulder Type Machinery Eye Bolt Stainless Steel G-279

 Stainless Steel Lag Eye Bolt

 Stainless Steel Lag Eye Screw

 Stainless Steel Eye Bolt Unwelded

 Stainless Steel Swing Eye Bolt UNC Thread

 Stainless Steel Ring Eye Bolt

 Stainless Steel Welded Eye Bolt with Nut & Washer

 DIN444 Eye Swing Bolts Stainless Steel

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainless Steel Long Shank Eye Bolt with Nut and Washer

Brand	LG RIGGING®
Material	Stainless Steel 304/316 long shank eye bolt
Processing	Hot Upsetting
Finish	High Polished
Size	M6, M8, M10, M12, M16, M20 long shank eye bolt
Tips	Including eyebolts, nut and washer.
Notes	Any length of screw available.

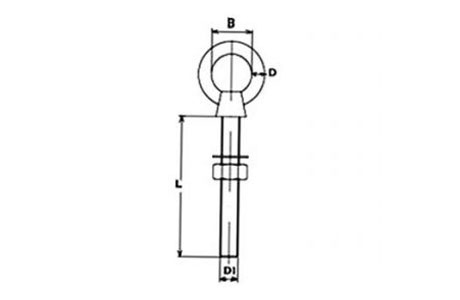

Specifications of Stainless Steel Long Shank Eye Bolt with Nut and Washer


Part No.	D1	L	D	B	Min.BL
Part No.	D1	(mm)			(KN)
LGSSEBLSM01	M6	40	5	15	8.2
LGSSEBLSM02	M6	50	5	15	8.2
LGSSEBLSM03	M6	60	5	15	8.2
LGSSEBLSM04	M6	80	5	15	8.2
LGSSEBLSM05	M6	110	5	15	8.2
LGSSEBLSM06	M8	60	6	20	14.5
LGSSEBLSM07	M8	80	6	20	14.5
LGSSEBLSM08	M8	100	6	20	14.5
LGSSEBLSM09	M8	110	6	20	14.5
LGSSEBLSM10	M8	200	6	20	14.5
LGSSEBLSM11	M10	100	8	25	22.6
LGSSEBLSM12	M10	200	8	25	22.6
LGSSEBLSM13	M10	220	8	25	22.6
LGSSEBLSM14	M12	120	10	30	32.6
LGSSEBLSM15	M12	140	10	30	32.6
LGSSEBLSM16	M12	160	10	30	32.6
LGSSEBLSM17	M12	200	10	30	32.6
LGSSEBLSM18	M16	100	12	35	57.9
LGSSEBLSM19	M16	130	12	35	57.9
LGSSEBLSM20	M16	150	12	35	57.9
LGSSEBLSM21	M20	150	15	40	90.4

Please Note:
Loading at an angle will significantly reduce a bolt’s rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
