Information of Stainless Steel Rigging Screw Body-China LG™

Technical Notes	European Type
Material	AISI316 Stainless Steel
Size	M4 M5 M6 M8 M10 M12 M14 M16 M20 M22 M24 M27 M30
Processing	Machining
Finish	Highly Polishing
Tips	Corrosion Resistant

Specifications of Stainless Steel Rigging Screw Body-China LG™

Tips: With Groove / Without Groove are Available

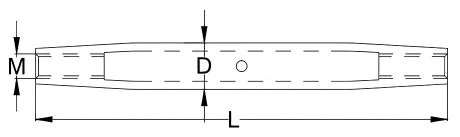

Part. No.	Size（M）	D(mm）	L(mm）	KG/100	B.L.KG.
LG-SS-RS-B-4	M4	7	70	1.1	500
LG-SS-RS-B-5	M5	8	80	1.5	800
LG-SS-RS-B-6	M6	10	95	3.2	1300
LG-SS-RS-B-8	M8	13	105	5	2350
LG-SS-RS-B-10	M10	17	125	11	3500
LG-SS-RS-B-12	M12	21	150	17.5	5400
LG-SS-RS-B-14	M14	21	165	21	5900
LG-SS-RS-B-16	M16	26.5	190	38	8000
LG-SS-RS-B-20	M20	33.5	210	64	13000
LG-SS-RS-B-22	M22	40	273	117	17000
LG-SS-RS-B-24	M24	42.4	320	150	20000
LG-SS-RS-B-27	M27	55	345	243	25500
LG-SS-RS-B-30	M30	55	380	234	31000
LG-SS-RS-B-36	M36	64	410	396	43000

Part. No.	Size（M）	D(mm）	L(mm）	KG/100	B.L.KG.
LG-SS-RS-BU-6	1/4″UNF	11	92	3	1300
LG-SS-RS-BU-8	5/16″UNF	13	112	6	2350
LG-SS-RS-BU-10	3/8″UNF	17	120	11	3500
LG-SS-RS-BU-12	1/2″UNF	21	150	18	5400
LG-SS-RS-BU-16	5/8″UNF	26.5	192	38.5	8000
LG-SS-RS-BU-20	3/4″UNF	33.5	220	66	13000
