Stainless Steel Swivel dD Type Fishing & Trawling Gear-LG RIGGING®

Stainless Steel Swivel dD Type, also known as chain swivel dD Type.

Chain swivel is Hugely Popular Within the Boat, offshore, maritime, and commercial fishing. As it is AISI 304 or 316 Stainless Steel Giving Them The Best Rust Protection.

This stainless steel swivel has a safety factor ratio of 5:1, which means that it have the ability to hold five times the amount of their safe work load (SWL). Remember, although the Swivel is rated to hold five times the rated safe working load, doing so is unsafe and is not recommended.

All the swivels passed the test and come with test certificates.

Trawling Gear
Shackles
Boat Fittings

Information of Stainless Steel Swivel dD Type Fishing & Trawling Gear-China LG™

BrandLG RIGGING®

Material

Stainless Steel AISI 304 or AISI 316 Swivel

Size

6mm 8mm 10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm stainless steel chain swivel

Safe Factor

5:1

Processing

Welding / Machining / Highly Polishing

Tips

For various marine, Fishing, Trawling and industrial rigging applications

Important Notes

*NOT FOR LIFTING*


Specifications of Stainless Steel Swivel dD Type Fishing & Trawling Gear-China LG™


Part No.

Size

(mm)

WLL 5:1

(t)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

Weight

(Kg)

LGSSdD06

6mm

0.27

14

14

14

14

64

0.05

LGSSdD08

8mm

0.5

19

19

19

19

93

0.14

LGSSdD10

10mm

1.1

30

28

17

17

102

0.20

LGSSdD13

13mm

1.6

29

28

27

30

140

0.36

LGSSdD16

16mm

3.2

43

38

35

47

180

0.89

LGSSdD19

19mm

4.7

45

39

38

40

205

1.80

LGSSdD19L

19mm

4.7

45

39

38

63

230

1.85

LGSSdD22

22mm

6.3

45

40

40

42

222

2.25

LGSSdD22L

22mm

6.3

45

40

40

65

250

2.40

LGSSdD25

25mm

8.3

52

50

42

52

278

4.10

LGSSdD25L

25mm

8.3

52

47

47

84

300

4.30

LGSSdD32

32mm

12

60

50

50

98

350

8.15

LGSSdD38

38mm

18

72

58

58

112

390

13.0

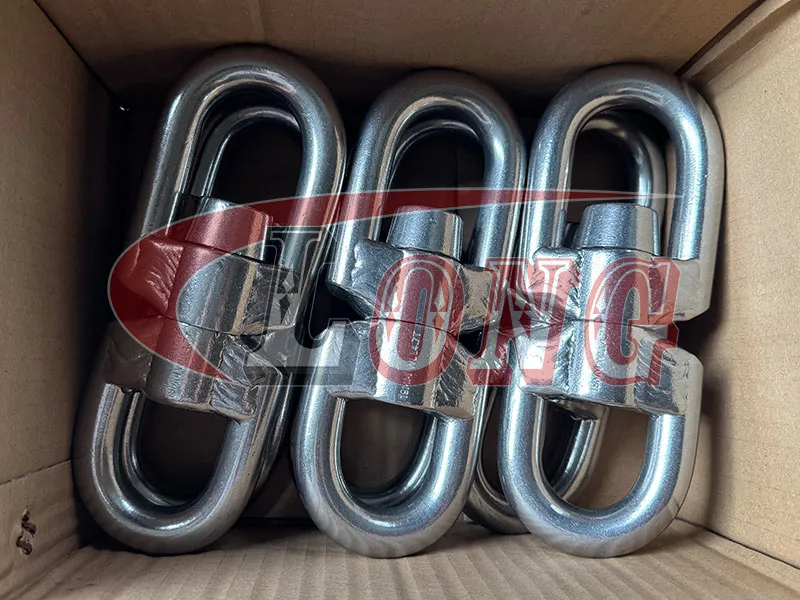

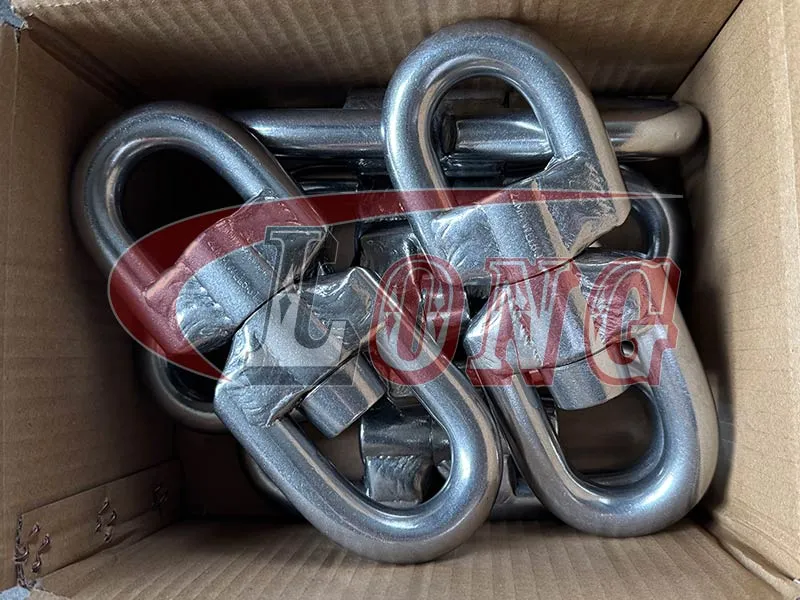

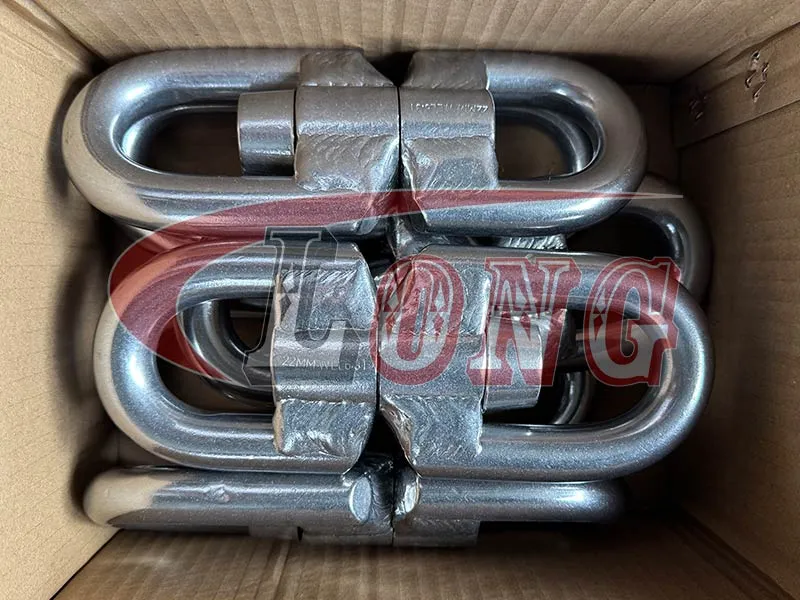

Bulk Photos of Stainless Steel Swivel dD Type Fishing & Trawling Gear-China LG™

stainless steel swivel dD type fishing  trawling gear lg rigging
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
