Name: Stainless Steel Welded Eye Bolt with Nut & Washer
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

 Lifting Eye Bolt DIN 580 UNC Thread Stainless Steel

 Lifting Eye Nut DIN 582 UNC Thread Stainless Steel

 Stainless Steel Long Shank Eye Bolt with Nut and Washer

 Lifting Eye Bolt DIN 580 Stainless Steel

 Lifting Eye Nut DIN 582 Stainless Steel

 Stainless Steel Eye Bolt JIS 1168 Standard

 Stainless Steel Lifting Eye Nut JIS 1169 UNC Thread

 Stainless Steel Lifting Eye Nut JIS 1169

 Stainless Steel Shoulder Eye Bolt UNC Thread with Nut and Washer

 Stainless Steel Forged Shoulder Nut Eye Bolt G-277

 Regular Nut Eye Bolts G-291 Stainless Steel-LG RIGGING®

 Shoulder Type Machinery Eye Bolt Stainless Steel G-279

 Stainless Steel Lag Eye Bolt

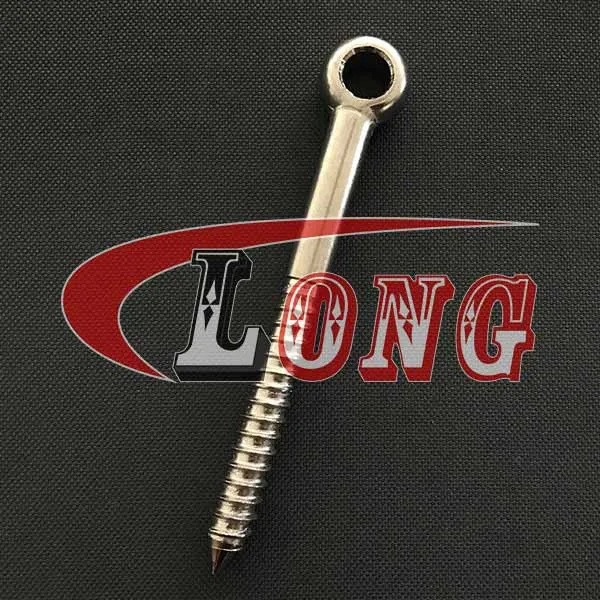

 Stainless Steel Lag Eye Screw

 Stainless Steel Eye Bolt Unwelded

 Stainless Steel Swing Eye Bolt UNC Thread

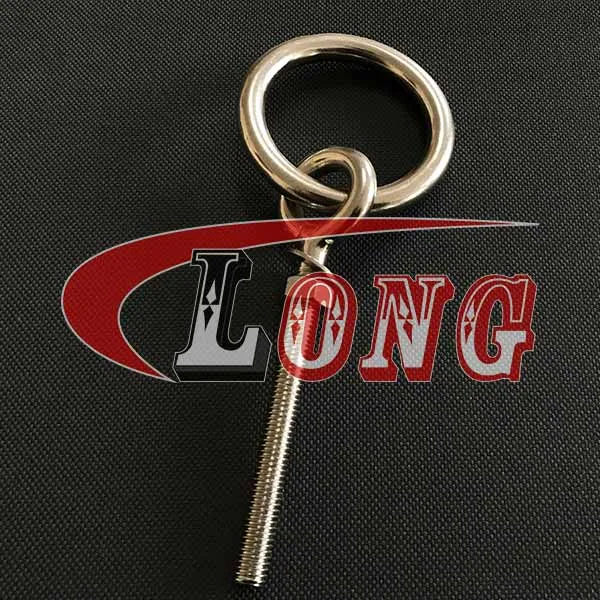

 Stainless Steel Ring Eye Bolt

 Stainless Steel Welded Eye Bolt with Nut & Washer

 DIN444 Eye Swing Bolts Stainless Steel

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainless Steel Welded Eye Bolt with Nut & Washer

Material	Stainless Steel 304 or 316 Welded Eye Bolt
Processing	Welded
Finish	High Polished and Electric Polished.
Size	M6, M8, M10, M12 welded eye bolt
Tips	Fitted with nut and washer.
Notes	Easy installed on to threaded fittings.

Specifications of Stainless Steel Welded Eye Bolt with Nut & Washer

Part No.	Size	A	B	C	D	SWL	BL
Part No.	Size	mm				kgs	kgs
LG-SS-WEB-01	M6*60	M6	13	35	60	250	1000
LG-SS-WEB-02	M6*80	M6	13	35	80	250	1000
LG-SS-WEB-03	M6*90	M6	13	35	90	250	1000
LG-SS-WEB-04	M6*100	M6	13	35	100	250	1000
LG-SS-WEB-05	M8*60	M8	16	45	60	450	1800
LG-SS-WEB-06	M8*80	M8	16	45	80	450	1800
LG-SS-WEB-07	M8*100	M8	16	45	100	450	1800
LG-SS-WEB-08	M8*110	M8	16	45	110	450	1800
LG-SS-WEB-09	M8*130	M8	16	45	130	450	1800
LG-SS-WEB-10	M10*80	M10	23	50	80	600	2400
LG-SS-WEB-11	M10*100	M10	23	50	100	600	2400
LG-SS-WEB-12	M10*130	M10	23	50	130	600	2400
LG-SS-WEB-13	M10*150	M10	23	50	150	600	2400
LG-SS-WEB-14	M10*200	M10	23	50	200	600	2400
LG-SS-WEB-15	M12*100	M12	25	60	100	875	3500
LG-SS-WEB-16	M12*150	M12	25	60	150	875	3500
LG-SS-WEB-17	M12*165	M12	25	60	165	875	3500
LG-SS-WEB-18	M12*185	M12	25	60	185	875	3500
LG-SS-WEB-19	M12*200	M12	25	60	200	875	3500
