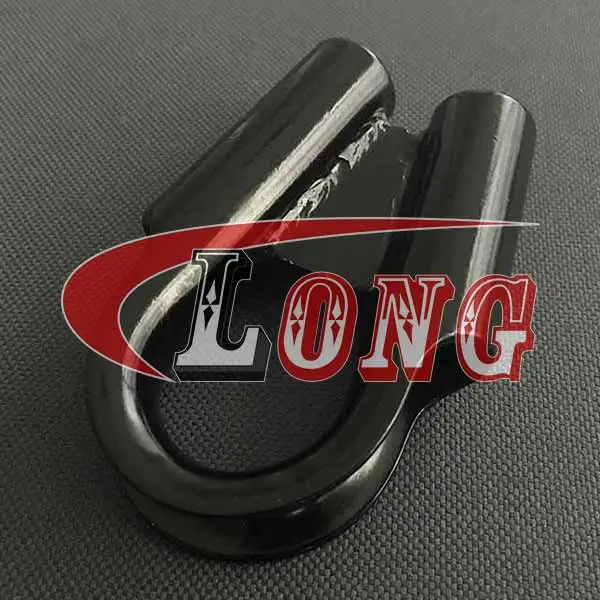

tubular thimble with gusset black
wire rope tube thimble with gusset galvanized

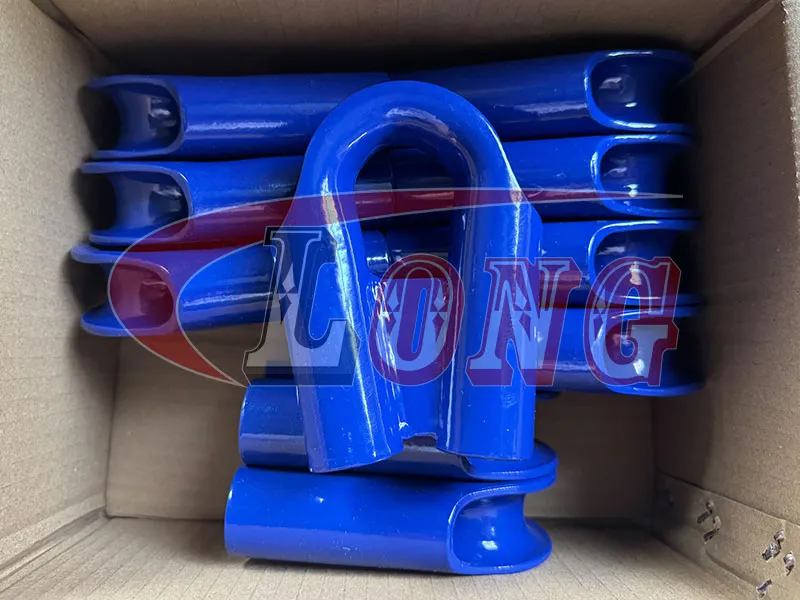

Tubular Thimble SCG Type-LG RIGGING®

This Tubular Thimble SCG Type is one type of wire rope thimble, made from superior mild steel.

Gusseted Tube Thimble is a perfect addition to increase the integrity of your winch line.

This pipe thimble is made out of super carbon steel, and gusseted for additional strength.

Our range of wire rope thimble is available in standard as well as customized sizes.

Trawling Gear
Shackles
Boat Fittings

Information of Tubular Thimble SCG Type-China LG™

Material

Superior Carbon Steel

Processing

Machining / Stamping

Finish

Zinc Plated, Hot Dip Galvanized, Powder Coated

Size-Wire

12-10mm, 15-12mm, 17-14mm, 19-16mm, 22-18mm, 25-22mm,


28-24mm, 30-26mm, 35-32mm, 45-38mm, 50-42mm, 55-48mm

Tips

Supplied in open finish or with welded gusset plate


Specifications of Information of Tubular Thimble SCG Type-China LG™

Specifications of Information of Tubular Thimble SCG Type-China LG™


Part No.

A


(mm)

B


(mm)

C


(mm)

D


(mm)

E


(mm)

F


(mm)

Weight


(kg)

Rope Diameter

LG-WRTTb-12

12

84

23

4

8

35

0.21

10

LG-WRTTb-15

15

95

27

5

10

49

0.4

12

LG-WRTTb-17

17

100

27

5

10

49

0.48

14

LG-WRTTb-18

19

112

32

5

12

43

0.6

16

LG-WRTTb-22

22

125

35

5

15

50

0.71

18

LG-WRTTb-25

25

150

45

6.3

16

59

1.21

22

LG-WRTTb-28

28

157

45

7

16

61

1.6

24

LG-WRTTb-30

30

170

47

7

18

78

1.91

26

LG-WRTTb-35

35

190

60

7

22

93

2.6

32

LG-WRTTb-45

45

228

70

7

27

94

3.5

38

LG-WRTTb-50

50

255

75

7

35

96

4.2

42


Wire rope thimbles are used in wire rope assemblies to keep an eye from being crushed.specifications-of-information-of-tubular-thimble-scg-type-china-lg™.jpgspecifications-of-information-of-tubular-thimble-scg-type-china-lg™.jpg
