Information of Wire Rope End Stop Steel S-409-China LG™

Material	Superior Mild Steel
Processing	Machining + Extruded
Finish	Electric Galvanized / Self-color
Size	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”

Specifications of Wire Rope End Stop Steel S-409-China LG™

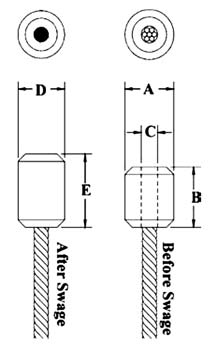

S-409 Steel Swage Button Specifications								Press/ Die Data
Part No.	Rope Size (in.)	Weight Per 100 Pcs. (lbs.)	Before Swage Dimensions			After Swage Dimensions		Die Desc.
			A	B	C	D	E
						Maximum After Swage Dimensions	Length*
LG-S-WRES-R-1/8	1/8″	2	0.44	0.5	0.14	0.4	0.61	1/8 – 1/4 Button
LG-S-WRES-R-3/16	3/16″	4	0.56	0.7	0.2	0.52	0.84	1/4 1st Stage
LG-S-WRES-R-1/4	1/4″	8	0.63	1.06	0.3	0.58	1.2	1/8 – 1/4 Button
LG-S-WRES-R-5/16	5/16″	16	0.88	1.13	0.36	0.77	1.33	3/8 1st Stage
LG-S-WRES-R-3/8	3/8″	15	0.88	1.48	0.42	0.77	1.69	3/8 1st Stage
LG-S-WRES-R-7/16	7/16″	30	1.13	1.63	0.48	1.03	1.94	1/2 1st Stage
LG-S-WRES-R-1/2	1/2″	50	1.31	1.89	0.55	1.16	2.17	5/8 Socket
LG-S-WRES-R-9/16	9/16″	70	1.44	2.02	0.61	1.29	2.41	9/16 -5/8 Button
LG-S-WRES-R-5/8	5/8″	100	1.56	2.42	0.67	1.42	2.89	3/4 Socket
LG-S-WRES-R-3/4	3/4″	131	1.69	2.73	0.79	1.55	3.25	3/4 1st Stage
LG-S-WRES-R-7/8	7/8″	220	2	3.27	0.94	1.8	3.86	7/8 1st Stage
LG-S-WRES-R-1	1	310	2.25	3.67	1.06	2.05	4.36	1 1st Stage
LG-S-WRES-R-1-1/8	1-1/8″	450	2.56	4.05	1.19	2.3	4.81	1-1/8 1st Stage
LG-S-WRES-R-1-1/4	1-1/4″	650	2.81	4.58	1.33	2.56	5.42	1-3/8 Socket

Metric Specification – Wire Rope End Stop Steel S-409

S-409 Steel Swage Button Specifications								Press/ Die Data
Part No.	Rope Size (in.)	Weight Per 100 Pcs. (lbs.)	Before Swage Dimensions			After Swage Dimensions		Die Desc.
			A	B	C	D	E
						Maximum After Swage Dimensions	Length*
LG-S-WRES-R-1/8	1/8″	2	0.44	0.5	0.14	0.4	0.61	1/8 – 1/4 Button
LG-S-WRES-R-3/16	3/16″	4	0.56	0.7	0.2	0.52	0.84	1/4 1st Stage
LG-S-WRES-R-1/4	1/4″	8	0.63	1.06	0.3	0.58	1.2	1/8 – 1/4 Button
LG-S-WRES-R-5/16	5/16″	16	0.88	1.13	0.36	0.77	1.33	3/8 1st Stage
LG-S-WRES-R-3/8	3/8″	15	0.88	1.48	0.42	0.77	1.69	3/8 1st Stage
LG-S-WRES-R-7/16	7/16″	30	1.13	1.63	0.48	1.03	1.94	1/2 1st Stage
LG-S-WRES-R-1/2	1/2″	50	1.31	1.89	0.55	1.16	2.17	5/8 Socket
LG-S-WRES-R-9/16	9/16″	70	1.44	2.02	0.61	1.29	2.41	9/16 -5/8 Button
LG-S-WRES-R-5/8	5/8″	100	1.56	2.42	0.67	1.42	2.89	3/4 Socket
LG-S-WRES-R-3/4	3/4″	131	1.69	2.73	0.79	1.55	3.25	3/4 1st Stage
LG-S-WRES-R-7/8	7/8″	220	2	3.27	0.94	1.8	3.86	7/8 1st Stage
LG-S-WRES-R-1	1	310	2.25	3.67	1.06	2.05	4.36	1 1st Stage
LG-S-WRES-R-1-1/8	1-1/8″	450	2.56	4.05	1.19	2.3	4.81	1-1/8 1st Stage
LG-S-WRES-R-1-1/4	1-1/4″	650	2.81	4.58	1.33	2.56	5.42	1-3/8 Socket
