Information of LGRIG® Wire Rope Ferrule Aluminium Oval Shape

Brand	LGRIG®
Material	Super Aluminium Material
Shape	Oval Shaped
Processing	Machining + Extruded
Size	1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″ 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-1/2″
Country of Origin	China

Specifications of LGRIG® Wire Rope Ferrule Aluminium Oval Shape

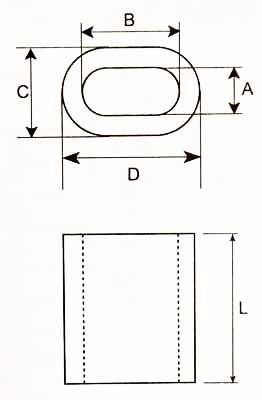

Part No.	Size	A(inch)	B(inch)	C(inch)	D(inch)	L(inch)	Weight
Part No.	Size	A(inch)	B(inch)	C(inch)	D(inch)	L(inch)	lbs/100pcs
LGALWRFO1/4	1/4″	19/64	19/32	17/32	27/32	1	2.3
LGALWRFO5/16	5/16″	3/8	3/4	21/32	11/32	1 17/84	4.3
LGALWRFO3/8	3/8″	7/16	27/32	3/4	15/32	13/8	5.3
LGALWRFO7/16	7/16″	1/2	1	29/32	1 13/32	1 23/32	11
LGALWRFO1/2	1/2″	19/32	1 11/64	11/32	15/8	1 15/16	16.5
LGALWRFO9/16	9/16″	23/32	13/8	17/32	1 57/64	27/32	22
LGALWRFO5/8	5/8″	3/4	11/2	13/8	23/32	2 1/2	32
LGALWRFO3/4	3/4″	53/64	1 11/16	11/2	23/8	27/8	52
LGALWRFO7/8	7/8″	61/64	17/8	1 11/16	25/8	3	67
LGALWRFO1	1″	13/32	27/32	1 31/32	33/32	33/4	125
LGALWRFO1-1/8	1 1/8″	19/32	29/16	25/16	3 19/32	49/32	172
LGALWRFO1-1/4	1 1/4″	1 13/32	2 25/32	21/2	37/8	47/16	214
LGALWRFO1-1/2	1 1/2″	1 21/32	3 19/64	31/8	43/4	5 35/64	390
