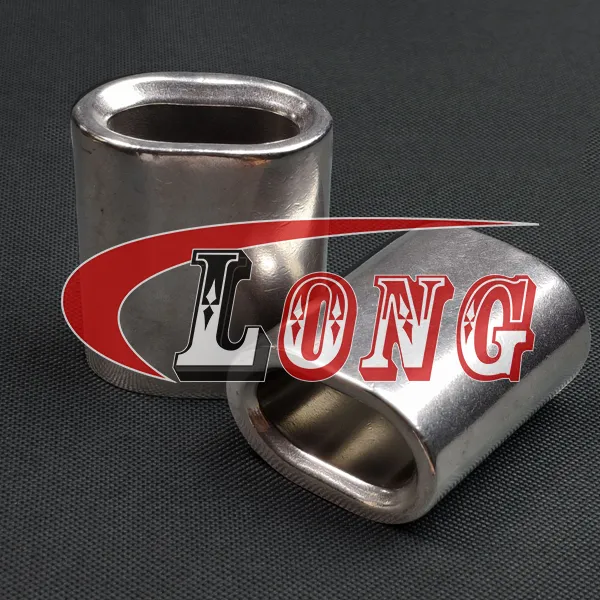

 LGRIG® Cable Ferrule Stainless Steel DIN 3093(EN 13411-3)

 LGRIG® Wire Rope Ferrule Aluminium Oval Shape

 LGRIG® Wire Rope Sleeve Double Barrel Ferrule

 LGRIG® Wire Rope Ferrule JIS Type

 LGRIG® Wire Rope Ferrule Form C DIN 3093

 LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules

 LGRIG® Copper Button Stop Round Ferrule

 LGRIG® Swage Sleeve Flemish Eye Steel S505

 LGRIG® Swage Duplex Sleeves Steel S-506

 LGRIG® Wire Rope End Stop Steel LGS-409

 Aluminium Stop Sleeve Button Stops LG RIGGING®

 Copper Ferrule Oval Type LG RIGGING®

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules

Brand	LGRIG®
Material	Super Copper
Processing	Machining + Extruded
Size	3/64″, 1/16″, 3/32″, 1/8″, 5/32″, 3/16″, 7/32″, 1/4″, 5/16″, 3/8″, 1/2″
Country of Origin	China

Specifications of LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules

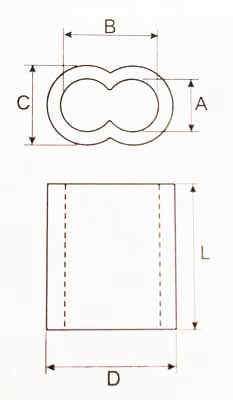

Part No.	Size	A	B	C	D	L	Weight
Part No.	(inch)						kgs/1000pcs
LGCWRFDB3/64	3/64″	1/16	1/8	9/64	13/64	3/8	1
LGCWRFDB1/16	1/16″	3/32	11/64	11/64	1/4	25/64	1.4
LGCWRFDB3/32	3/32″	7/64	1/4	15/64	3/8	29/64	4
LGCWRFDB1/8	1/8″	5/32	21/64	21/64	1/2	9/16	8
LGCWRFDB5/32	5/32″	3/16	27/64	3/8	19/32	5/8	12.3
LGCWRFDB3/16	3/16″	7/32	7/16	7/16	43/64	7/8	25
LGCWRFDB7/32	7/32″	1/4	33/64	15/32	23/32	7/8	32
LGCWRFDB1/4	1/4″	9/32	19/32	17/32	27/32	1 1/8	36
LGCWRFDB5/16	5/16″	3/8	23/32	21/32	1 1/64	1 1/8	64
LGCWRFDB3/8	3/8″	7/16	13/16	23/32	1 1/8	1 1/2	89
LGCWRFDB1/2	1/2″	19/32	1 7/64	31/32	1 15/32	1 7/8	270

LGRIG® provide you High Strength Forged & Welded Alloy Steel Master Link for use in grade 80 & grade 100 chain slings. Perfect for a wide variety of lifting applications.
