Information of Wire Rope Pulling hoist in Aluminium WPA Type–China LG™

Chassis	High strength 104 aluminum alloy
Shell surface treatment	Spray, standard for sand gray, color can be customized
jaw blocks	Using 40Cr Suitable hardness after quenching, That does not damage the wire rope and can ensure safety
Wire rope	Hot dip galvanized, Structure 6xl9W+IWR, The standard 20 meters, Strength 1770Mpa, length can be customized
Wire rope hook	Standard American eye hook, material 35CrMo, high tensile strength. Swivel hook or European hook can be used as required
Size	0.8Ton,1.6Ton,3.2Ton,5.4Ton wire rope winch
Safety Factor	5:1

Specifications of Wire Rope Pulling hoist in Aluminium WPA Type–China LG™

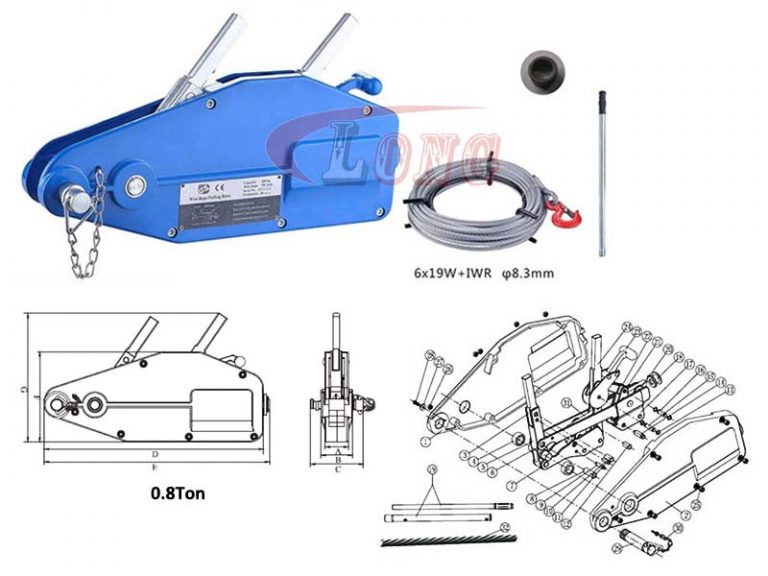

Size: 0.8 Ton wire rope pulling hoist

Part No.	Lifting Capacity (Rated Load)	Lever Pull at rated Load	Forward Travel	Wire Rope Diameter	safety factor	Pulling Capacity	Net Weight (Body)	Net Weight (20m Wire Rope)	Net Weight (Lever Handle)
LGWPA0.8T	800kg	332N	≥52mm	8.3mm	5	1200kg	6.4kg	7kg	1.2kg

Specifications of Wire Rope Pulling hoist in Aluminium WPA Type–China LG™

Part No.	Max overall size
	A	B	C	D	E	F	G
	mm
LGWPA0.8T	44	60	101	420	430	172	240

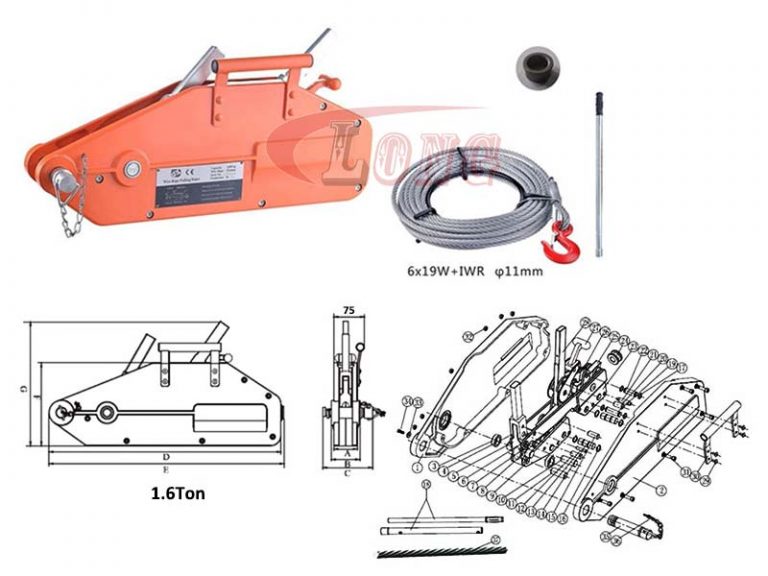

Size: 1.6 Ton wire rope puller

Part No.	Lifting Capacity (Rated Load)	Lever Pull at rated Load	Forward Travel	Wire Rope Diameter	safety factor	Pulling Capacity	Net Weight (Body)	Net Weight (20m Wire Rope)	Net Weight (Lever Handle)
LGWPA1.6T	1600kg	445N	≥55mm	11mm	5	2400kg	12.4kg	11.5kg	2.5kg

Part No.	Max overall size
	A	B	C	D	E	F	G
	mm
LGWPA1.6T	56	68	120	545	556	200	270

Specifications of Wire Rope Pulling hoist in Aluminium WPA Type–China LG™

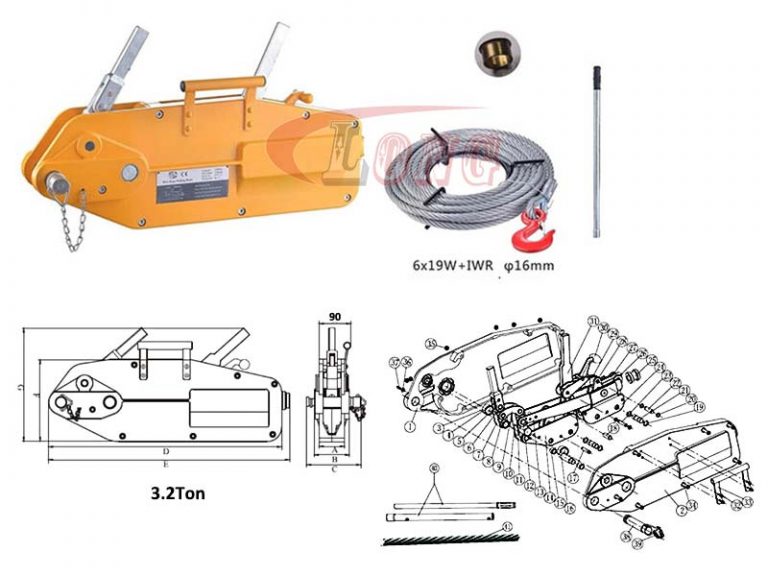

Size: 3.2 Ton wire rope pulling hoist

Part No.	Lifting Capacity (Rated Load)	Lever Pull at rated Load	Forward Travel	Wire Rope Diameter	safety factor	Pulling Capacity	Net Weight (Body)	Net Weight (20m Wire Rope)	Net Weight (Lever Handle)
LGWPA3.2T	3200kg	441N	≥28mm	16mm	5	4800kg	21.2kg	22.5kg	2.5kg

Part No.	Max overall size
	A	B	C	D	E	F	G
	mm
LGWPA3.2T	70	98	150	645	666	227	320

Specifications of Wire Rope Pulling hoist in Aluminium WPA Type–China LG™

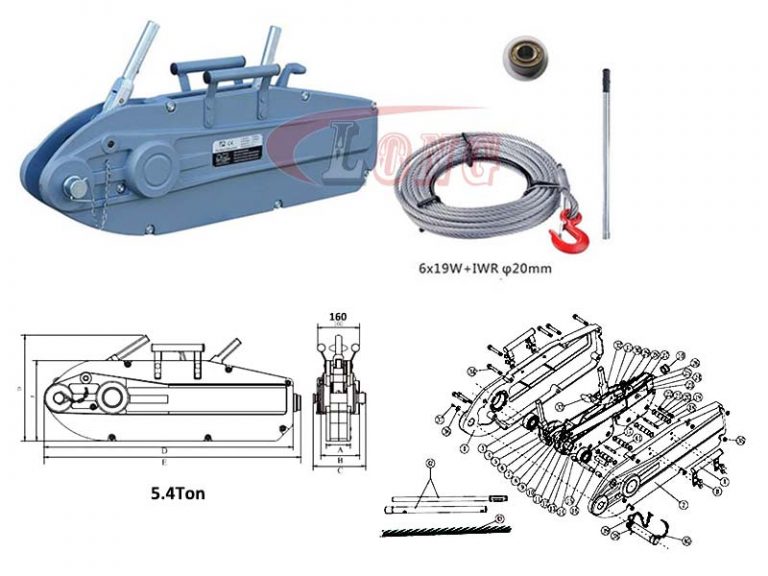

Size: 5.4 Ton manual cable puller

Part No.	Lifting Capacity (Rated Load)	Lever Pull at rated Load	Forward Travel	Wire Rope Diameter	safety factor	Pulling Capacity	Net Weight (Body)	Net Weight (20m Wire Rope)	Net Weight (Lever Handle)
LGWPA5.4T	5400kg	745N	≥30mm	20mm	5	8000kg	58kg	32.6kg	3.7kg
