Wire Rope Thimble European Commercial Type

Commercial Wire Rope Thimble also known as European type wire rope thimble, which are used in combination with wire rope clips, wire rope to make a secure wire loop.

European Type Wire Rope Thimble is a cheap and fine products. Our European commercial Type Wire Rope Thimble made of Mild steel.

European commercial thimble is used in wire rope assemblies to keep an eye from being crushed. Commercial Thimbles are recommended for light duty. Should not be used in lifting applications. Even with the zinc plate to help resist corrosion, these rope thimbles will be ideally suited for indoor or low-corrosive environments.

Trawling Gear
Shackles
Boat Fittings

Information of Wire Rope Thimble European Commercial Type

Technical Notes

European Type Commercial Thimble

Material

Superior Mild Steel

Finish

Electric Galvanized

Size

3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm

14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm

Note

NOT FOR LIFTING PURPOSES


Specifications of Wire Rope Thimble European Commercial Type

Specifications of Wire Rope Thimble European Commercial Type


Part No.

Diameter


Rope

Width


Groove

Length

Width

Length


Inside

Width


Inside

Weight/100

a

b

c

d

e

mm

kg

LG-E-CT-Tb-03

3

3

24

18

15

10

0.4

LG-E-CT-Tb-04

4

4

25

19

16

11

0.5

LG-E-CT-Tb-05

5

5

31

22

22

16

0.6

LG-E-CT-Tb-06

6

6

37

29

26

19

1.5

LG-E-CT-Tb-07

7

7

44

32

32

22

2

LG-E-CT-Tb-08

8

8

51

38

34

24

2.6

LG-E-CT-Tb-09

9

9

57

42

38

29

6.5

LG-E-CT-Tb-10

10

10

64

44

42

32

4.8

LG-E-CT-Tb-11

11

11

70

51

48

35

7.5

LG-E-CT-Tb-12

12

12

76

57

51

38

8.5

LG-E-CT-Tb-14

14

14

82

60

57

40

10

LG-E-CT-Tb-16

16

16

89

64

60

42

12.6

LG-E-CT-Tb-18

18

18

102

69

67

45

22

LG-E-CT-Tb-20

20

20

115

79

76

51

26.8

LG-E-CT-Tb-22

22

22

127

89

83

54

33

LG-E-CT-Tb-24

24

24

140

102

88

64

39.5

LG-E-CT-Tb-26

26

26

152

105

102

68

66

LG-E-CT-Tb-28

28

28

165

115

110

73

77

LG-E-CT-Tb-30

30

30

178

121

115

79

99

LG-E-CT-Tb-32

32

32

203

133

140

93

119


Wire rope thimbles are used in wire rope assemblies to keep an eye from being crushed.


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Request a Free Quote
Upload
or drag files here.

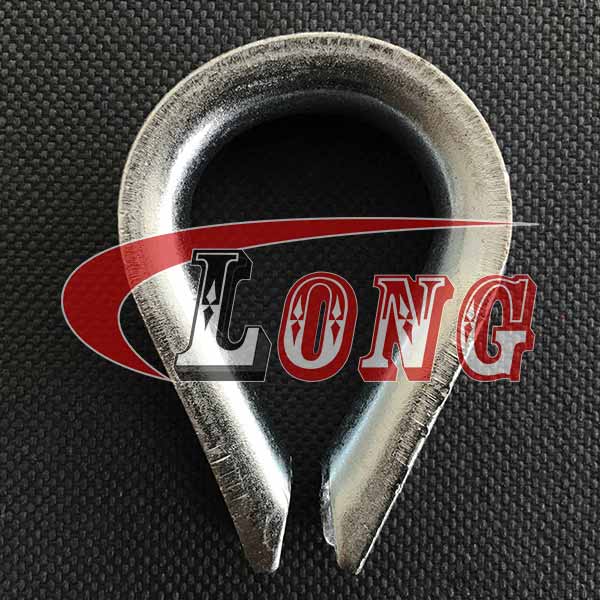

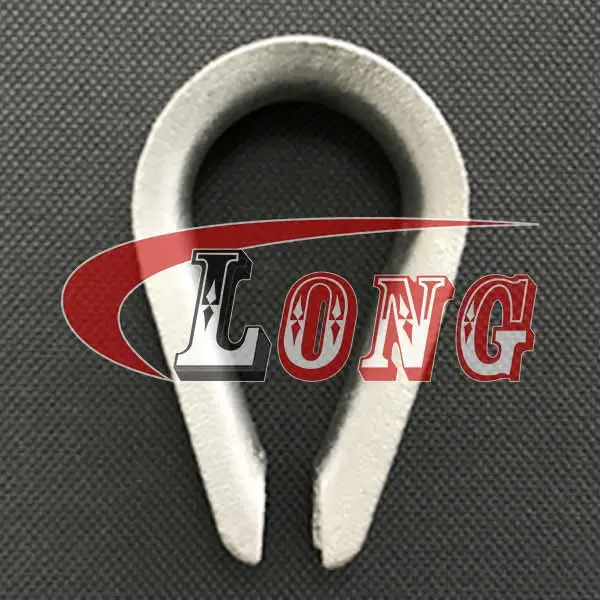

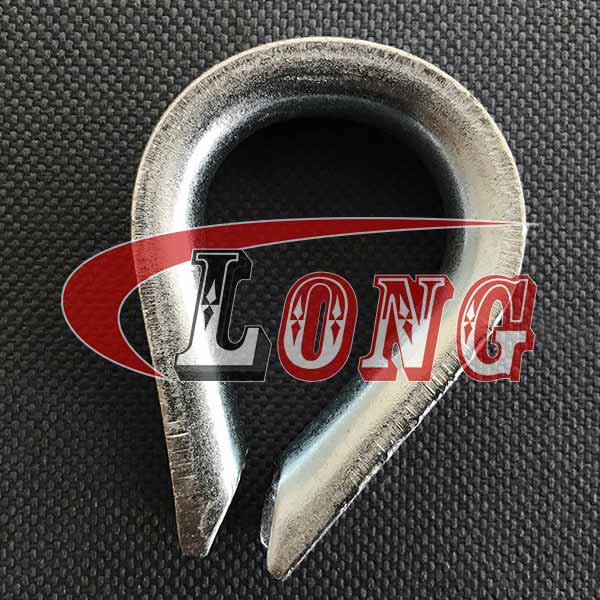

Related Wire Rope Thimbles
