Information of LGRIG® Four Leg Wire Rope Sling

Brand	LGRIG®
Standard	EN13414
Material	Super Mild Steel
Safety Factor	5:1
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm
Country of Origin	China

Specifications of LGRIG® Four Leg Wire Rope Sling

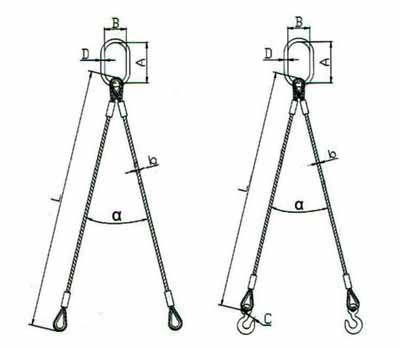

Part No.	Rope dia. (mm)	WLL(KN) α≤90o	WLL(KN) 90o≤α≤120o	Main Loop dimension AｘBｘD(mm)	Assistant Loop dimension AｘBｘD(mm)	Dimension of hook opening C(mm)
LG4LWRS06	6	6.10	4.40	110ｘ60ｘ14	85ｘ40ｘ12	24
LG4LWRS08	8	10.30	7.40	110ｘ60ｘ14	85ｘ40ｘ12	25
LG4LWRS10	10	16.60	11.90	110ｘ60ｘ14	85ｘ40ｘ12	27
LG4LWRS12	12	24.80	17.70	160ｘ90ｘ18	100ｘ60ｘ14	30
LG4LWRS14	14	33.00	23.60	160ｘ90ｘ20	100ｘ60ｘ14	38
LG4LWRS16	16	45.40	32.40	180ｘ100ｘ22	150ｘ70ｘ18	38
LG4LWRS18	18	55.70	39.80	180ｘ100ｘ22	150ｘ70ｘ18	45
LG4LWRS20	20	68.00	48.60	270ｘ140ｘ28	160ｘ90ｘ22	45
LG4LWRS24	24	102.90	73.50	270ｘ140ｘ32	180ｘ100ｘ25	61
LG4LWRS28	28	144.10	102.90	260ｘ140ｘ36	一	66
LG4LWRS32	32	185.40	132.50	340ｘ180ｘ45	一	87
LG4LWRS38	38	247.00	176.60	340ｘ180ｘ50	一	102
LG4LWRS40	40	278.00	199.00	340ｘ180ｘ50	一	102
LG4LWRS44	44	309.00	221.00	340ｘ180ｘ50	一	108
LG4LWRS52	52	450.00	324.00	430ｘ220ｘ63	一	121
LG4LWRS56	56	540.00	386.00	460ｘ250ｘ72	一	146

China LG Supply provide you High Strength Forged & Welded Alloy Steel Master Link for use in grade 80 & grade 100 chain slings. Perfect for a wide variety of lifting applications.
