Informations of LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL

Brand	LGRIG®
Material	Steel Plate
Standard	GBT554-2008 Type DL
Style	Marine Double Cross Bollard

Specifications of LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL

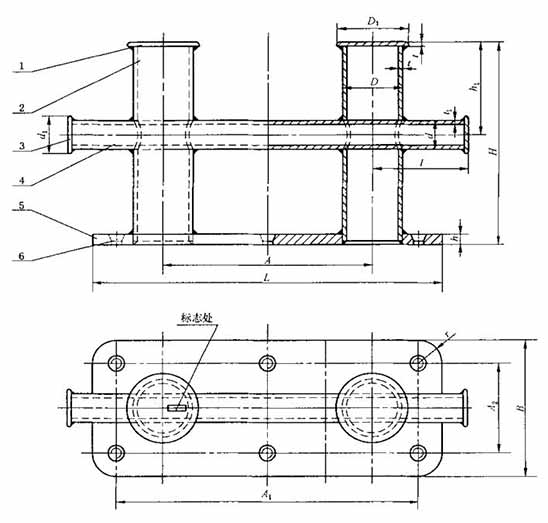

Part No.	Nominal Size (mm)	SWL (KN)	A	A1	A2	B	d	d1	D	D1	h
LGDCB554DL050	50	13	180	270	90	130	32	40	50	65	8
LGDCB554DL075	75	18	275	400	125	170	48	56	75	95	10
LGDCB554DL100	100	25	350	494	144	200	65	75	100	120	12
LGDCB554DL125	125	34	425	590	170	240	80	95	125	145	14
LGDCB554DL150	150	43	500	700	200	270	90	110	150	170	16
LGDCB554DL175	175	62	530	774	244	320	110	125	180	200	18

Part No.	Nominal Size	h1	H	L	r	t >=	t1 >=	Screw		Weight
Part No.	Nominal Size	h1	H	L	r	t >=	t1 >=	Dia.	Qty	(kg)
LGDCB554DL050	50	85	190	310	20	6	4	M12	6	7
LGDCB554DL075	75	130	290	450	25	7	5	M16	6	16
LGDCB554DL100	100	160	350	550	28	7	5	M18	6	27
LGDCB554DL125	125	195	425	660	35	9	7	M22	6	49
LGDCB554DL150	150	210	500	770	35	9	7	M22	6	71
LGDCB554DL175	175	240	550	850	38	10	8	M24	6	103
