Information of LGRIG® CVI Bollards

Brand	LGRIG®
Material	Casting Steel
Safe Working Load	10T-200T

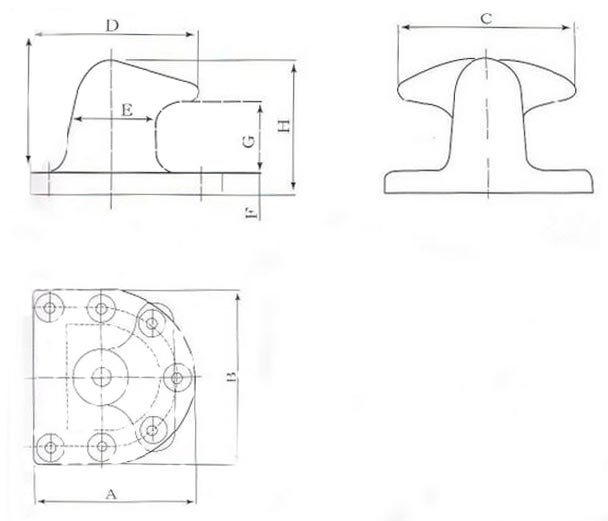

Specification of LGRIG® CVI Bollards

Part No.	Type	S.W.L. (T)	A	B	C	D	E	F	G	H
LGBCVI010	CVI-10	10	540	600	460	475	250	40	190	360
LGBCVI020	CVI-20	20	540	600	460	475	250	50	190	370
LGBCVI030	CVI-30	30	540	600	460	475	250	60	190	380
LGBCVI050	CVI-50	50	650	700	600	570	300	80	230	450
LGBCVI075	CVI-75	75	670	800	650	620	340	90	260	510
LGBCVI100	CVI-100	100	810	1000	750	710	381	100	300	560
LGBCVI150	CVI-150	150	810	1000	750	710	381	100	306	600
LGBCVI200	CVI-200	200	800	1080	800	700	430	110	396	600
