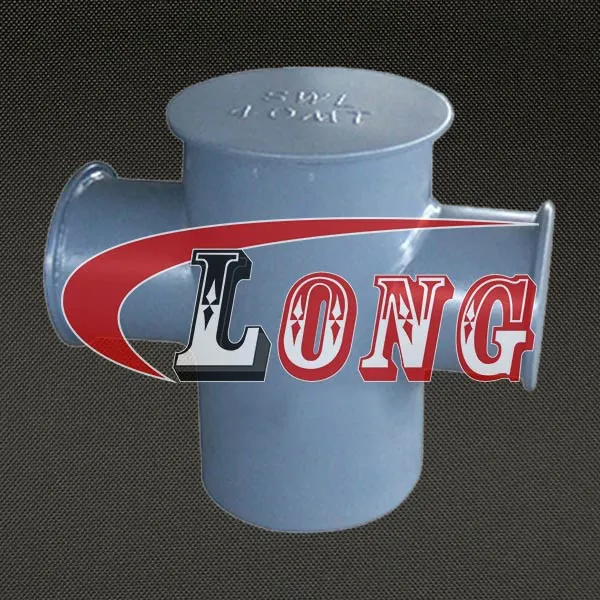

 LGRIG® Marine Single Cross Bollard GB 10106-88 Type A

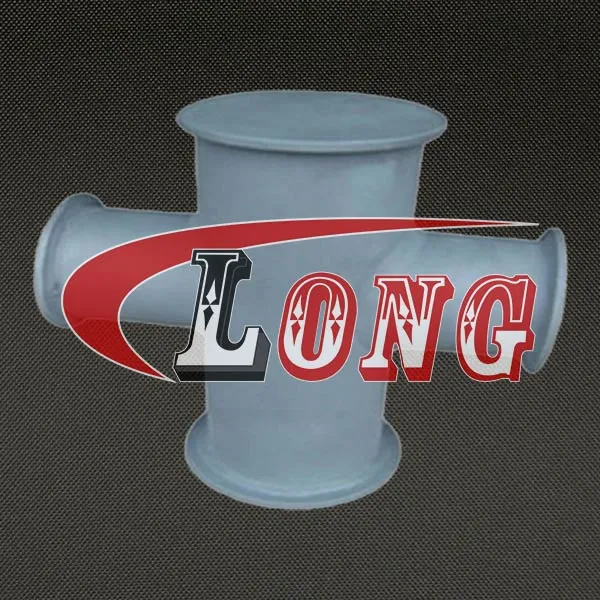

 LGRIG® Marine Single Cross Bollard GB 10106-88 Type B

 LGRIG® Marine Double Bollard GBT554-1996 Type A

 LGRIG® Marine Double Bollard GBT554-1996 Type B

 LGRIG® Marine Double Bollard GBT554-1996 Type C

 LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D

 LGRIG® Marine Double Cross Bollard GBT554-1996 Type E

 LGRIG® Marine Double Bollard GBT554-2008 Type A

 LGRIG® Marine Double Bollard GBT554-2008 Type B

 LGRIG® Marine Double Bollard GBT554-2008 Type C

 LGRIG® Marine Double Cross Bollard GBT554-2008 Type DH

 LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL

 LGRIG® Welded Inclined Bollard CBT 169-1999

 LGRIG® Marine Single Cross Bollard CBT3845-2013

 LGRIG® Marine Double Bollard DIN 82607-1995

 LGRIG® Marine Double Bollard JIS F2001-1995

 LGRIG® Marine Single Cross Bollard JIS F2804-1976

 LGRIG® Marine Double Bollard ISO 13795-2012 Type A

 LGRIG® Marine Double Bollard ISO 13795-2012 Type B

 LGRIG® Marine Double Bollard NS 2584

 LGRIG® Cast Iron Dock Bollards

 LGRIG® Curved Type Bollard

 LGRIG® CVI Bollards

 LGRIG® Dock Inclined Double Bitts Bollard

 LGRIG® J Type Dock Bollards

 LGRIG® K Head Dock Bollards

 LGRIG® R Type Dock Bollards

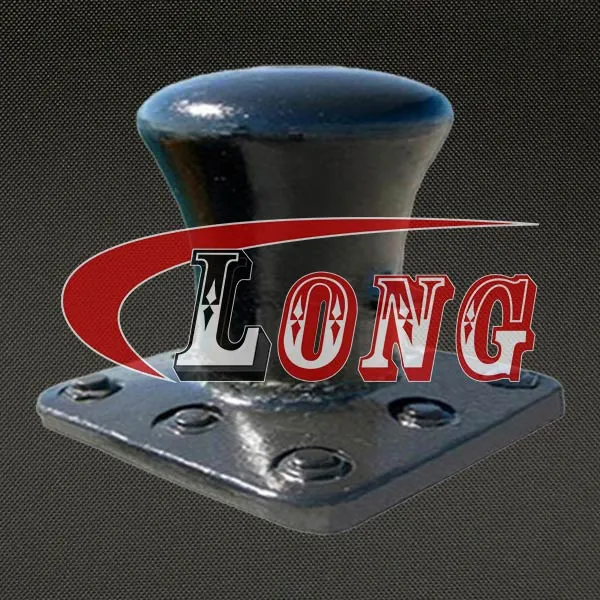

 LGRIG® Single Bitt Bollard

 LGRIG® Stag Horn Type Bollard

 LGRIG® T Head Dock Bollards

 LGRIG® Twin Horn Bollard

 LGRIG® Y Type Dock Bollards

 LGRIG® Marine Single Cross Bollard Stainless Steel DR Type

 LGRIG® Marine Single Cross Bollard Stainless Steel DS Type

 LGRIG® Stainless Steel Bow Roller RB Type

 LGRIG® Stainless Steel Rope Cleat

 LGRIG® Bow Roller Stainless Steel RS Type

Angle Bracket 

Rail Fittings 

Thru-Hull & Deck Fittings 

Stainless Latches 

Mooring Compensators / Springs 

Brake Lining 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Marine Single Cross Bollard JIS F2804-1976

Brand	LGRIG®
Material	Steel Plate
Standard	JIS F2804-1976
Style	Marine Single Cross Bollard

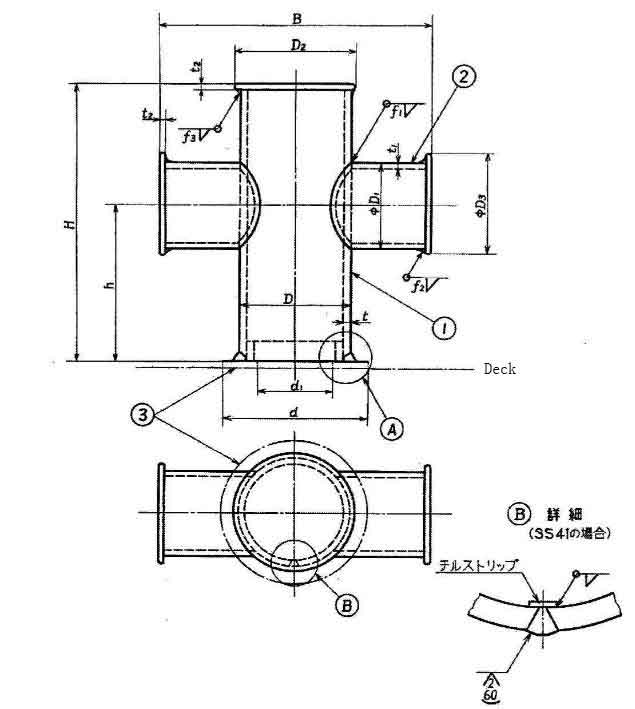

Specification of LGRIG® Marine Single Cross Bollard JIS F2804-1976


Part No.	Nominal Size (mm)	Material	H	h	B	D	D1	D2	D3	d	d1	t	t1	t2	t3	Weight (kg)
LGCBJIS76P150	150	P	480	280	460	165.2	114.3	206	158	240	120	11.0	8.6	8	8	33.0
LGCBJIS76S150	150	S	480	280	460	170	120	210	164	240	120	10	8	8	8	32.0
LGCBJIS76P200	200	P	560	320	520	216.3	165.2	256	206	280	140	12.7	11.0	10	10	60.4
LGCBJIS76S200	200	S	560	320	520	220	170	260	210	280	140	12	10	10	10	58.6
LGCBJIS76P250	250	P	640	360	610	267.4	216.3	308	256	340	170	15.1	12.7	12	12	102.9
LGCBJIS76S250	250	S	640	360	610	270	220	310	260	340	170	14	12	12	12	94.1
LGCBJIS76P300	300	P	680	360	660	318.5	267.4	360	308	400	200	17.4	15.1	14	14	154.0
LGCBJIS76S300	300	S	680	360	660	320	270	360	310	400	200	16	14	14	14	138.0
LGCBJIS76P350	350	P	720	420	720	355.6	267.4	400	312	440	240	19.0	15.1	14	14	186.3
LGCBJIS76S350	350	S	720	420	720	360	270	404	314	440	240	18	14	14	14	171.7

Main Material of JIS F2804-1976 Marine Single Cross Bollard:

No.	Part Name	Material
1	Pile	JIS G 3454 STPG 38/JIS G 3101 SS41
2	Horizontal Bar	JIS G 3454 STPG 38/JIS G 3101 SS41
3	Cover or Liner	JIS G 3101 SS41/JIS G 3106 SM 41
