Information of LGRIG® R Type Dock Bollards

Brand	LGRIG®
Material	Cast Steel

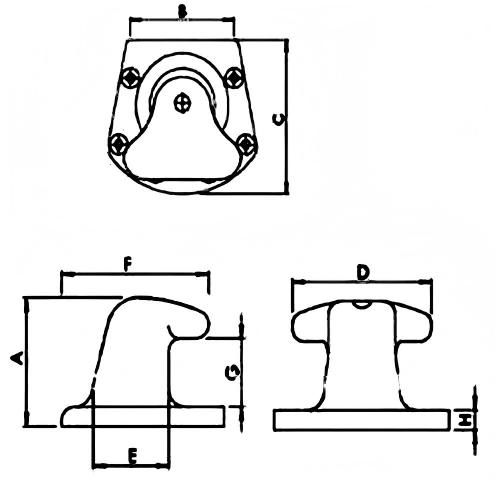

Specification of LGRIG® R Type Dock Bollards

Part No.	Bolts Quantity	Capacity (tonnes)	Dimensions(mm)
Part No.	Bolts Quantity	Capacity (tonnes)	A	B	C	D	E	F	G	H
LGBRT01	4	10	200	216	236	160	106	218	120	32
LGBRT02	4	25	245	350	305	250	150	285	127	45
LGBRT03	5	30	290	430	410	360	190	360	150	45
LGBRT04	5	50	365	550	540	430	250	475	200	50
LGBRT05	5	75	430	650	650	520	300	570	235	70
LGBRT06	5	80	415	518	540	430	250	430	245	55
LGBRT07	7	120	490	678	642	600	330	584	290	65
LGBRT08	7	200	520	950	780	680	360	670	306	80
LGBRT09	7	200	600	950	780	680	360	670	386	80
LGBRT10	6	200	656	1020	930	800	460	830	349	100
