Information of LGRIG® Grade 70 Clevis Grab Hook Alloy Steel

Brand	LGRIG®
Standard	Clevis Grab Hook conform to U.S. Federal Specification
Grade	Grade 70
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered

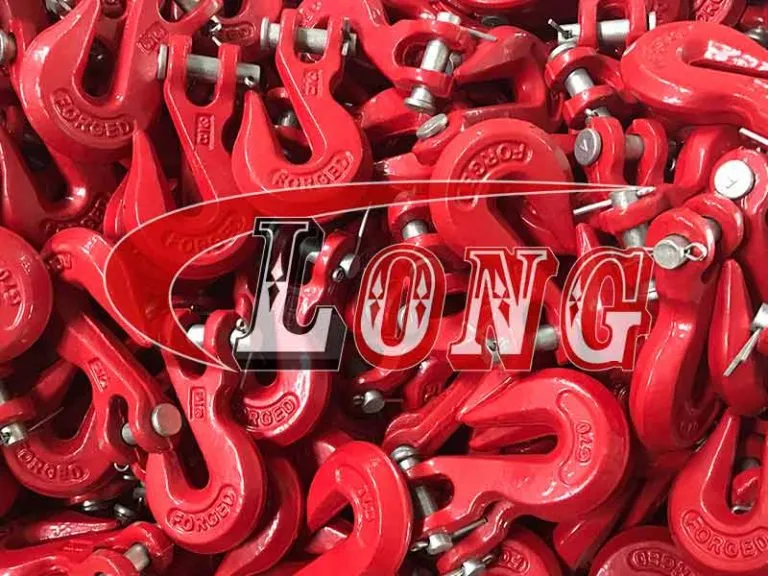

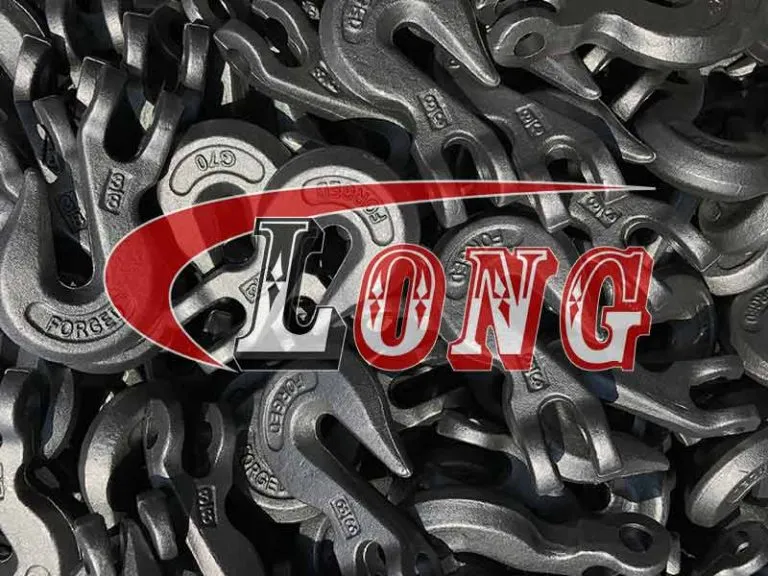

Finish	Powder Coated / Hot Dipped Galvanized / Zinc Plated / Self-Colored

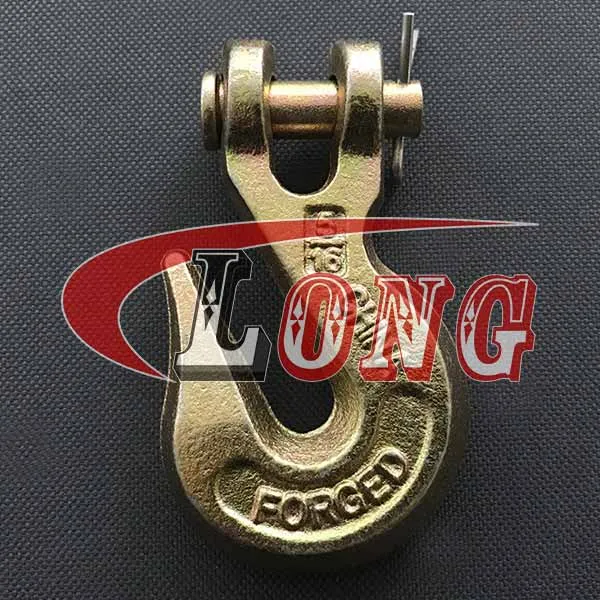

Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” clevis grab hook
Tips	Finish: Customized according to customers’ requirements
Country of Origin	China

Specifications of LGRIG® Grade 70 Clevis Grab Hook Alloy Steel


Part No.	Weight lbs	WLL(lbs)	A±0.5 (mm)	B±1 (mm)	E±0.5 (mm)	L±1 (mm)
Part No.	Weight lbs	G70	A±0.5 (mm)	B±1 (mm)	E±0.5 (mm)	L±1 (mm)
LG70CGH1/4	0.36	3150	8.5	25	9.2	78.5
LG70CGH5/16	0.62	4700	10	30.5	11	93
LG70CGH3/8	1.00	6600	13	35	12.7	114.5
LG70CGH7/16	1.5	8750	17	42	14.5	126
LG70CGH1/2	2.22	11300	19	47	17	144
LG70CGH5/8	4.41	15800	23	56	20	177
LG70CGH3/4	6.50	24700	24	66.5	24	207.5
