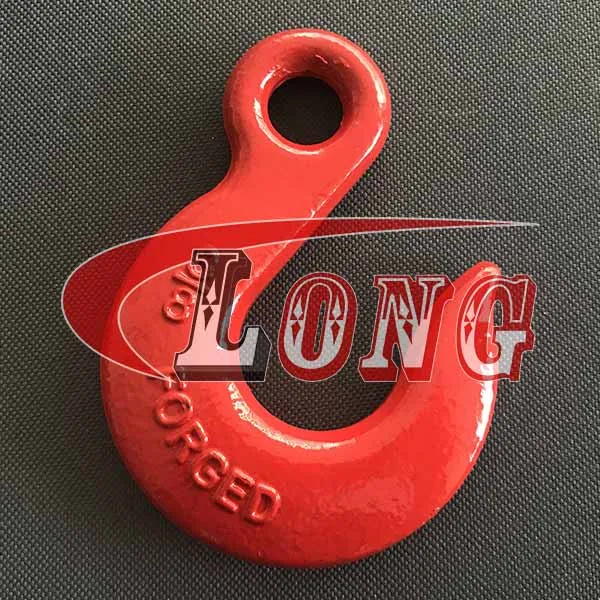

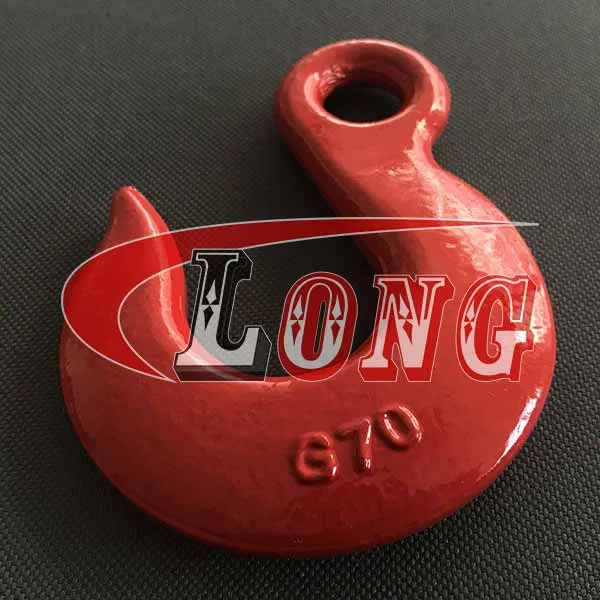

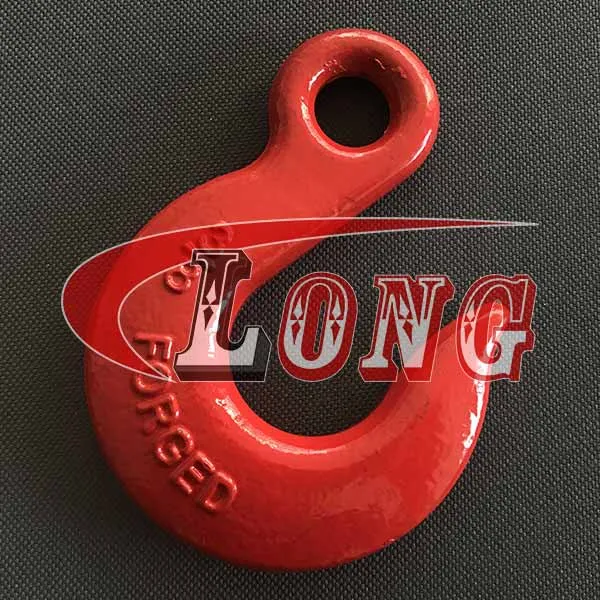

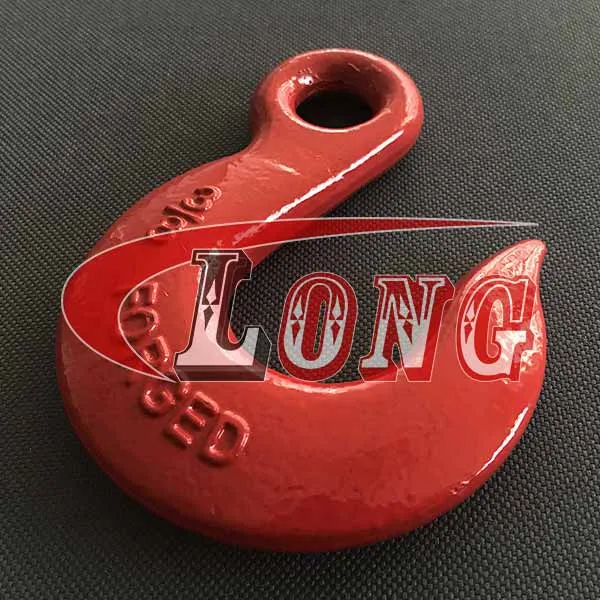

Name: Alloy Steel Eye Slip Hook Grade 70
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

 Grade 70 Weld-on Grab Hooks

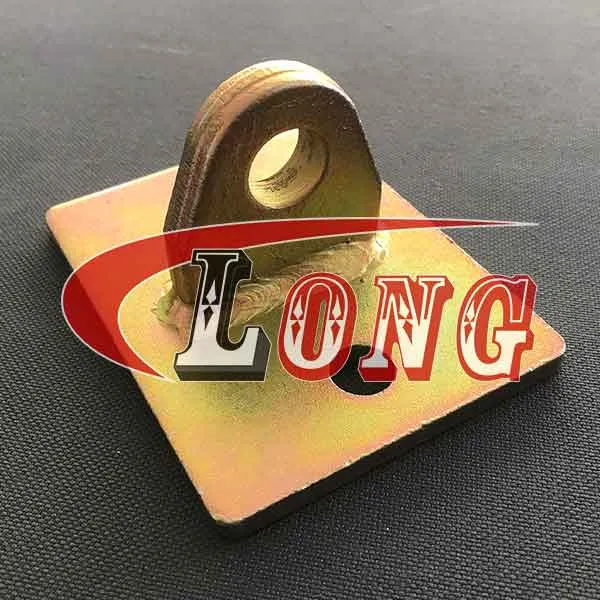

 Bolt-on Clevis Mounts with Hardware

 Bolt-on Grab Hooks with Hardware

 Clevis Grab Hook Grade 43 High Test

 Alloy Steel Clevis Grab Hook Grade 70

 Clevis Slip Hook Grade 43 High Test

 Clevis Slip Hook Grade 70 Alloy Steel

 Clevis Slip Hook with Latch Grade 43 High Test

 Alloy Steel Clevis Slip Hook with Latch Grade 70

 High Test Eye Grab Hook Grade 43

 Alloy Eye Grab Hook Grade 70

 High Test Eye Slip Hook Grade 43

 Alloy Steel Eye Slip Hook Grade 70

 Eye Slip Hook with Latch Grade 43 High Test

 Grade 70 Eye Slip Hook with Latch

 Eye Hoist Hook with Latch Carbon Steel Grade 43

 Eye Hoist Hook with Latch Alloy Grade 70

 Swivel Eye Hoist Hook Grade 43

 Swivel Lifting Hook with Latch Grade 70

 Shank Hooks with Latch, Carbon Steel

 Alloy Shank Hook with Latch

 Clevis Winged Grab Hook Grade 70 Australia Standard

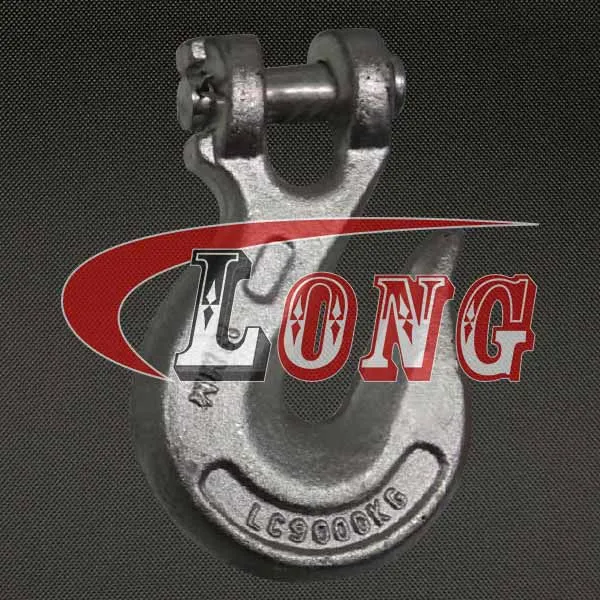

 Clevis Grab Hook No Wing Grade 70, Australia Standard

 Clevis Slip Hook Grade 70 Australia Standard

 Clevis Claw Hook Grade 70, Australia Standard

 Lifting Eye Hook with Latch DIN689

 Winch Hook w/ Latch Carbon Steel 3.5T

 Forged Eye Snap Hook with Safety Latch

 Clevis Grab Hook with Spring Latch Grade 43

 Clevis Grab Hook with Spring Latch Grade 70

 Forged Alloy Clevis Bend Hook

 Forged Alloy Eye Bend Hook, Type A

 Forged Round Reverse Eye Hook, G1210

 Eye Twist Hook/Reverse Eye Hooks

 Forged Eye Grab Hook with Triangle Ring

 RTJ Cluster Hook Assembly with 3 Hook Cluster

 TMS Horizontal Clamp with Locking Device

 PDQ Single Steel Plate Clamp

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Alloy Steel Eye Slip Hook Grade 70

Technical Notes	U.S. Federal Specification
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”
Tips	Finish: Customized according to customers’ requirements

Specifications of Alloy Steel Eye Slip Hook Grade 70

Part No.	Weight lbs	WLL(lbs)	D±0.3 (mm)	R±1 (mm)	L±1 (mm)	M±1.2 (mm)	E±1 (mm)
Part No.	Weight lbs	G70	D±0.3 (mm)	R±1 (mm)	L±1 (mm)	M±1.2 (mm)	E±1 (mm)
LG-70-ESH-1/4	0.40	2750	12.7	65	92	68.5	23
LG-70-ESH-5/16	0.64	4300	16	72.5	106	76	26
LG-70-ESH-3/8	1.11	5250	18	86.5	124	89.5	33
LG-70-ESH-7/16	1.56	7000	20.5	98.5	142	108	40
LG-70-ESH-1/2	2.10	9000	23	109.5	156	116.5	43
LG-70-ESH-5/8	3.90	13500	28.8	132.5	195	143	52
LG-70-ESH-3/4	6.93	19250	35	147.5	222	169	55
