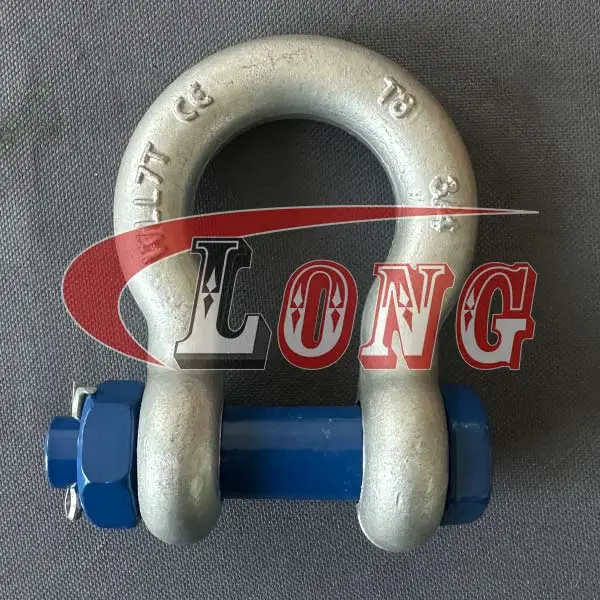

 LGRIG® Grade 8 Alloy Bolt Type Anchor Shackle

 LGRIG® Grade 8 Alloy Bolt Type Chain Shackle

 LGRIG® Wide Body Sling Shackle Safety Pin Forged Alloy Steel

 LGRIG® Grade 80 Alloy Screw Pin Anchor Shackle

 LGRIG® Grade 8 Alloy Screw Pin Chain Shackle

 LGRIG® B.S.3032 Small Bow Shackle with Screw Collar Pin

 LGRIG® BS3032 Small Dee Shackle with Type A Screw Collar Pin

 LGRIG® B.S.3032 Large Bow Shackle with Screw Collar Pin

 LGRIG® BS3032 Large Dee Shackle with Type A Screw Collar Pin

 LGRIG® Shackles Similar to Din 82101 Form A/B/C Galvanised

 LGRIG® Italy Type Galvanized Bow Shackle Screw Pin

 LGRIG® Galvanized Dee Shackles Italy Type

 LGRIG® Round Pin Anchor Shackle U.S. Type

 LGRIG® Round Pin Chain Shackle US Type

 LGRIG® Piling Shackle Long D Shackle

 Trawling Shackle D Type Blue Painted Square Head Pin of Lifting & Rigging Shackles

 Trawling Shackle Bow Type Square Head Pin Blue Painted of Lifting & Rigging Shackles

 Bow Shackle Square Head Pin High Tensile of Lifting & Rigging Shackles

 Dee Shackle Square Head Pin for Lifting and Rigging Shackles

 Bow Shackle Sunken Head of Lifting & Rigging Shackles

 Dee Shackle Sunken Head of Lifting & Rigging Shackles

 LGRIG® G80 Unilock Shackle Connecting Link

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® BS3032 Large Dee Shackle with Type A Screw Collar Pin

Brand	LGRIG®
Standard	Large Dee shackle conforms to B.S. 3032 table 2 - 1958
Pin Type	Type A Screw Collar Pin
Shackle Type	Large Dee Shackle
Materila	Carbon Steel
Processing	Forged / Quenched and Tempered
Finish	Hot Dip Galvanized, Zinc Plated or Self Colored
Size	3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″
Notes	Working Load Limit Permanently Shown on Every Shackle.
Typical Applications	a.General lifting in off-shore applications. b.General lifting and tethering in leisure marine applications. c.General lifting purposes.

Specifications of LGRIG® BS3032 Large Dee Shackle with Type A Screw Collar Pin

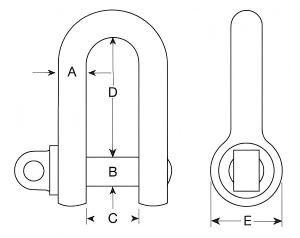

Part No.	A	B	C	D	E	Weight	SWL
Part No.	Inches	Inches	Inches	Inches	Inches	Kgs/Each	Tonns
LGBS3032LD01	1/4″	3/8″	1/2″	1	3/4″	0.1	0.25
LGBS3032LD02	3/8″	1/2″	3/4″	1 1/2	1	0.12	0.50
LGBS3032LD03	1/2″	5/8″	1 1/8	2 1/8	1 1/4	0.29	0.75
LGBS3032LD04	5/8″	3/4″	1 1/4	2 1/2	1 1/2	0.57	1.50
LGBS3032LD05	3/4″	7/8″	1 1/2	2 7/8	1 3/4	0.92	2.00
LGBS3032LD06	7/8″	1	1 3/4	3 1/4	2	1.59	3.00
LGBS3032LD07	1	1 1/8	2	3 3/4	2 1/4	2.12	3.75
LGBS3032LD08	1 1/8	1 1/4	2 1/8	4 1/8	2 1/2	3.18	5.00
LGBS3032LD09	1 1/4	1 3/8	2 3/8	4 1/2	2 3/4	4.54	6.00
LGBS3032LD10	1 3/8	1 1/2	2 5/8	5	3	6.06	7.00
LGBS3032LD11	1 1/2	1 3/4	2 3/4	5 3/8	3 1/2	8.74	9.50
