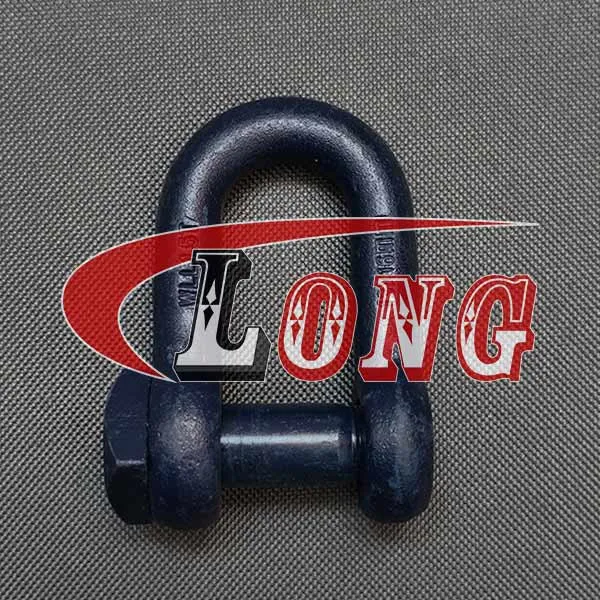

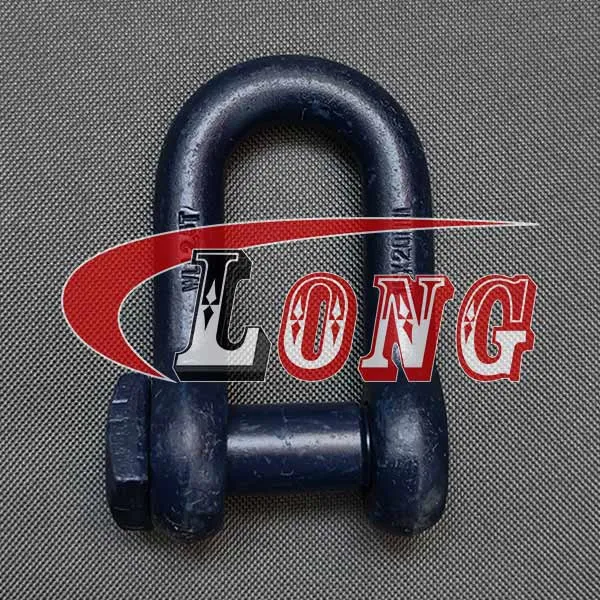

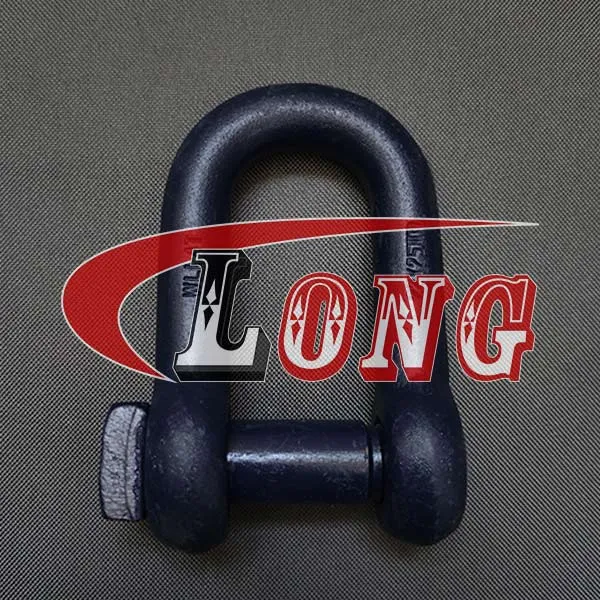

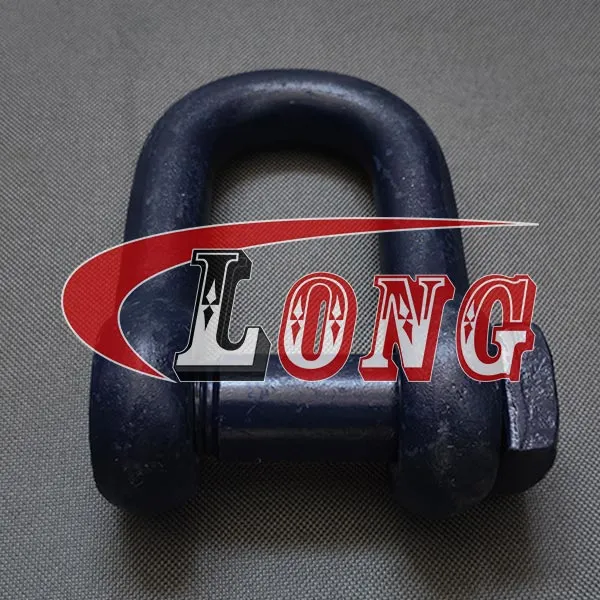

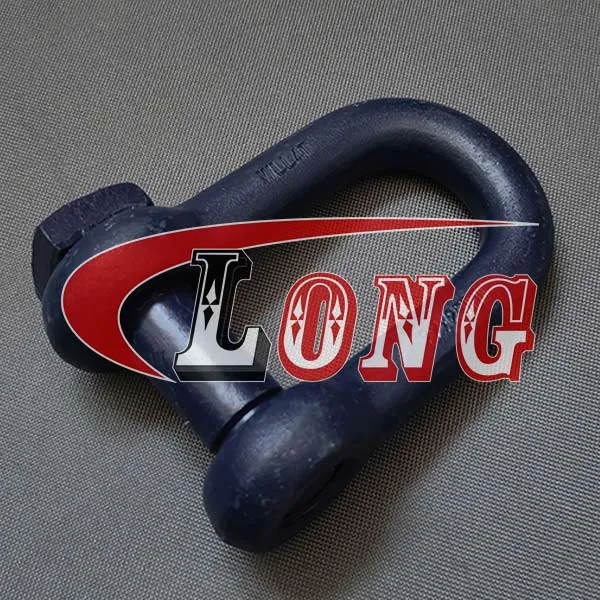

Name: LGRIG® Blue Painted Steel Shackle Dee Trawler Square Head Pin
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

Trawling Shackle 

 Trawling Shackle V Type Square Head Pin Blue Painted LG RIGGING®

 LGRIG® Blue Painted Bow Shackle Trawler Square Head Pin

 LGRIG® Blue Painted Steel Shackle Dee Trawler Square Head Pin

 Trawling Shackle Bow Type Square Head Pin Blue Painted LG RIGGING®

 Trawling Shackle Dee Type Blue Painted Square Head Pin Blue Painted LG RIGGING®

 Stainless Steel Bow Shackle Square Head Pin European Type for Trawling LG RIGGING®

 Stainless Steel D Shackle Square Head Pin European Type for Trawling LG RIGGING®

 Bow Shackle Stainless Steel Screw Pin European Type for Trawling LG RIGGING®

 Stainless Steel D Shackle Screw Pin European Type for Trawling LG RIGGING®

 High Tensile Shackles Bow Type Square Head Pin Blue Pin for Trawling LG RIGGING®

 High Tensile Shackles Dee Type Square Head Pin Blue Pin for Trawling LG RIGGING®

 Screw Pin Anchor Shackle G-209 U.S. Type for Trawling

 Screw Pin Chain Shackle G-210 High Tensile U.S. Type for Trawling

 Bolt Type Anchor Shackle G-2130 U.S. Type for Trawling

 Bolt Type Chain Shackle G-2150 U.S. Type for Trawling

 LG Mooring Shackle No 852 Bolt Type Pin for Trawling Gear LG RIGGING®

 Trawling Shackle Dee Type Square Head Pin Self-colored LG RIGGING®

 Trawling Shackle Dee Type Square Head Pin Yellow Pin LG RIGGING®

 Bow Shackle Square Sunken Hole Pin High Tensile for Trawling LG RIGGING®

 Dee Shackle Square Sunken Hole Pin High Tensile for Trawling LG RIGGING®

 Stainless Steel Dee Shackle with Hex Socket Pin LG RIGGING®

 Stainless Steel Dee Shackle Countersunk Flush Pin LG RIGGING®

 Stainless Steel Bow Shackle with Captive Pin Square Head Pin LG RIGGING®

 Stainless Steel Dee Shackle with Captive Pin Square Head Pin LG RIGGING®

 Stainless Steel Eye Swivel Snap Shackle for Sailboat for Trawling Gear LG RIGGING®

 Stainless Steel Jaw Swivel Snap Shackle for Sailboat for Trawling Gear LG RIGGING®

 Stainless Steel Fixed Bail Snap Shackle for Trawling Gear LG RIGGING®

 Stainless Steel Speedlink HR Trigger Snap Shackle Universal Eye for Trawl

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Informations of LGRIG® Blue Painted Steel Shackle Dee Trawler Square Head Pin

Brand	LGRIG®
Material	Super Mild Steel
Processing	Forged
Finish	Blue Painted
Shackle shape	Dee Shackle
Pin	Square Head Pin
Size (mm)	10x12mm, 13×16mm, 16×20mm, 20×22mm, 22×25mm, 25×28mm, 28x32mm, 32x36mm, 36x38mm,
Size(inch)	3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8"
Safety Factor	MBL equals 5 × WLL
Application	for Trawl
Tips	Special specification and marks can be made according to customers' requirements.

Specifications of LGRIG® Blue Painted Steel Shackle Dee Trawler Square Head Pin

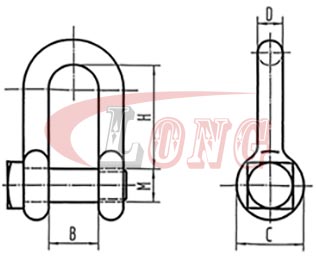

Part No.	SIZE D*d	SIZE inch	B	H	C	M	WLL
LGFKB10DB	10mm*12mm	3/8"	20	38	24	M12	-
LGFKB13DB	13mm*16mm	1/2"	25	48	32	M16	1.5Ton
LGFKB16DB	16mm*20mm	5/8"	32	64	40	M20	2.5Ton
LGFKB20DB	20mm*22mm	3/4"	38	75	48	M22	3Ton
LGFKB22DB	22mm*25mm	7/8"	44	83	53	M24	4Ton
LGFKB25DB	25mm*28mm	1"	51	100	60	M27	5Ton
LGFKB28DB	28mm*32mm	1-1/8"	56	104	67	M33	-
LGFKB32DB	32mm*36mm	1-1/4"	64	120	71	M36	-
LGFKB36DB	36mm*38mm	1-3/8"	70	131	76	M39	-
