Information of Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

Technical Notes	Generally to B.S. 3974 – Part 1 – 1974
Material	High Tensile Steel
Processing	Drop Forged
Finish	Self colour, Electro-Galvanised upon request
Size	M8, M10, M12, M16, M18, M20, M22, M24, M30, M36 and M42
Tips	Alternative thread forms available.

Specifications of Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

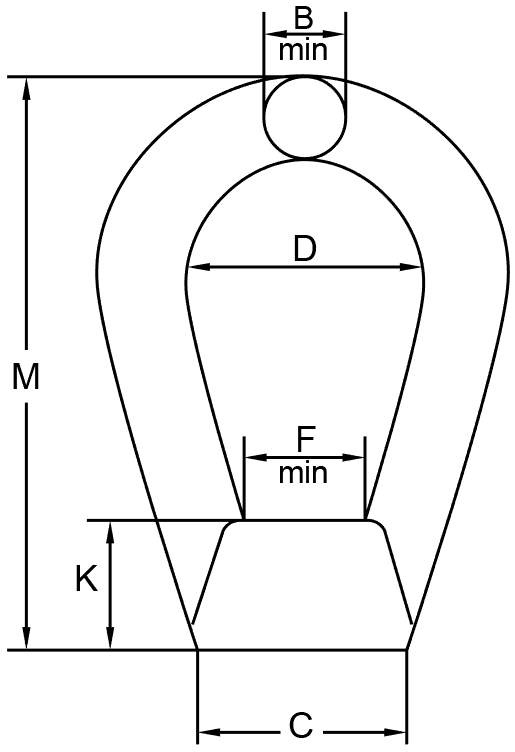

Part No.	Thread Size	B (min) (mm)	C (mm)	F (min) (mm)	K (mm)	M (mm)	D (mm)	SWL	Weight Each (kg)
LGBS3974EN8	M8	6	32	12	16	64	25	230kg	0.2
LGBS3974EN10	M10	7	32	14	16	64	25	360kg	0.2
LGBS3974EN12	M12	9	38	16	18	73	30	530kg	0.3
LGBS3974EN14	M14	9	38	16	18	73	30	600kg	0.3
LGBS3974EN16	M16	12	38	20	18	73	30	1010kg	0.3
LGBS3974EN18	M18	14	45	24	25	102	40	1000kg	0.6
LGBS3974EN20	M20	14	45	24	25	102	40	1580kg	0.6
LGBS3974EN22	M22	14	45	24	25	102	40	1600kg	0.6
LGBS3974EN24	M24	17	50	28	28	124	50	2280kg	0.9
LGBS3974EN30	M30	21	70	34	38	146	75	3650kg	2.4
LGBS3974EN36	M36	26	70	40	38	146	75	5340kg	2.4
LGBS3974EN42	M42	30	80	46	45	180	100	7400kg	4

Warning:

For safety NEVER exceed the S.W.L (Safe Working Load)
Ensure that the eyebolt and threads are compatible and strong enough for the load.
Never use tommy bars, grips or wrenches to tighten eyebolts.
Never use a single eyebolt to lift a load that is free to rotate.

More Eye Bolts & Eye Nuts are available, Pls Click Here.
