Cast Zinc Eye & Eye Turnbuckle

Cast Zinc Hook & Eye Turnbuckle, also known as zinc alloy die cast turnbuckle hook and eye, hook & hook, eye & eye is in the same way.

The following die cast turnbuckles have zinc alloy bodies with steel hooks and eyes which will not rust or freeze to fittings.

Mini turnbuckle Hook and eye die cast, manufactured using superior grade raw material alloy steel as per international qualitative standards.

Manufactured from cast steel in zinc plated finish.

Our range of zinc alloy turnbuckles is available in standard as well as customized sharps and sizes.

Used in conjunction with Wire Rope assemblies etc for light duty tensioning applications.

Hook and eye end fittings for intended applications.

Available Size: 1/4″x2-1/8″, 5/16″x2-5/8″, 3/8″x3″, 5/32″x1-3/8″, 3/16″x1-5/8″, 7/32″x1-7/8″.

Trawling Gear
Shackles
Boat Fittings

Information of Cast Zinc Eye & Eye Turnbuckle

Material

Superior zinc alloy

Processing

Die casting

Finish

Zinc plated

Size

1/4″x2-1/8″, 5/16″x2-5/8″, 3/8″x3″, 5/32″x1-3/8″, 3/16″x1-5/8″, 7/32″x1-7/8″

Tips

Hook and eye end fittings for intended applications.

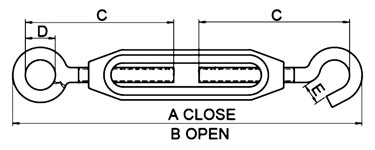

Specifications of Cast Zinc Eye & Eye Turnbuckle

Specifications of Cast Zinc Eye & Eye Turnbuckle


Part No.

Size

Overall


Length

Closed

Overall


Length

Open

Take Up

Eye I.D.

Hook


Radius

g/pc

LGCZTBHE02-5/32″

5/32″

3-3/8″

4-3/4″

1-3/8″

1/4″

1/4″

18

LGCZTBHE02-3/16″

3/16″

3-7/8″

5-1/2″

1-5/8″

5/16″

5/16″

26.5

LGCZTBHE02-7/32″

7/32″

4-3/8″

6-1/4″

1-7/8″

3/8″

3/8″

48

LGCZTBHE02-1/4″

1/4″

5-1/2″

7-3/4″

2-1/8″

3/8″

3/8″

61

LGCZTBHE02-5/16″

5/16″

6-3/4″

9-3/8″

2-5/8″

7/16″

7/16″

105

LGCZTBHE02-3/8″

3/8″

7-3/4″

10-1/2″

3″

1/2″

1/2″

171


China LG Supply offers a wide variety of fittings and assemblies in wire rope turnbuckles.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
