Information of LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type

Brand	LGRIG®
Material	Superior Zinc Alloy
Processing	Die Cast
Finish	Zinc Plated
End Fittings	Hook and Hook
Size	1/4″x2-1/8″, 5/16″x2-5/8″, 3/8″x3″, 5/32″x1-3/8″, 3/16″x1-5/8″, 7/32″x1-7/8″
Tips	Hook and eye end fittings for intended applications.
Country of Origin	China

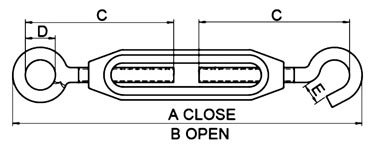

Specifications of LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type


Part No.	Size	Overall Length Closed	Overall Length Open	Take Up	Eye I.D.	Hook Radius	g/pc
LGDCZTBHH5/32	5/32″	3-3/8″	4-3/4″	1-3/8″	1/4″	1/4″	18
LGDCZTBHH3/16	3/16″	3-7/8″	5-1/2″	1-5/8″	5/16″	5/16″	26.5
LGDCZTBHH7/32	7/32″	4-3/8″	6-1/4″	1-7/8″	3/8″	3/8″	48
LGDCZTBHH1/4	1/4″	5-1/2″	7-3/4″	2-1/8″	3/8″	3/8″	61
LGDCZTBHH5/16	5/16″	6-3/4″	9-3/8″	2-5/8″	7/16″	7/16″	105
LGDCZTBHH3/8	3/8″	7-3/4″	10-1/2″	3″	1/2″	1/2″	171
