Information of LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

Brand	LGRIG®
Standard	Cast turnbuckle Conform to DIN 1480
Material	Super Malleable Iron
Processing	Body: Cast; Eye End Fittings: Forged.
Finish	Self-Colored, Electro-Galvanized
Size	M5, M6, M8, M10, M12, M14, M16, M20 M22, M24, M27, M30, M33, M36, M42
Country of Origin	China

Specifications of LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

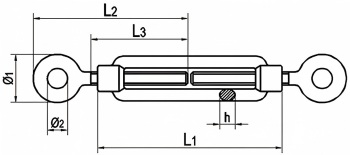

Part No.	Size	L1	h	L2	L3	Φ1	Φ2	W.L.L.	B.L.
Part No.	Size	mm						N
LGC1480EE05	M5	70	5	58	35	15	8	994.5	3978
LGC1480EE06	M6	110	6	80	55	19	9	1462.5	5850
LGC1480EE08	M8	110	8	84	55	24	11	2665	10660
LGC1480EE10	M10	125	9	105	63	31	15	4225	16900
LGC1480EE12	M12	125	11	115	68	35	17	6045	24180
LGC1480EE14	M14	140	13.5	121	70	36	18	8190	32760
LGC1480EE16	M16	170	14	150	85	48	22	11505	46020
LGC1480EE20	M20	200	17	163	100	52	24	17550	70200
LGC1480EE22	M22	220	19	185	110	60	27	22035	88140
LGC1480EE24	M24	255	21	205	128	66	27	25480	101920
LGC1480EE27	M27	255	22	216	128	71	34	35165	133640
LGC1480EE30	M30	255	23	230	128	71	31	40625	162500
LGC1480EE33	M33	255	25	253	128	81	39	50505	202020
LGC1480EE36	M36	295	28	270	148	95	43	59150	236600
LGC1480EE42	M42	330	32	300	170	113	48	–	–
