Information of LGRIG® Grade 70 Clevis Grab Hook With Latch

Brand	LGRIG®
Standard	Clevis grab hook conform to U.S. Federal Specification
Grade	Grade 70
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Zinc Plated / Self-Colored
Size	1/4", 5/16", 3/8", 7/16", 1/2", 5/8" clevis grab hook with latch
Tips	Finish: Customized according to customers requirements
Country of Origin	China

Specifications of LGRIG® Grade 70 Clevis Grab Hook With Latch

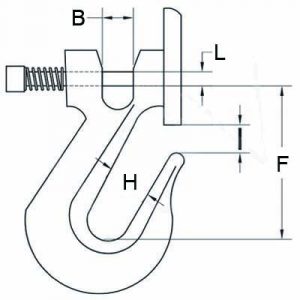

Part NO.	Chain Size	Dimensions					W.L.L	N.W
Alloy Steel	inch	B	E	P	R	T	W.L.L	kgs
LGACGHSL01	1/4”	9	10	9.6	50	10	3500	0.28
LGACGHSL02	5/16”	10	11	11	57.4	12.5	4700	0.43
LGACGHSL03	3/8”	12	12.7	12	66.8	10.5	7100	0.58
LGACGHSL04	1/2”	19.1	16.8	16	81	17.8	12000	1.18
LGACGHSL05	5/8”	23.1	19.8	19.1	103.9	20.4	15800	2.12
