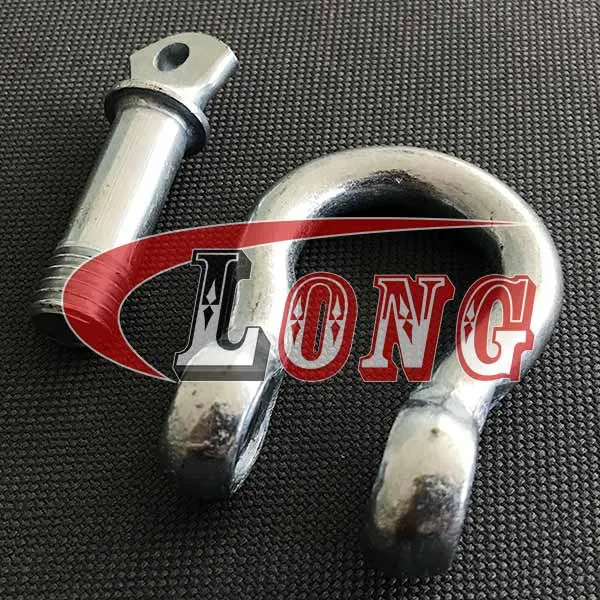

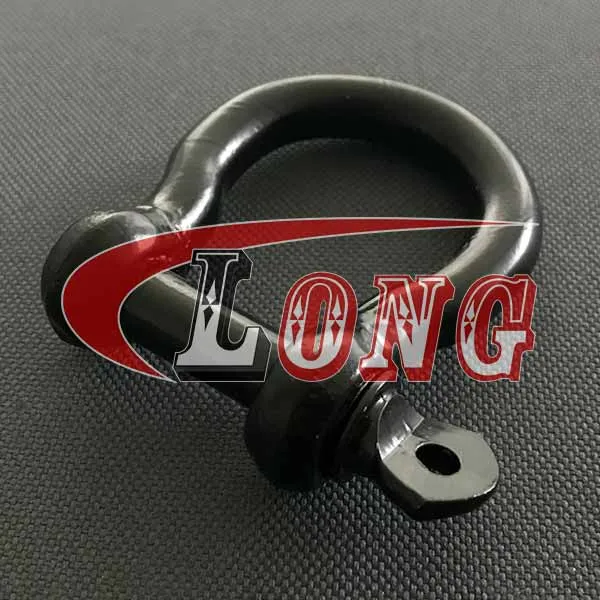

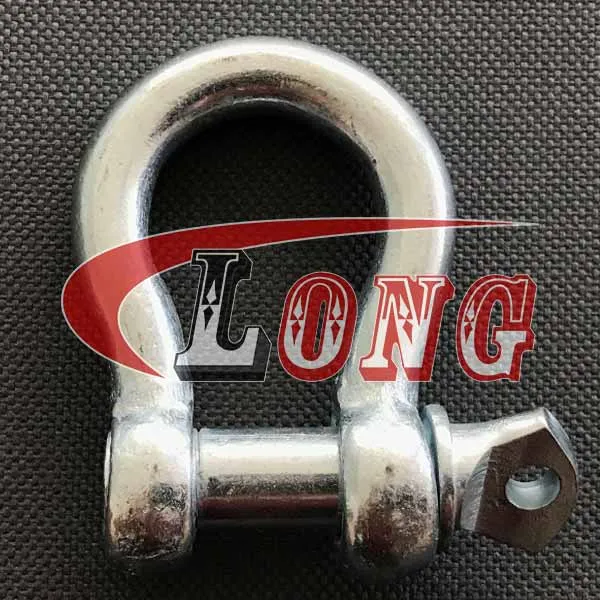

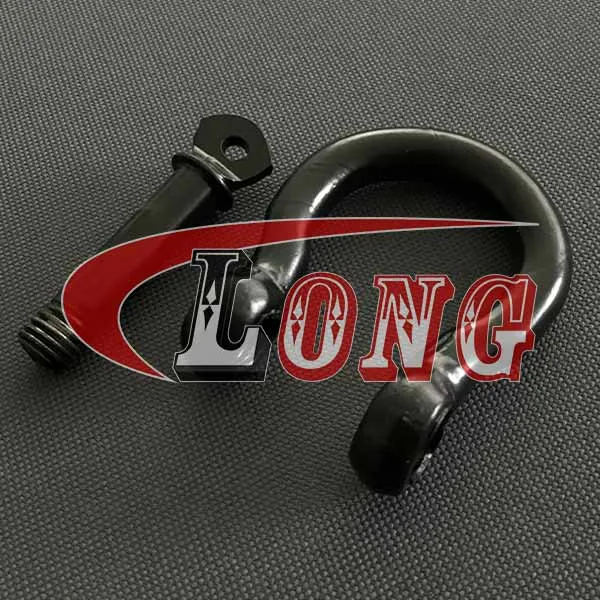

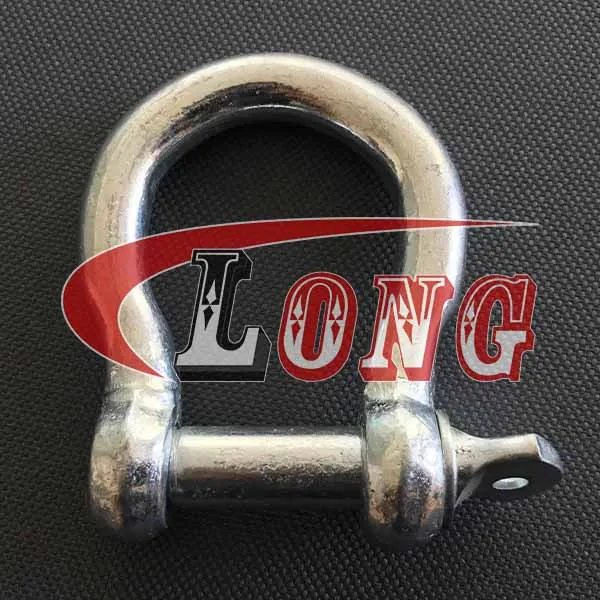

Information of LGRIG® Commercial bow Shackle with Screw Pin European Type

Brand	LGRIG®
Technical Notes	European Type
Material	Super mild Steel
Processing	Body: Forged Screw Pin: Forged, Stamping
Finish	Galvanized / Electrophoretic Coating / Self-color
Size	M5, M6, M8, M10, M11, M12, M16, M20, M22, M25, M28, M32, M38, M45, M50
Tips	Special specification and marks can be made according to customers' requirements
Country of Origin	China

Specifications of LGRIG® Commercial bow Shackle with Screw Pin European Type

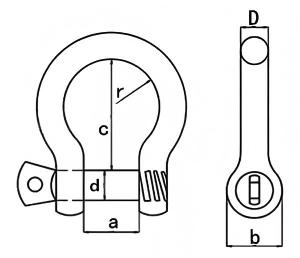

Part No.	D	d	a	c	r	b	S.W.L.	WT/100 pcs
Part No.	mm						Kg	Kg
LGBSSPEU05	5	5	10	19	8	11	80	2.2
LGBSSPEU06	6	6	13	25	10	14	100	4
LGBSSPEU08	8	8	16	32	12	18	200	8
LGBSSPEU10	10	10	19	38	16	20	320	15
LGBSSPEU11	11	11	22	44	18	23	400	20
LGBSSPEU12	12	12	25	51	19	26	520	30
LGBSSPEU16	16	16	32	64	28	33	800	58
LGBSSPEU20	20	20	38	76	33	40	1100	92
LGBSSPEU22	22	22	44	89	37	50	1500	149
LGBSSPEU25	25	25	51	100	40	57	2100	230
LGBSSPEU28	28	28	57	115	47	68	3000	357
LGBSSPEU32	32	32	64	127	52	73	3500	495
LGBSSPEU38	38	38	76	152	63	85	5000	805
LGBSSPEU45	45	45	90	180	75	96	7000	1,438
LGBSSPEU50	50	50	102	200	78	108	8000	2,012
