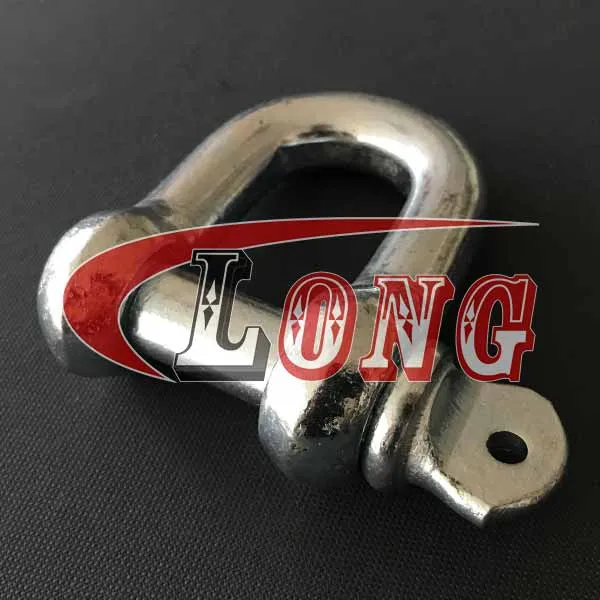

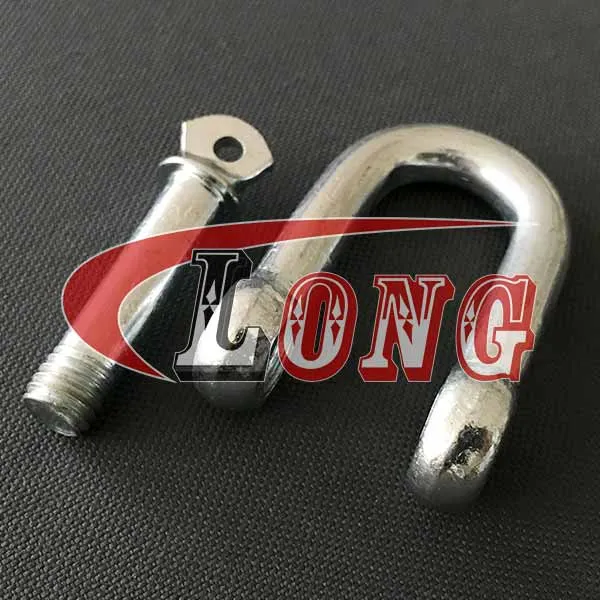

Information of LGRIG® Commercial Screw Pin Dee Shackle European Type

Brand	LGRIG®
Standard	European Type
Material	Super mild Steel
Processing	Body: Forged Screw Pin: Forged, Stamping
Finish	Galvanized / Electrophoretic Coating / Self-color
Size	M5, M6, M8, M10, M11, M12, M16, M20, M22, M25, M28, M32, M38, M45, M50
Tips	We can make Special specification and marks according to customers' requirements.
Country of Origin	China

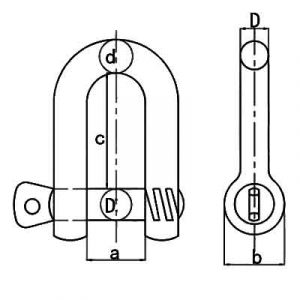

Specifications of LGRIG® Commercial Screw Pin Dee Shackle European Type

Part No.	Size	D	d	a	c	b	S.W.L.	WT/100 pcs
Part No.	Size	mm					Kg	Kg
LGDSSPEU05	M5	5	5	10	19	11	80	1.9
LGDSSPEU06	M6	6	6	13	25	14	100	3.4
LGDSSPEU08	M8	8	8	16	32	18	200	7
LGDSSPEU10	M10	10	10	19	38	20	320	13
LGDSSPEU11	M11	11	11	22	44	23	400	16.5
LGDSSPEU12	M12	12	12	25	51	26	520	24
LGDSSPEU16	M16	16	16	32	64	33	800	50
LGDSSPEU20	M20	20	20	38	76	40	1100	80
LGDSSPEU22	M22	22	22	44	89	50	1500	130
LGDSSPEU25	M25	25	25	51	100	57	2100	200
LGDSSPEU28	M28	28	28	57	115	68	3000	300
LGDSSPEU32	M32	32	32	64	127	73	3500	430
LGDSSPEU38	M38	38	38	76	152	85	5000	675
LGDSSPEU45	M45	45	45	90	180	96	7000	1,250
LGDSSPEU50	M50	50	50	102	200	108	8000	1,750
