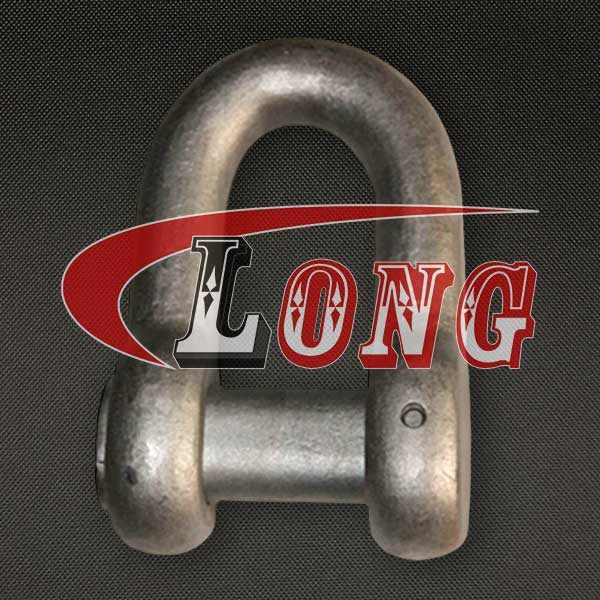

 End Shackle D-type Grade U2 & U3 LG RIGGING®

 D Type Joining Shackles Grade U2 & U3 LG RIGGING®

 Swivel Forerunner Grade U2 & 3 Anchor Chain Accessories LG RIGGING®

 Stainless Steel Delta Anchor DT Type – LG RIGGING®

 Galvanised Plough Type / CQR Anchor

 Galvanised Folding Grapnel Anchor

 Galvanised Steel Bruce/Claw Boat Anchor

 Galvanised Crown Stock Anchor

 Stainless Steel Folding Grapnel Anchor-LG RIGGING®

 Stainless Steel Crown Stock Anchors

 Stainless Steel Four Prong Grapnel Anchors

 Stainless Steel Bruce / Claw Boat Anchor

Dock Products 

Safety Appliance 

Rockhopper Spare Parts 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Informations of D Type Joining Shackles Grade U2 & U3 LG RIGGING®

Brand	LG RIGGING®
Standard	ISO 1704
Material	Steel CM490/CM690
Surface Finish	Hot-dip galvanized \| Electro-galvanized \| Black Painting
Grade	U2 & U3

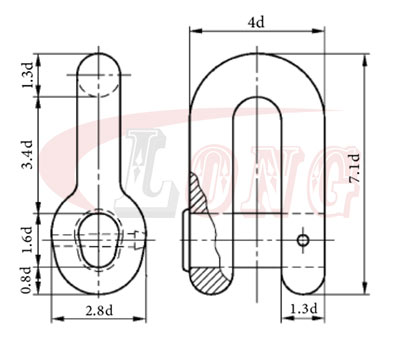

Sizing	11-162mm nominal diameter (full dimensional compliance with DIN 6919)
QA Certificates	DNV/GL/ABS/BV/RINA/NK/KR/LRS/RS/IRS
Country of Origin	China

Specifications of D Type Joining Shackles Grade U2 & U3 LG RIGGING®


Part No.	Nominal DIA. mm d	Weight kg	Part No.	Nominal DIA. mm d	Weight kg	Part No.	Nominal DIA. mm d	Weight kg
LGAJS011	11	0.53	LGAJS050	50	31.60	LGAJS100	100	252.00
LGAJS012.5	12.5	0.60	LGAJS052	52	34.00	LGAJS102	102	267.00
LGAJS014	14	0.67	LGAJS054	54	38.50	LGAJS105	105	294.00
LGAJS016	16	0.95	LGAJS056	56	46.00	LGAJS107	107	305.00
LGAJS017.5	17.5	1.34	LGAJS058	58	46.80	LGAJS111	111	325.00
LGAJS019	19	1.84	LGAJS060	60	51.00	LGAJS114	114	345.00
LGAJS020.5	20.5	2.20	LGAJS062	62	59.20	LGAJS117	117	365.00
LGAJS022	22	2.66	LGAJS064	64	62.70	LGAJS120	120	400.00
LGAJS024	24	3.40	LGAJS066	66	75.00	LGAJS122	122	425.00
LGAJS026	26	4.50	LGAJS068	68	76.70	LGAJS124	124	465.00
LGAJS028	28	5.19	LGAJS070	70	90.00	LGAJS127	127	499.00
LGAJS030	30	6.32	LGAJS073	73	95.00	LGAJS130	130	536.00
LGAJS032	32	8.24	LGAJS076	76	107.00	LGAJS132	132	561.00
LGAJS034	34	9.56	LGAJS078	78	116.00	LGAJS137	137	627.00
LGAJS036	36	11.31	LGAJS081	81	130.00	LGAJS142	142	698.00
LGAJS038	38	13.45	LGAJS084	84	136.00	LGAJS147	147	774.00
LGAJS040	40	15.50	LGAJS087	87	160.00	LGAJS152	152	856.00
LGAJS042	42	18.10	LGAJS090	90	176.00	LGAJS157	157	943.00
LGAJS044	44	20.25	LGAJS092	92	196.00	LGAJS162	162	1036.00
LGAJS044	46	23.33	LGAJS095	95	215.00
LGAJS048	48	27.50	LGAJS097	97	222.00
