Information of LGRIG® DIN 1478 Turnbuckle Body

Brand	LGRIG®
Standard	Turnbuckle To DIN1478
Material	Body: Superior Carbon Steel or Alloy Steel
Finish	Zinc plated, Hot dipped galvanized
Size	M6, M8, M10, M12, M16, M20, M24, M30, M36, M48 turnbuckle meet DIN 1478
Important Notes	Not for Lifting.Only suitable for using in tension.
Country of Origin	China

Tips：

Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

Specifications of LGRIG® DIN 1478 Turnbuckle Body

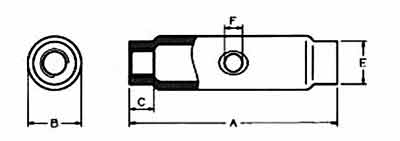

Part No.	Size	A	B	C	E	F	S.W.L.	U.W.
Part No.	Size	mm	mm	mm	mm	mm	kgs	kgs
LG1478TB06	M6	110	17.2	7.5	9	6	225	0.1
LG1478TB08	M8	110	17.2	10	12	8	410	0.09
LG1478TB10	M10	125	21.3	12	15	8	650	0.19
LG1478TB12	M12	125	25	15	18	10	930	0.27
LG1478TB16	M16	170	30	20	24	10	1170	0.42
LG1478TB20	M20	200	33.7	24	30	12	2700	0.62
LG1478TB24	M24	255	42.4	29	33	12	3920	1.24
LG1478TB30	M30	255	51	36	41	16	6250	1.47
LG1478TB36	M36	295	63.5	43	50	16	9100	2.87
LG1478TB42	M42	330	70	51	55	20	12500	4.2
LG1478TB48	M48	355	83	58	62	20	16500	5.78
