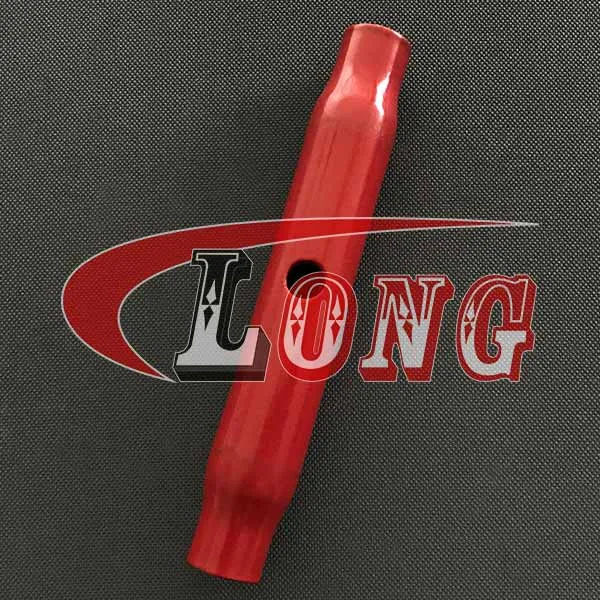

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

 LGRIG® Galvanized Rigging Screw Closed Body Jaw/Jaw

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Jaw/Eye

 LGRIG® JIS Forged Steel Frame Type Turnbuckle

 LGRIG® DIN 1480 Turnbuckle Cast Hook & Hook

 LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

 LGRIG® Turnbuckle Die Cast Zinc Eye/Eye

 LGRIG® Hook and Eye Turnbuckle Die Cast Zinc Plated RS Type

 LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type

 LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type

 LGRIG® Italy Type Turnbuckle Eye and Hook

 LGRIG® Italy Type Turnbuckle Eye/Eye

 LGRIG® Italy Type Turnbuckle Hook & Hook

 Deck Lashing Turnbuckle with Pelican Hook and Pear Link

 LGRIG® Hamburger Turnbuckle Lashing Marine D D

 LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

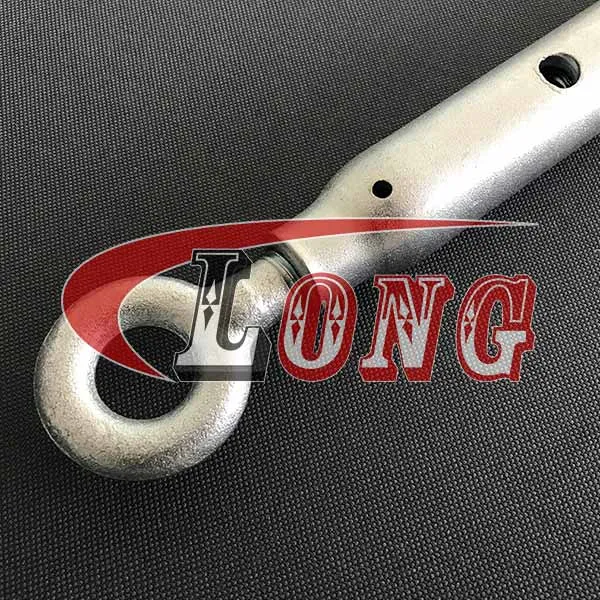

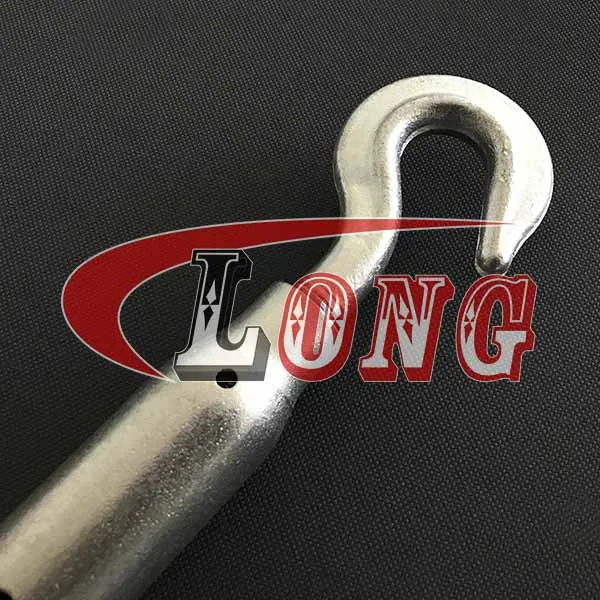

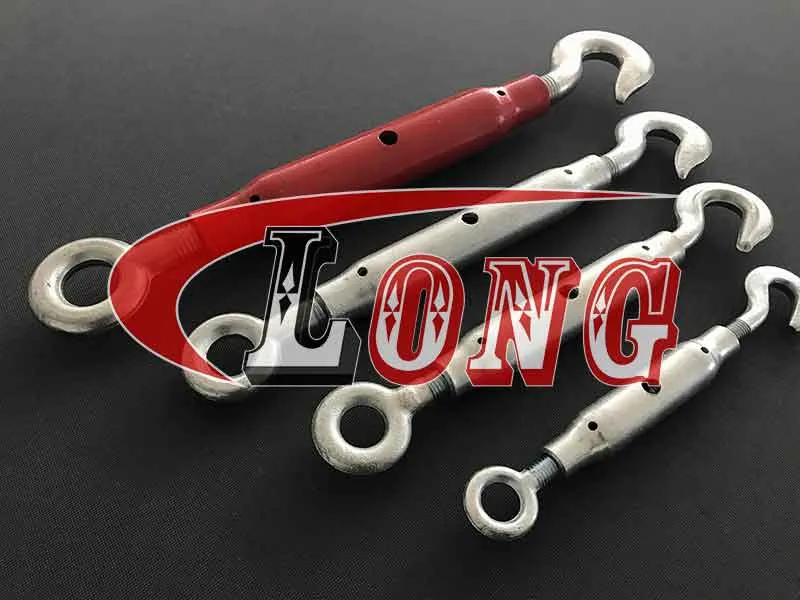

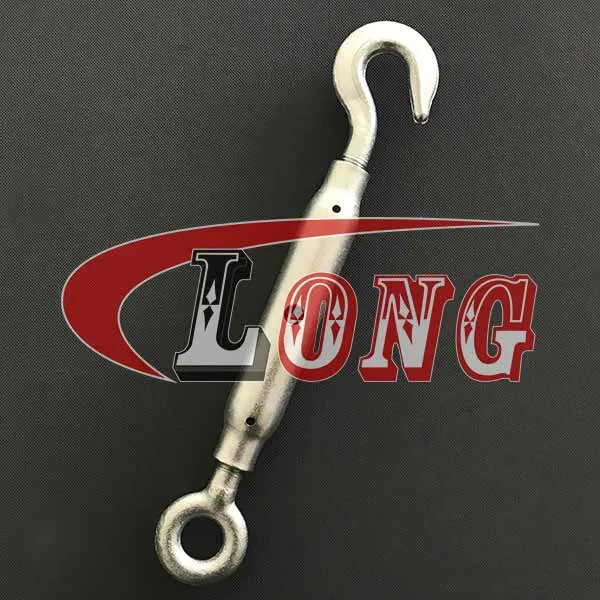

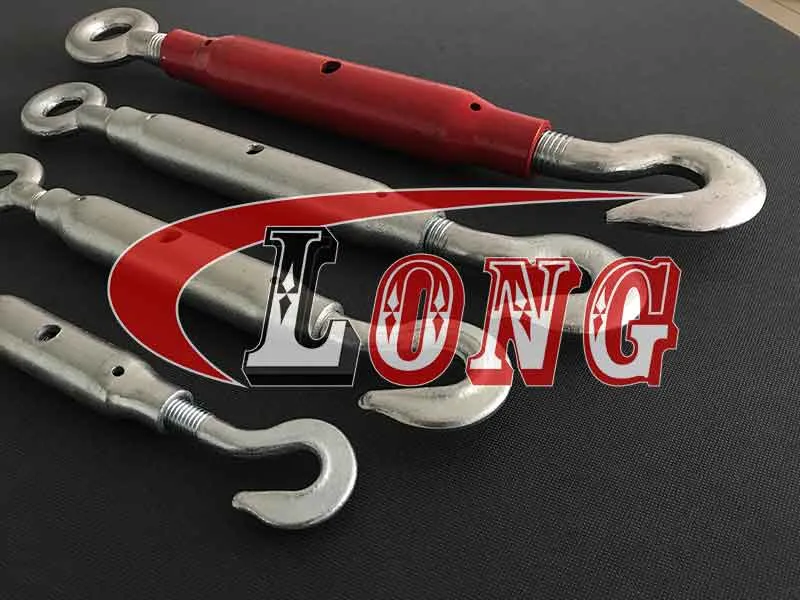

Information of LGRIG® DIN 1478 Turnbuckle Hook and Eye

Brand	LGRIG®
Standard	Closed body Turnbuckle To DIN1478
Material	Turnbuckle Body: Cold-drawn Seamless Steel Tube ( C1020 ) DIN 1478 Turnbuckle Hook and Eye: C1020 / C1045
Finish	Electric Galvanized, Hot dipped galvanized
Size	M6, M8, M10, M12, M16, M20, M22, M24, M30, M36
Important Notes	Not for Lifting.Only suitable for use in tension
Country of Origin	China

Tips

Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.

Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

Specifications of LGRIG® DIN 1478 Turnbuckle Hook and Eye

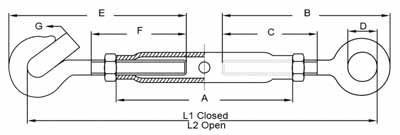

Part No.	Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	L1 (mm)	L2 (mm)	S.W.L.	U.W.
Part No.	Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	L1 (mm)	L2 (mm)	Kg	Kg/pc
LG1478EH06	M 6	110	74	50	10	76	50	8,5	150	240	75	0,130
LG1478EH08	M 8	110	80	52	11	89	52	10	161	250	165	0,150
LG1478EH10	M 10	125	97	60	14	103	62	12	187	293	235	0,320
LG1478EH12	M 12	125	106	67	17	121	65	16	208	313	320	0,490
LG1478EH16	M 16	170	160	97	23	172	105	16,5	299	440	530	1,080
LG1478EH20	M 20	200	190	116	25	185	110	17,5	341	509	730	1,440
LG1478EH24	M 24	255	210	125	34	225	135	23	393	605	1550	2,650
LG1478EH30	M 30	255	240	150	38	250	145	29	440	647	2240	3,870
LG1478EH36	M 36	295	276	160	48	284	170	30	502	735	3530	7,540
