Information of LGRIG® DIN 1480 Turnbuckle Eye/Eye

Brand	LGRIG®
Standard	Turnbuckle To DIN1480
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M5, M6, M8, M10, M12, M14, M16, M20 M22 , M24, M27, M30, M33, M36, M42
Country of Origin	China

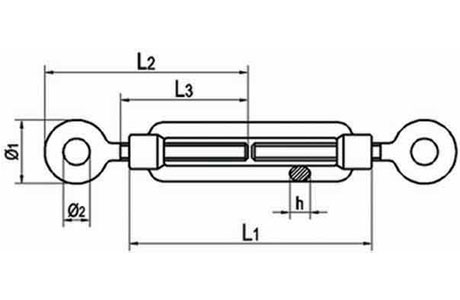

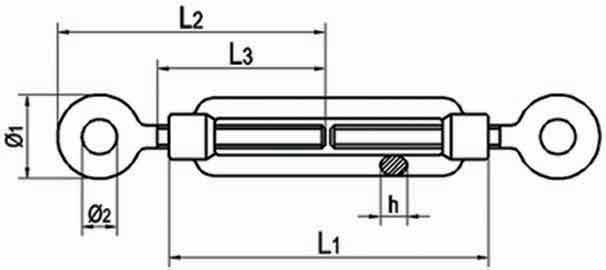

Specifications of LGRIG® DIN 1480 Turnbuckle Eye/Eye

Part No.	Size	L1	h	L2	L3	Φ1	Φ2	W.L.L.	B.L.
Part No.	Size	mm						N	N
LG1480EE05	M5	70	5	58	35	15	8	1530	6120
LG1480EE06	M6	110	6	80	55	19	9	2250	9000
LG1480EE08	M8	110	8	84	55	24	11	4100	16400
LG1480EE10	M10	125	9	105	63	31	15	6500	26000
LG1480EE12	M12	125	11	115	68	35	17	9300	37200
LG1480EE14	M14	140	13.5	121	70	36	18	12600	50400
LG1480EE16	M16	170	14	150	85	48	22	17700	70800
LG1480EE20	M20	200	17	163	100	52	24	27000	108000
LG1480EE22	M22	220	19	185	110	60	27	33900	135600
LG1480EE24	M24	255	21	205	128	66	27	39200	156800
LG1480EE27	M27	255	22	216	128	71	34	54100	205600
LG1480EE30	M30	255	23	230	128	71	31	62500	250000
LG1480EE33	M33	255	25	253	128	81	39	77700	310800
LG1480EE36	M36	295	28	270	148	95	43	91000	364000
LG1480EE42	M42	330	32	300	170	113	48	–	–
