Informations of LGRIG® DIN 1480 Turnbuckle Hook/Eye Galvanized

Brand	LGRIG®
Standard	Turnbuckle/Straining Screw To DIN1480
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M5, M6, M8, M10, M12, M14, M16, M20 M22 , M24, M27, M30, M33, M36, M42
Country of Origin	China

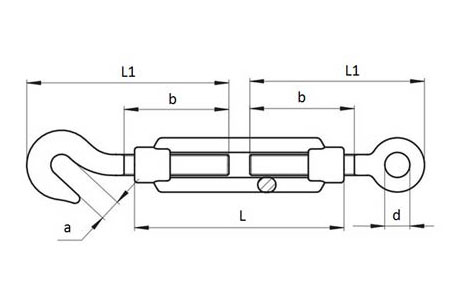

Specifications of LGRIG® DIN 1480 Turnbuckle Hook/Eye Galvanized


Part No.	Size	L1	h	L2	b	L3	Φ1	Φ2	W.L.L.	B.L.
Part No.	Size	mm							N
LG1480HE05	M5	70	5	62	7	58	15	8	994.5	1491.75
LG1480HE06	M6	110	6	87	8.5	80	19	9	1462.5	2193.75
LG1480HE08	M8	110	8	95	11	84	24	11	2665	3997.5
LG1480HE10	M10	125	9	118	13.5	105	31	15	4225	6337.5
LG1480HE12	M12	125	11	125	15.5	115	35	17	6045	9067.5
LG1480HE14	M14	140	13.5	140	18.5	121	36	18	8190	12285
LG1480HE16	M16	170	14	164	20	150	48	22	11505	17257.5
LG1480HE20	M20	200	17	196	21.5	163	52	24	17550	26325
LG1480HE22	M22	220	19	214	26	185	60	27	22035	33052.5
LG1480HE24	M24	255	21	236	26	205	66	27	25480	38220
LG1480HE27	M27	255	22	250	29	216	71	34	35165	50115
LG1480HE30	M30	255	23	264	29	230	71	31	40625	60937.5
LG1480HE33	M33	255	25	292	36	253	81	39	50505	75757.5
LG1480HE36	M36	295	28	319	44	270	95	43	59150	88725
LG1480HE42	M42	330	32	390	48	300	113	48	–	–
