Name: LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

 LGRIG® Jaw&Jaw Turnbuckle Galvanized US Type

 LGRIG® Forged Turnbuckle with Plain Ends for Swimming Pool

 LGRIG® Eye&Eye Turnbuckle Galvanized US Spec

 LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec

 LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec

 LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec

 LGRIG® DIN 1478 Turnbuckle Body

 LGRIG® DIN 1478 Turnbuckle Jaw-Jaw Galvanized

 LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Jaw-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook and Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook-Hook Galvanized

 LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Body Only

 LGRIG® DIN 1480 Turnbuckle Eye/Eye

 LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized

 LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized

 LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

 LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

 LGRIG® Galvanized Rigging Screw Closed Body Jaw/Jaw

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Jaw/Eye

 LGRIG® JIS Forged Steel Frame Type Turnbuckle

 LGRIG® DIN 1480 Turnbuckle Cast Hook & Hook

 LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

 LGRIG® Turnbuckle Die Cast Zinc Eye/Eye

 LGRIG® Hook and Eye Turnbuckle Die Cast Zinc Plated RS Type

 LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type

 LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type

 LGRIG® Italy Type Turnbuckle Eye and Hook

 LGRIG® Italy Type Turnbuckle Eye/Eye

 LGRIG® Italy Type Turnbuckle Hook & Hook

 Deck Lashing Turnbuckle with Pelican Hook and Pear Link

 LGRIG® Hamburger Turnbuckle Lashing Marine D D

 LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized

Brand	LGRIG®
Standard	Straining screw To DIN1480
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated / Hot dipped galvanized
Size	M5, M6, M8, M10, M12, M16, M20
Country of Origin	China

Specifications of LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized


Specification

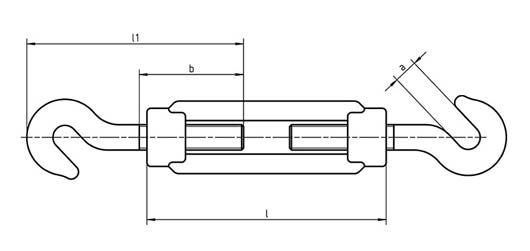

Legend:

L – length of body
a – opening Range
L1 – length of hook end
b – length of thread

Part No.	Thread	a	b	L	L1
LG1480HH06	M6	8	50	110	77
LG1480HH08	M8	10	60	110	98
LG1480HH10	M10	12,5	73	125	116,5
LG1480HH12	M12	16	90	125	146
LG1480HH16	M16	16	100	170	165
LG1480HH20	M20	18	105	200	180
LG1480HH24	M24	30	135	255	225
LG1480HH30	M30	30	140	255	255
LG1480HH36	M36	32	170	295	300
