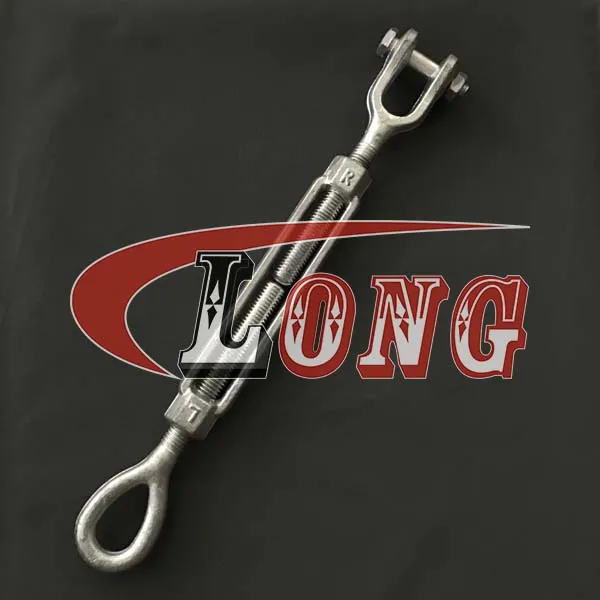

 LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec

 LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec

 LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec

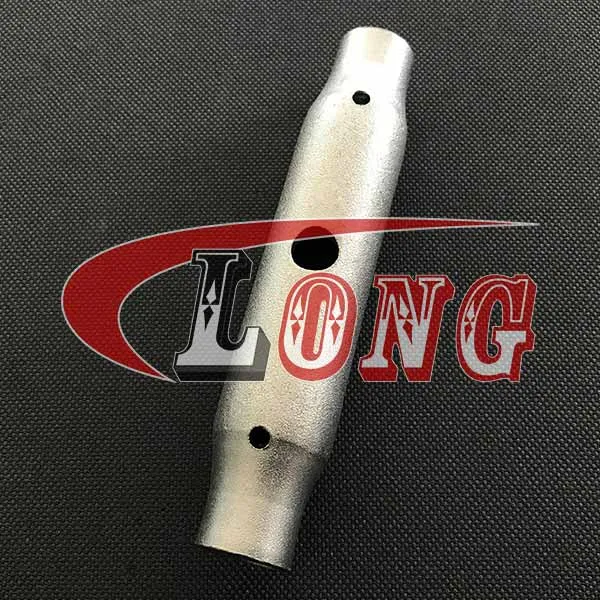

 LGRIG® DIN 1478 Turnbuckle Body

 LGRIG® DIN 1478 Turnbuckle Jaw-Jaw Galvanized

 LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Jaw-Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook and Eye Galvanized

 LGRIG® DIN 1478 Turnbuckle Hook-Hook Galvanized

 LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Body Only

 LGRIG® DIN 1480 Turnbuckle Eye/Eye

 LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized

 LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized

 LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized

 LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

 LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

 LGRIG® Galvanized Rigging Screw Closed Body Jaw/Jaw

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

 LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Jaw/Eye

 LGRIG® JIS Forged Steel Frame Type Turnbuckle

 LGRIG® DIN 1480 Turnbuckle Cast Hook & Hook

 LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook

 LGRIG® Turnbuckle Die Cast Zinc Eye/Eye

 LGRIG® Hook and Eye Turnbuckle Die Cast Zinc Plated RS Type

 LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type

 LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type

 LGRIG® Italy Type Turnbuckle Eye and Hook

 LGRIG® Italy Type Turnbuckle Eye/Eye

 LGRIG® Italy Type Turnbuckle Hook & Hook

 Deck Lashing Turnbuckle with Pelican Hook and Pear Link

 LGRIG® Hamburger Turnbuckle Lashing Marine D D

 LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

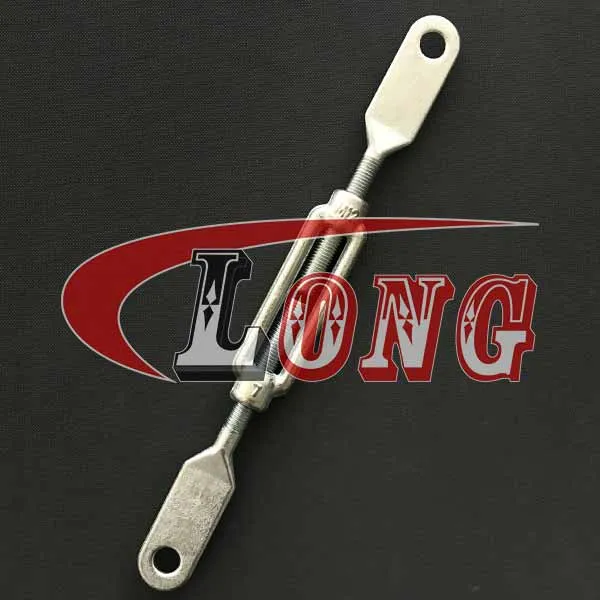

Information of LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized

Brand	LGRIG®
Standard	Straining screw To DIN1480
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M8, M10, M12, M16, M20, M24, M30 turnbuckle to DIN 1480
Country of Origin	China

Specifications of LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized

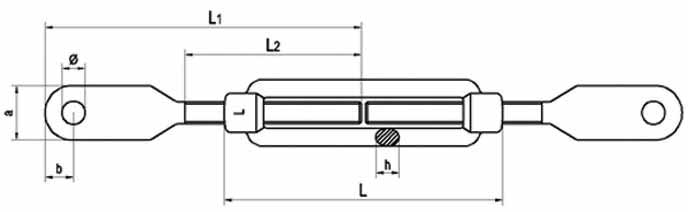

Part No.	Size	L	h	L1	L2	a	b	Φ	W.L.L.	B.L.
Part No.	Size	mm							N
LG1480PE08	M8	110	8	125	70	20	11	6.5	4100	16400
LG1480PE10	M10	125	9	150	85	25	13	10.5	6500	26000
LG1480PE12	M12	125	11	170	85	30	16	13	9300	37200
LG1480PE16	M16	170	14	250	110	40	20.5	12.5	17700	70800
LG1480PE20	M20	200	17	250	110	50	27	16.5	27000	108000
LG1480PE24	M24	255	21	300	153	70	45	22	39200	156800
LG1480PE30	M30	255	23	349.5	150	70	45	25	62500	250000
