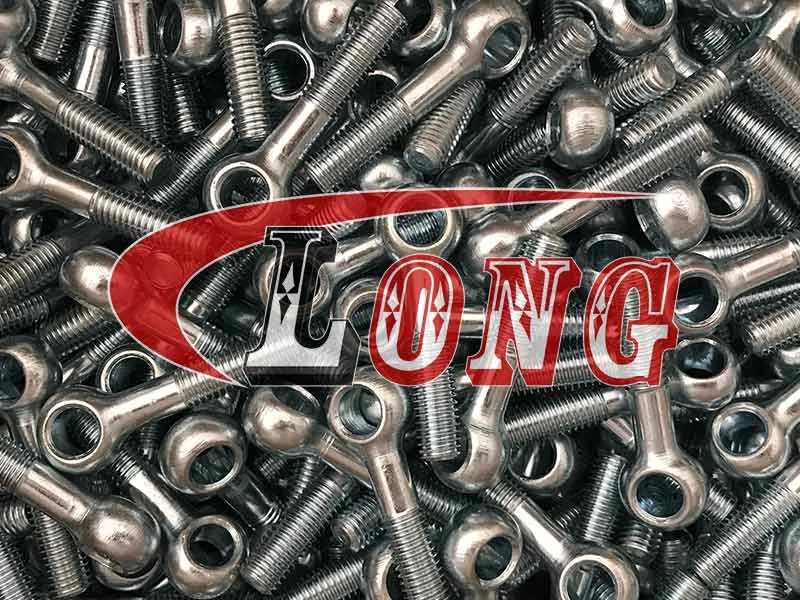

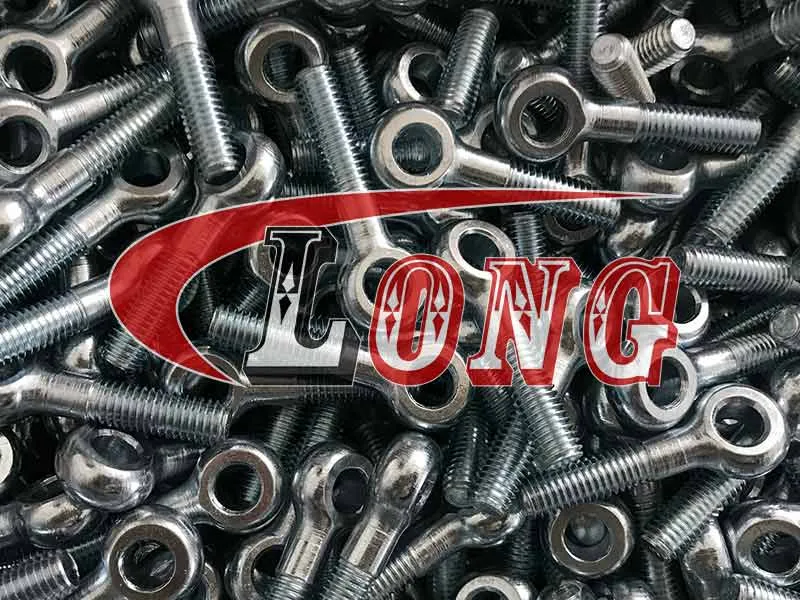

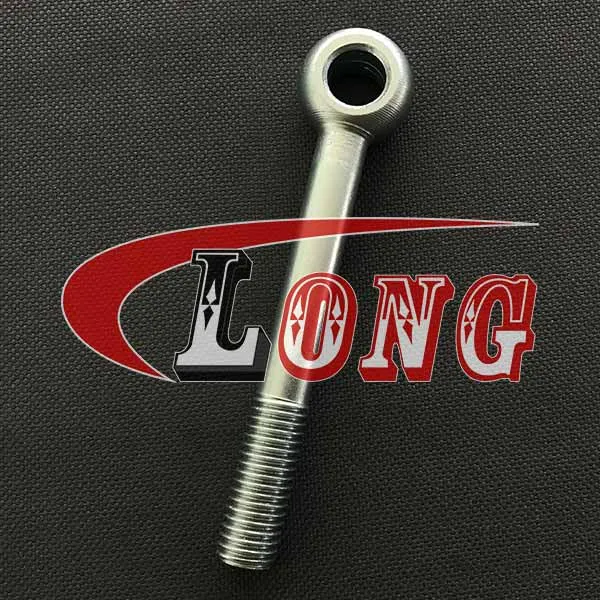

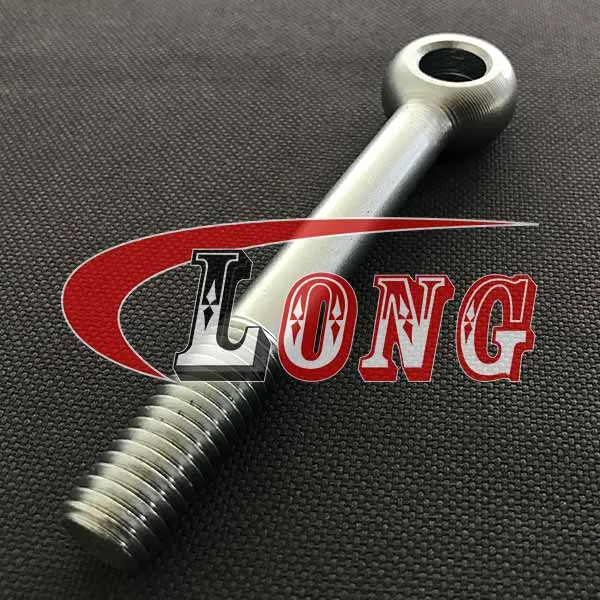

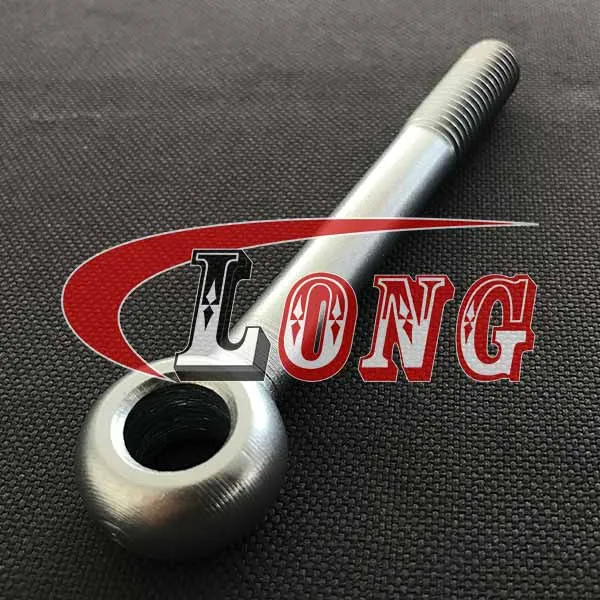

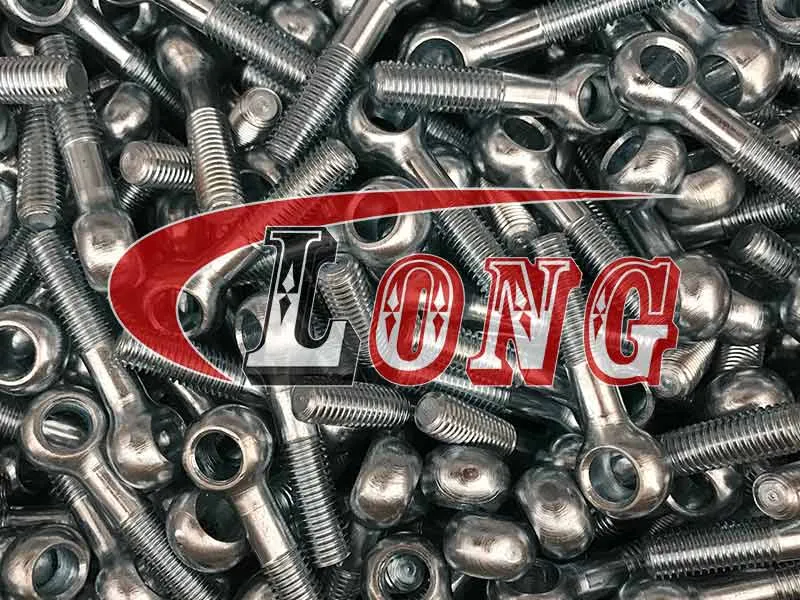

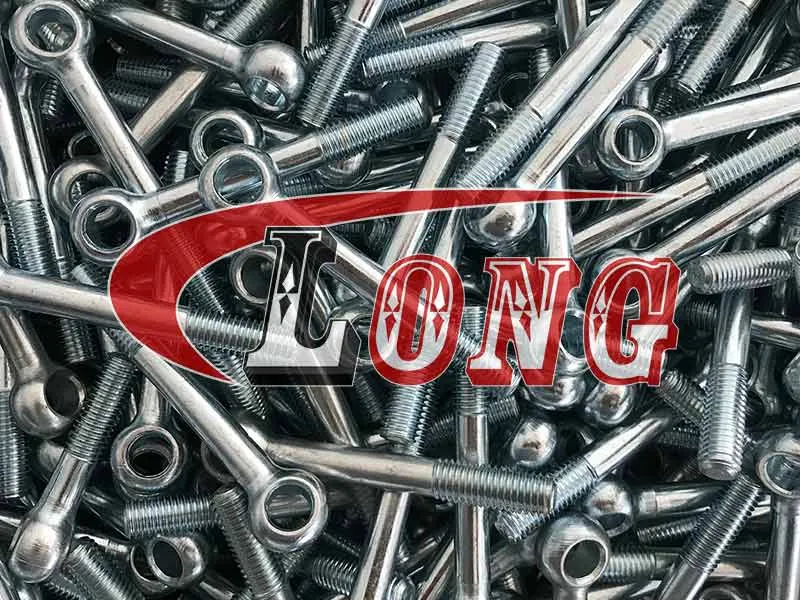

Name: LGRIG® DIN 444 Swing Eye Bolt
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

 LGRIG® Collared Eyebolt BS 4278 Table 1 Metric

 LGRIG® Fork Head Clevis Joint DIN71752

 LGRIG® DIN580 Eye Bolt Galvanized

 LGRIG® DIN 582 Lifting Eye Nut

 LGRIG® Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

 LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

 LGRIG® Collared Eyebolt With Oval Link Metric BS 4278 Table 2

 LGRIG® Dynamo Eyebolt with Enlarged Eye BS 4278 Table 3 Metric

 LGRIG® Long Shank Metric Dynamo Eyebolts to BS 4278 Table 3

 LGRIG® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

 LGRIG® JIS B 1169 Forged Eye Nut

 LGRIG® Forged Shoulder Machinery Eye Bolt LGS-279/LGM-279

 LGRIG® Forged Screw Eye Bolts LG-275

 LGRIG® Forged Shoulder Nut Eye Bolts LG-277

 LGRIG® Regular Nut Eye Bolts LG-291

 LGRIG® G-400 Eye Nut Galvanized UNC Threaded

 LGRIG® Rectangular Base Deck Eye Plates

 LGRIG® DIN 444 Swing Eye Bolt

 LGRIG® Wood Lag Screw w/Ring Thread Ring Bolt

 LGRIG® Welded Eye Bolt Wire Turned with Lock nut

 LGRIG® Unwelded Eye Bolt Wire Turned

 LGRIG® Lag Screw Eye Bolts Welded

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® DIN 444 Swing Eye Bolts

Brand	LGRIG®
Standard	Eye Swing Bolt Conform to DIN 444
Material	Super Carbon Steel
Processing	Forged & Machining
Finish	Zinc Plated
Size	M690 , M8125 , M8140 , M10125 , M10150 , M12125 , M12200 , M12260 , M16125 M16200 , M16260 , M20125 , M20200 , M20260 , M24125 , M24200 , M24260 M30200 , M30300 , M36200 , M36300 , M36200 , M36*300
Tips	Right handed metric coarse thread.
Country of Origin	China

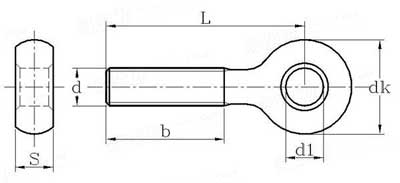

Specifications of LGRIG® DIN 444 Swing Eye Bolts

Part No.	SIZE	d	P	b			d1		dk				s
Part No.	SIZE	d	Pitch	L≤125	125＜L ≤200	L＞200	Max.	Min.	A type Max.	A type Min.,	B&C type Max.	B&C type Min.	A type Max.	A type Min.	B&C type Max.	B&C type Min.
LG444M5	M5		0.8	16	/	/	5.03	5	12	10.9	12	11.57	8	7.52	6	5.88
LG444M6	M6		1	18	/	/	6.03	6	14	12.9	14	13.57	9	8.52	7	6.85
LG444M8	M8		1.25	22	28	/	8.036	8	18	16.9	18	17.57	11	10.3	9	8.85
LG444M10	M10		1.5	26	32	/	10.036	10	20	18.7	20	19.48	14	13.3	12	11.82
LG444M12	M12		1.75	30	36	49	12.043	12	25	23.7	25	24.48	17	16.3	14	13.82
LG444M16	M16		2	38	44	57	16.043	16	32	30.4	32	31.38	19	18.16	17	16.82
LG444M20	M20		2.5	46	52	65	18.043	18	40	38.4	40	39.38	24	23.16	22	21.79
LG444M24	M24		3	54	60	73	22.052	22	45	43.4	45	44.38	28	27.16	25	24.79
LG444M27-1	M27		3	60	66	79	24.052	24	50	48.4	50	49.38	30	29.16	27	26.79
LG444M27-2	M27		3	60	66	79	25.052	25	50	48.4	50	49.38	30	29.16	27	26.79
LG444M30-1	M30		3.5	66	72	85	27.052	27	55	53.1	55	54.26	34	33	30	29.79
LG444M30-2	M30		3.5	66	72	85	28.052	28	55	53.1	55	54.26	34	33	30	29.79
LG444M33	(M33)		3.5	/	78	91	30.052	30	60	58.1	60	59.26	38	37	34	33.75
LG444M36-1	M36		4	/	84	97	32.062	32	65	63.1	65	64.26	41	40	38	37.75
LG444M36-2	M36		4	/	84	97	33.062	33	65	63.1	65	64.26	41	40	38	37.75
LG444M39-1	(M39)		4	/	90	103	35.062	35	70	68.1	70	69.26	46	45	41	40.75
LG444M39-2	(M39)		4	/	90	103	36.062	36	70	68.1	70	69.26	46	45	41	40.75
