Information of DIN 5683 Long Link Chain LG RIGGING®

Brand	LG RIGGING®
Technical Notes	DIN 5683
Type	Long Link Chain
Material	Super Alloy Steel 20MnSi
Processing	Welded
Finish	Zinc Plated/Selfcolor/Hot Dipped Galvanized
Size(mm)	13mm, 16mm, 18mm, 20mm, 23mm, 26mm, 30mm, 33mm, 36mm, 39mm
Note	NOT FOR OVERLOAD LIFTING

Specifications of DIN 5683 Long Link Chain LG RIGGING®

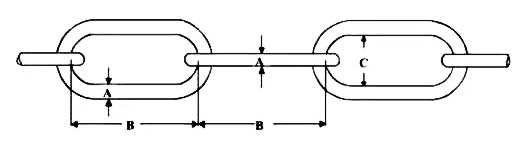

Part No.	Size(mm)			Pitch		Width		PL KN Proof Load	BL KN Break Load	Weight(KG)
Part No.	A		Tol	B	Tol	C	Tol	PL KN Proof Load	BL KN Break Load	Weight(KG)
LG5683C13	13	4/8	±0.7	36	±4	18	±2	110	210	3.9
LG5683C16	16	5/8	±0.8	144	±4	56	±3	32	160	4.4
LG5683C18	18	1”1/16	±0.9	162	±4	63	±3	40	200	5.6
LG5683C20	20	1”3/16	±1	180	±5	70	±3	50	250	6.9
LG5683C23	23	1”5/16	±1.2	207	±5	81	±4	63	320	9.1
LG5683C26	26	1”	±1.3	234	±6	91	±4	80	400	12
LG5683C30	30	1”3/16	±1.5	270	±7	105	±5	110	560	15
LG5683C33	33	1”5/16	±1.7	297	±7	116	±5	130	670	19
LG5683C36	36	1”7/16	±1.8	324	±8	126	±6	160	800	22
LG5683C39	39	1”9/16	±2	351	±9	137	±6	190	950	26
