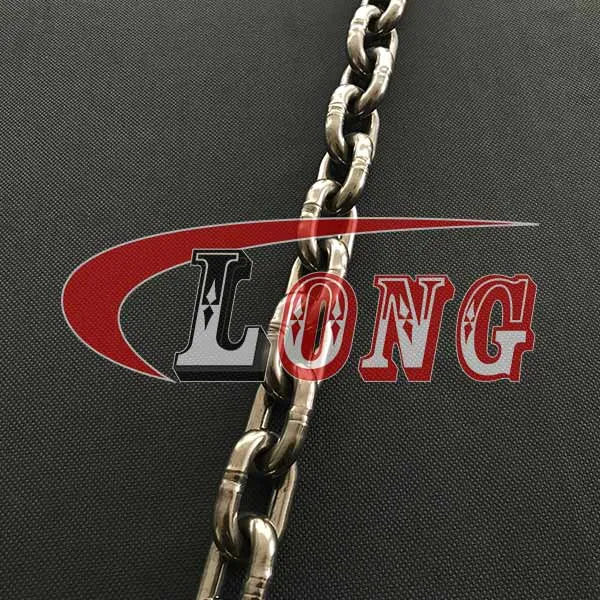

 LGRIG® Stainless Steel Calibrated Short Link Chain DIN 766

 LGRIG® DIN 5685 A/C Short/Long Link Chain

 LGRIG® DIN 5683 Long Link Chain

 LGRIG® Grade 70 Chain AS/NZS 4344

 LGRIG® Short Link Chain Australian Standard

 LGRIG® Regular Link Proof Coil Chain Australian Standard

 LGRIG® Long Link Proof Coil Chain Australian Standard

 LGRIG® Grade L Chain Short Link AS2321 Galvanised

 LGRIG® Grade 70 Long Link Trailer Safety Chains NZS5467

 LGRIG® Studless Link Anchor Chain Common Link

 LGRIG® Grade U1 U2 U3 Stud Link Anchor Chain Common Link

 LGRIG® Grade 70 Chain Anchor with Delta Ring and Grab Hook

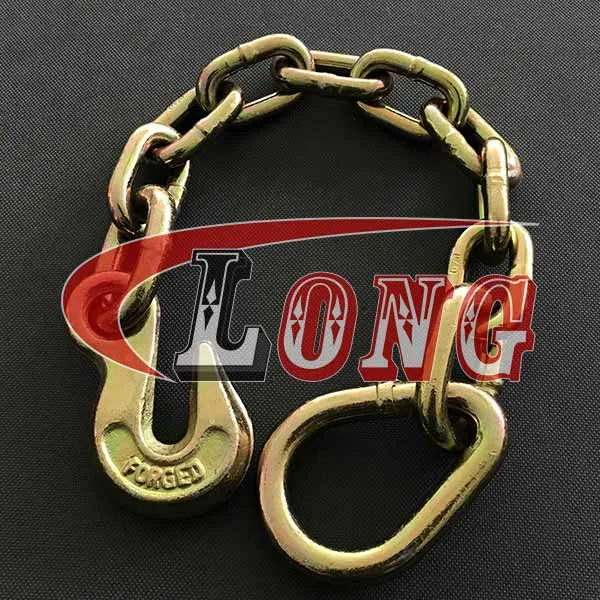

 LGRIG® Grab Hook w/ 18'' Chain Anchor Pear Ring

 Trailer Safety Chain with 2 ''S'' Hooks Grade 30

 G43/ G70 Chain With Clevis Hooks/Eye Hooks

 Straight Link Coil Chain, Zinc Plated

 Twist Link Coil Chain, Zinc Plated

 Double Loop Weldless Chain

 Sash Chains, Weldless Chain

 LGRIG® Cold Shut Chain Link Zinc Plated

 LGRIG® Zinc Plated Lap Link Chain Repair Link Mending Link

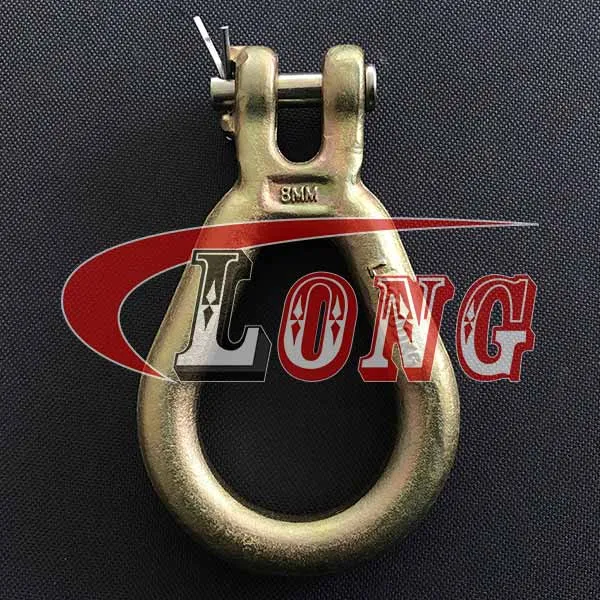

 LGRIG® Clevis Lug Links Grade 70 AS/NZS 4344

 LGRIG® Twin Clevis Link of Chains and Accessories

 LGRIG® Double Clevis Link Forged Steel of Chains and Accessories

 Split Connecting Links, Chain Connecting Links, G-335 Missing Link

 LGRIG® Grade 43 High Test Chain Towing Chain

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

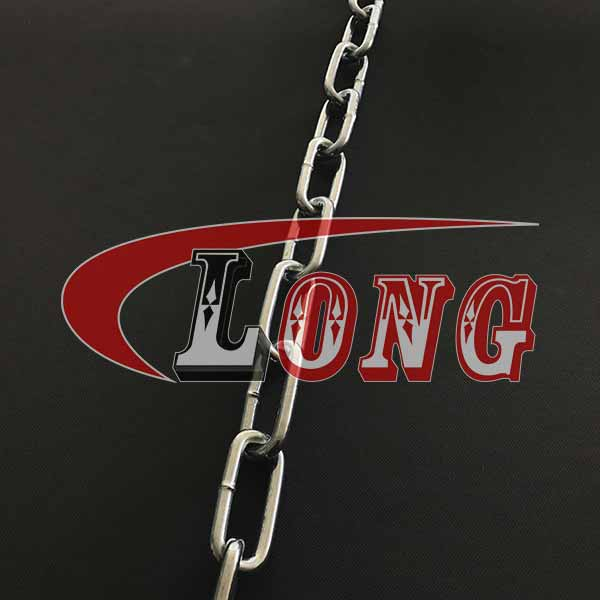

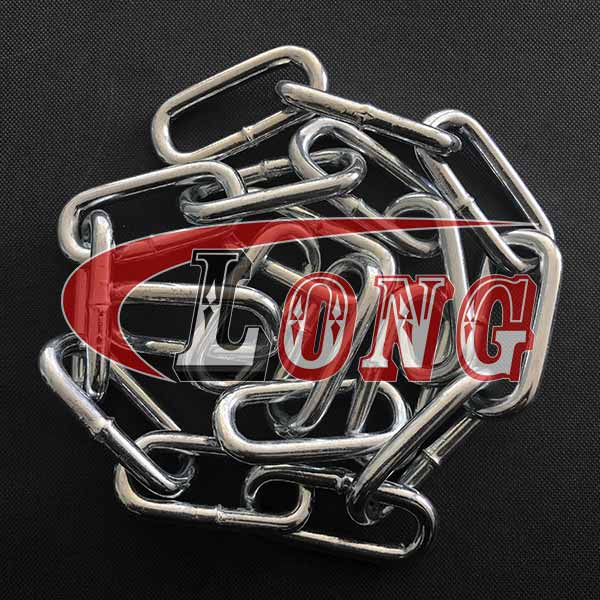

Information of LGRIG® DIN 763 Long Link Chain Galvanized

Brand	LGRIG®
Standard	To DIN 763
Material	Super mild Steel
Processing	Welded
Finish	Zinc Plated / Electrophoretic Coating
Size	3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm, 32mm
Note	NOT FOR OVERLOAD LIFTING
Country of Origin	China

Specifications of LGRIG® DIN 763 Long Link Chain Galvanized

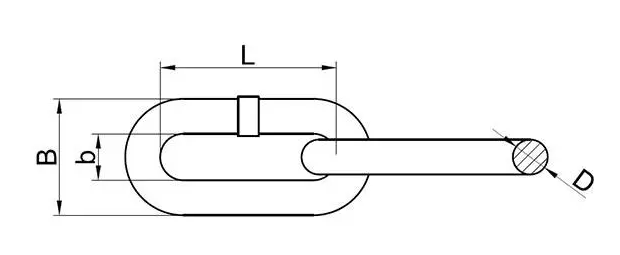

Part No.	Size(mm)		Pitch(mm)		Width(mm)		Working Load (KG)	Test Load (KN)	Breaking Load (KN)
Part No.	D	TOL	L	TOL	B	TOL	Working Load (KG)	Test Load (KN)	Breaking Load (KN)
LG763C02	2.0	± 0.10	22	± 1.0	8	± 0.4	25	0.50	1.25
LG763C2.5	2.5	± 0.12	24	± 1.1	10	± 0.5	40	0.80	2.00
LG763C03	3.0	± 0.15	26	± 1.2	12	± 0.6	55	1.05	3.20
LG763C3.5	3.5	± 0.20	28	± 1.3	14	± 0.7	80	1.54	3.85
LG763C04	4.0	± 0.20	32	± 1.5	16	± 0.8	100	2.50	6.50
LG763C4.5	4.5	± 0.23	34	± 1.7	18	± 0.9	128	3.00	8.00
LG763C05	5.0	± 0.25	35	± 1.8	20	± 1.0	160	4.00	10.00
LG763C5.5	5.5	± 0.25	38.5	± 1.8	22	± 1.1	195	4.20	10.50
LG763C06	6.0	±0.30	42	± 2.0	24	± 1.2	200	5.00	12.00
LG763C07	7.0	± 0.35	49	± 2.5	28	± 1.4	300	7.50	19.00
LG763C08	8.0	± 0.40	52	± 2.5	32	± 1.6	400	10.00	25.00
LG763C8.5	8.5	± 0.40	56	± 2.8	34	± 1.7	460	10.20	25.50
LG763C09	9.0	± 0.50	59	± 3.0	36	± 1.8	530	10.50	32.00
LG763C10	10.0	± 0.50	65	± 3.2	40	± 2.0	630	16.00	40.00
LG763C11	11.0	± 0.50	72	± 3.4	44	± 2.0	790	15.80	47.50
LG763C12	12.0	± 0.60	78	± 3.6	48	± 2.3	940	18.80	56.50
LG763C13	13.0	± 0.65	82	± 4.0	52	± 2.5	1,000	25.00	63.00
LG763C16	16.0	± 0.80	100	± 5.0	64	± 3.2	1,600	40.00	100.00
LG763C18	18.0	± 0.90	113	± 5.2	70	± 3.2	2,120	42.30	127.00
LG763C19	19.0	± 0.90	119	± 5.6	72	± 3.4	2,370	47.30	142.00
LG763C20	20.0	± 1.00	120	± 6.0	75	± 3.8	2,500	50.00	160.00
LG763C22	22.0	± 1.20	127	± 6.0	82	± 4.0	3,170	63.30	190.00
LG763C25	25.0	± 1.30	140	± 6.6	85	± 4.2	4,090	81.70	245.00
LG763C26	26.0	±1.30	145.5	±6.6	88.5	±4.2	5,400	108.00	270.00
LG763C28	28.0	± 1.40	152	± 7.0	96	± 4.7	6,000	120.00	300.00
LG763C32	32.0	± 1.60	171	± 7.8	108	± 5.2	8,000	160.00	400.00
