Informations of LGRIG® Single/Double Sheave Marine Wire Rope Blocks

Brand	LGRIG®
Material	Cast Iron
Processing	Cast
Finish	Painted
Type	Single Sheave/ Double Sheave
Safety Factor	4: 1
W.L.L.	2Ton, 3Ton, 5Ton, 8Ton, 10Ton, 16Ton, 20Ton, 25Ton, 32Ton
Size	6inch, 8inch, 10inch, 12inch, 14inch, 16inch, 17inch, 18inch
Tips	Color Code: Customized according to customers' requirements
Note	Never exceed Working Load Limit

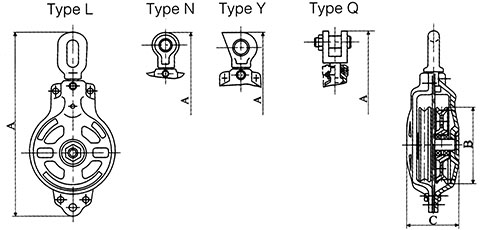

Specifications of LGRIG® Single/Double Sheave Marine Wire Rope Blocks

Part No.	Single Type	S.W.L	B.L.	wire Dia.	sheave Dia.
Part No.	Single Type	kN(TON)		mm
LGWRBHCS06	6-HC2*1	20(2)	80(8)	10~13	150
LGWRBHCS08	8-HC3*1	30(3)	120(12)	16~20	200
LGWRBHCS10	10-HC3*1	30(3)	120(12)	16~20	260
LGWRBHCS12	12-HC5*1	50(5)	200(20)	20~22	300
LGWRBHCS14	14-HC5*1	50(5)	200(20)	20~24	340
LGWRBHCS16	16-HC10*1	100(10)	400(40)	24~26	406
LGWRBHCS17	17-HC16*1	160(16)	640(64)	26~28	430
LGWRBHCS18	18-HC20*1	200(20)	800(80)	26~28	460

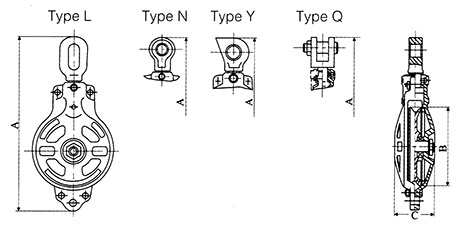

Part No.	Double Type	S.W.L	B.L.	wire Dia.	sheave Dia.
Part No.	Double Type	TON		mm
LGWRBHCD08	8-HC5*2	50(5)	100(10)	16~20	200
LGWRBHCD10	10-HC8*2	80(8)	160(16)	16~20	260
LGWRBHCD12	12-HC10*2	100(10)	200(20)	20~22	300
LGWRBHCD14	14-HC16*2	160(16)	320(32)	20~24	340
LGWRBHCD16	16-HC20*2	200(20)	400(40)	24~26	406
LGWRBHCD17	17-HC25*2	250(25)	500(50)	26~28	430
LGWRBHCD18	18-HC32*2	320(32)	640(64)	26~28	460
