Information of LGRIG® Drop Forged Wire Rope Clips Italy Type

Brand	LGRIG®
Standard	Italy Type
Processing	Drop Forged
Finish	Electro-galvanized, Hot dip galvanized, Powder Coated or Dacromet
Size	4mm, 5mm, 6mm, 8mm, 10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 28mm, 30mm, 32mm, 38mm, 45mm, 50mm
Country of Origin	China

Specifications of LGRIG® Drop Forged Wire Rope Clips Italy Type

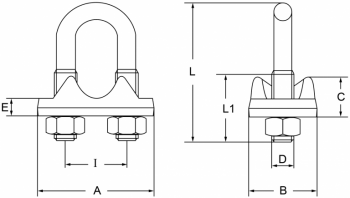

Part No.	Size	Rope	A	B	C	D	E	I	L	L1	unit
	Size	Size	A	B	C	D	E	I	L	L1	Weight
	mm	mm	mm	mm	mm		mm	mm	mm	mm	Kg
LGWRCI04	4	3 / 4	21	14	9	M 4	4,5	9	20	12	0,010
LGWRCI05	5	5	25	17	10	M 5	4,5	11	24	13	0,020
LGWRCI06	6	6	30	19	11	M 6	5	14,5	34	19	0,030
LGWRCI08	8	8	33	20	12	M 6	5,5	16	34	19	0,040
LGWRCI10	10	10	38	22	14	M 8	6	18	44	24	0,070
LGWRCI11	11	11	40	23	15	M 8	6,5	20	45	27	0,080
LGWRCI12	12	12	45	25	16	M 10	7	23	55	30	0,120
LGWRCI14	14	14	46	27	17	M 10	7,5	24	55	30	0,140
LGWRCI16	16	16	53	31	18	M 10	8	28	63	32	0,180
LGWRCI18	18	18	59	33	20	M 12	8	30	78	38	0,260
LGWRCI20	20	20	60	34	22	M 12	9	33	78	38	0,290
LGWRCI22	22	22	64	34	23	M 12	9,5	36	81	45	0,300
LGWRCI24	24	24-25	70	40	24	M 12	10	38	86	45	0,380
LGWRCI28	28	28	80	43	30	M 14	12	42	110	55	0,560
LGWRCI30	30	30	80	44,5	32	M 14	12	48	112	55	0,706
LGWRCI32	32	32	92	45	34	M 16	14	49	115	60	0,910
LGWRCI38	38	36-38	95	51	39	M 16	16	57	130	63	1,030
LGWRCI45	45	45	115	58	46	M 16	16	70	158	83	1,450
LGWRCI50	50	50	115	59	46	M 16	16	70	158	83	1,450
