Information of LGRIG® Eye Bend Hook Type A Forged Alloy

Brand	LGRIG®
Grade	Grade 70
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Zinc Plated / Self-Colored
Size	5/16”, 3/8”, 1/2” Eye bend hook
Tips	Finish: Customized according to customers' requirements
Country of Origin	China

Specifications of LGRIG® Eye Bend Hook Type A Forged Alloy

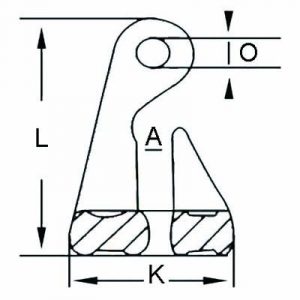

Part No.	SIZE	DIMENSIONS				MBS	U.W.
Part No.	SIZE	A	K	L	O	LBS	LBS
LGEBH101	5/16”	5/16”	2.24	3.07	0.51	10000	0.81
LGEBH102	3/8”	3/8”	2.71	3.97	0.67	13000	1.76
LGEBH103	1/2”	1/2”	3.26	4.4	0.82	27000	2.97
