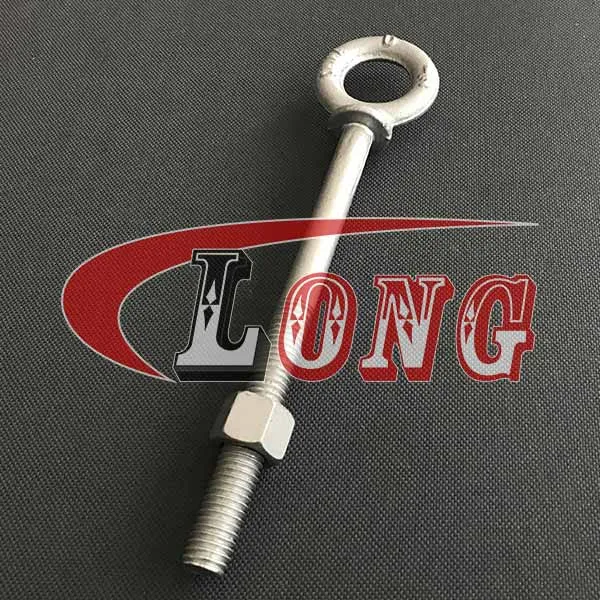

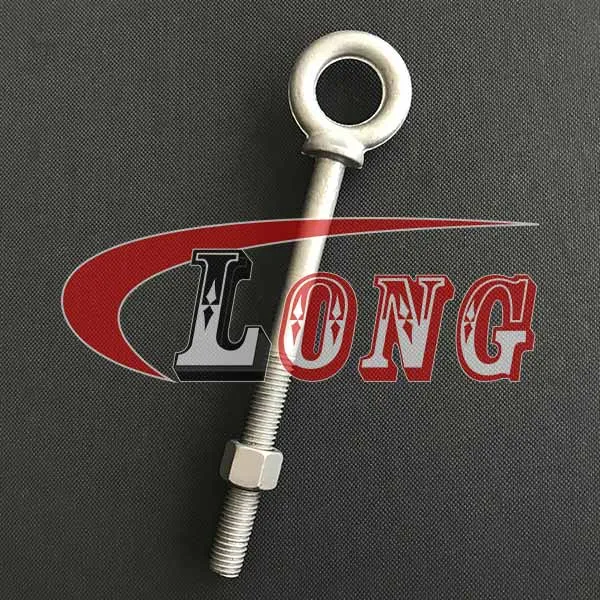

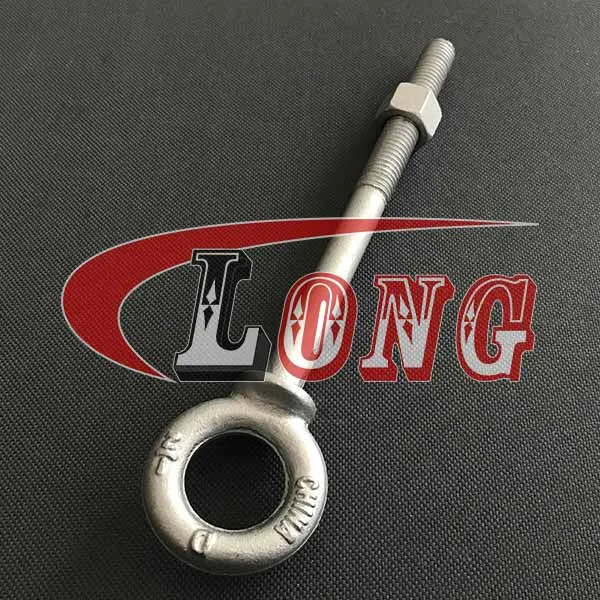

Information of LGRIG® Forged Shoulder Nut Eye Bolts LG-277

Brand	LGRIG®
Standard	Meets or exceeds all requirements of ASME B30.26
Model	G-277
Material	Forged Steel
Processing	Drop Forged, Quenched and Tempered
Finish	Hot Dip Galvanized
Size	1/4 x 2″, 1/4 x 4″, 5/16 x 2 1/4″, 5/16 x 4 1/4″, 3/8 x 2 1/2″, 3/8 x 4 1/2″ 1/2 x 3 1/4″, /2 x 6″, 5/8 x 4″, 5/8 x 6″, 3/4 x 4 1/2″, 3/4 x 6″, 7/8 x 5″ 1 x 6″, 1 x 9″, 1 1/4 x 8″, 1 1/4 x 12″, 1 1/2 x 15″
Safety Factor	5:1
Tips	Furnished with standard Hot Dip galvanized hex nuts.
Country of Origin	China

Specifications of LGRIG® Forged Shoulder Nut Eye Bolts LG-277

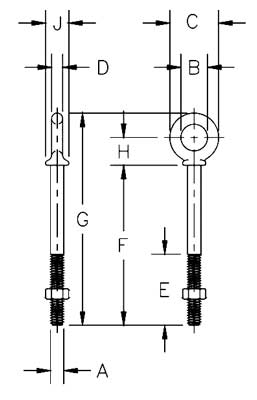

Part No.	Shank Dia & Length (in)	Working Load Limit (lbs)	Weight per 100 (lbs)	Dimensions (in)
Part No.	Shank Dia & Length (in)	Working Load Limit (lbs)	Weight per 100 (lbs)	A	B	C	D	E	F	G	H	J
LG277EB101	1/4 x 2″	650	6.6	0.25	0.5	0.88	0.19	1.5	2	2.94	0.5	0.47
LG277EB102	1/4 x 4″	650	9.1	0.25	0.5	0.88	0.19	2.5	4	4.94	0.5	0.47
LG277EB103	5/16 x 2 1/4″	1200	12.5	0.31	0.62	1.12	0.25	1.5	2.25	3.5	0.69	0.56
LG277EB104	5/16 x 4 1/4″	1200	18.8	0.31	0.62	1.12	0.25	2.5	4.25	5.5	0.69	0.56
LG277EB105	3/8 x 2 1/2″	1550	21.4	0.38	0.75	1.38	0.31	1.5	2.5	3.97	0.78	0.66
LG277EB106	3/8 x 4 1/2″	1550	25.3	0.38	0.75	1.38	0.31	2.5	4.5	5.97	0.78	0.66
LG277EB107	1/2 x 3 1/4″	2600	42.6	0.5	1	1.75	0.38	1.5	3.25	5.12	1	0.91
LG277EB108	1/2 x 6″	2600	56.8	0.5	1	1.75	0.38	3	6	7.88	1	0.91
LG277EB109	5/8 x 4″	5200	68.6	0.62	1.25	2.25	0.5	2	4	6.44	1.31	1.12
LG277EB110	5/8 x 6″	5200	102.4	0.62	1.25	2.25	0.5	3	6	8.44	1.31	1.12
LG277EB111	3/4 x 4 1/2″	7200	144.5	0.75	1.5	2.75	0.62	2	4.5	7.44	1.56	1.38
LG277EB112	3/4 x 6″	7200	167.5	0.75	1.5	2.75	0.62	3	6	8.94	1.56	1.38
LG277EB113	7/8 x 5″	10600	225	0.88	1.75	3.25	0.75	2.5	5	8.46	1.84	1.56
LG277EB114	1 x 6″	13300	366.3	1	2	3.75	0.88	3	6	9.97	2.09	1.81
LG277EB115	1 x 9″	13300	422.5	1	2	3.75	0.88	4	9	12.97	2.09	1.81
LG277EB116	1 1/4 x 8″	21000	650	1.25	2.5	4.5	1	4	8	12.72	2.47	2.28
LG277EB117	1 1/4 x 12″	21000	795	1.25	2.5	4.5	1	4	12	16.72	2.47	2.28
LG277EB118	1 1/2 x 15″	24000	1425	1.5	3	5.5	1.25	6	15	20.75	3	2.75
