Information of LGRIG® G-400 Eye Nut Galvanized UNC Threaded

Brand	LGRIG®
Standard	Satisfies ASME B30.26 requirements
Model	G-400
Material	Superior Forged Steel
Processing	Drop Forged, Quenched and Tempered
Finish	Hot Dip Galvanized
Size	1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-3/8", 1-1/2", 2"
Tips	Tapped with standard UNC class 2 threads after galvanizing.
Country of Origin	China

Specifications of LGRIG® G-400 Eye Nut Galvanized UNC Threaded


Part No.	Size (in.)	Working Load Limit (t)	Weight Each (kg)	Dimensions (mm)

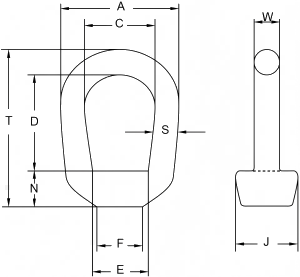

Part No.	Size (in.)	Working Load Limit (t)	Weight Each (kg)	A	C	D	E	F	J	K	N	T	W
LGG400EN101	1/4	0.24	0.04	31.8	19.1	25.4	19.1	12.7	17.5	16	9.65	43.7	7.85
LGG400EN102	3/8	0.57	0.08	41.1	25.4	30.5	21.1	14.2	20.6	22.6	12.7	53	10.4
LGG400EN103	1/2	1.02	0.13	51.0	31.8	36.6	27.4	20.6	25.4	27.7	15.7	63.5	12.7
LGG400EN104	5/8	1.63	0.27	63.5	38.1	48.8	34.3	25.4	33.3	33.3	17.5	82.5	17.5
LGG400EN105	3/4	2.36	0.45	75.0	44.5	60.5	40.4	28.4	38.1	39.9	22.4	98.8	21.3
LGG400EN106	7/8	3.27	0.75	89.0	51.0	66.8	49.8	35.1	47.8	45	23.9	110	25.4
LGG400EN107	1	4.54	1.22	102	57.0	77.7	56.0	39.6	54.0	51.5	27.2	127	30.2
LGG400EN108	1-1/4	7.03	1.98	114	63.5	88.9	62.5	47.8	60.5	57.5	31.8	147	35.1
LGG400EN109	1-3/8	8.39	2.27	127	70.0	102	68.5	51.0	65.0	64.5	35.1	165	38.1
LGG400EN110	1-1/2	10.21	3.08	143	79.0	109	78.5	57.0	76.0	71.5	38.1	179	42.2
LGG400EN111	2	18.14	6.62	181	104	157	104	79.5	95.5	93.5	52.3	252	49.3
