Information of LGRIG® G-403 Jaw End Swivel Galvanized

Brand	LGRIG®
Standard	G-403 swivels meet the performance requirements of Federal Specification RR-C-271H, Type VII, Class 3, except for those provisions required of the contractor. Meets or exceeds ASTM A957 & ASME B30.26 requirements.
Model	G-403
Material	Super Carbon Steel (1045) regular swivel
Processing	Drop Forged + Welded +Heat Treated
Finish	Hot Dip Galvanized / Electric Galvanized
Safety Factor	5: 1
Size	1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-1/2" regular swivel
Country of Origin	China

Specifications of LGRIG® G-403 Jaw End Swivel Galvanized

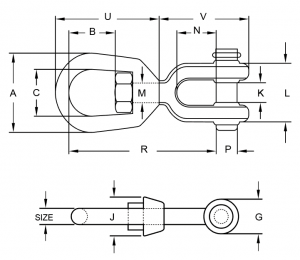

G-403 Part No.	Size	WLL	Weight Each	Dimensions
G-403 Part No.	(in.)	(lbs.)*	(lbs.)	A	B	C	G	J	K	L	M	N	P	R	U	V
LG403JS01	1/4	850	0.21	1.25	0.69	0.75	0.69	0.69	0.47	1.03	0.31	0.88	0.25	2.63	1.69	1.69
LG403JS02	5/16	1250	0.34	1.63	0.81	1	0.81	0.81	0.5	1.13	0.38	0.88	0.31	2.94	2.06	1.81
LG403JS03	3/8	2250	0.66	2	0.94	1.25	1	1	0.63	1.41	0.5	1.06	0.38	3.63	2.5	2.25
LG403JS04	1/2	3600	1.34	2.5	1.31	1.5	1.31	1.31	0.75	1.75	0.63	1.31	0.5	4.5	3.19	2.88
LG403JS05	5/8	5200	2.48	3	1.56	1.75	1.63	1.5	0.94	2.06	0.75	1.5	0.63	5.31	3.88	3.44
LG403JS06	3/4	7200	3.88	3.5	1.75	2	1.88	1.88	1.13	2.53	0.88	1.75	0.75	6.06	4.31	4
LG403JS07	7/8	10000	5.87	4	2.06	2.25	2.13	2.13	1.19	2.75	1	2.06	0.88	7	5	4.53
LG403JS08	1	12500	9.84	4.5	2.31	2.5	2.63	2.38	1.75	3.72	1.13	2.81	1.13	8.56	5.75	5.94
LG403JS09	1-1/4	18000	15.75	5.69	2.69	3.13	3.13	3	2.06	4.31	1.63	2.81	1.38	9.75	7.06	6.38
LG403JS10	1-1/2	45200	54.75	7	3.88	4	5.63	4	2.88	6	2.25	4.44	2.25	14.25	10	10.84
