G80 Eye Shortening Grab Hook with Safety Pin

G80 eye shortening grab hook with safety pin, also known as G80 eye shortening cradle grab hook, drop forged from superior alloy steel, finished with powder coated, for Lashing Chain.

This G80 lifting eye Grab Hook, fitted with safety pin,provides the flexibility to shorten Chain Sling and can be used for back-hooking.

Grab Hooks come with supporting lugs to allow no reduction of the working load limit. New Design with “Locking Pin” to hold chain from sliding out under no load. The lifting eye, designed for easy connection of Chain Connector.

Trawling Gear
Shackles
Boat Fittings

Information of G80 Eye Shortening Grab Hook with Safety Pin

Material

Superior Alloy Steel

Safety Factor

4: 1

Processing

Drop Forged / Quenched and Tempered

Finish

Powder Coated

Size

7/8mm, 10mm, 13mm

Tips

Color Code: Customized according to customers’ requirements

Note

Never exceed working load limit

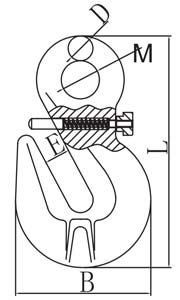

Specifications of G80 Eye Shortening Grab Hook with Safety Pin

Specifications of G80 Eye Shortening Grab Hook with Safety Pin


Part No.

U.W.

W.L.L.

B.L

M

B

D

E

L

KGS

TONS

TONS

MM

MM

MM

MM

MM

8-LG-ESGH-7/8

0.29

2

8

17

50

9.5

11

88.5

8-LG-ESGH-10

0.75

3.15

12.6

20

71

13

13

121.5

8-LG-ESGH-13

1.62

5.3

21.2

26

96

15.5

16.5

158


*Ultimate load is 4 times the Working Load Limit.

*Above working load limit based on side pull.
