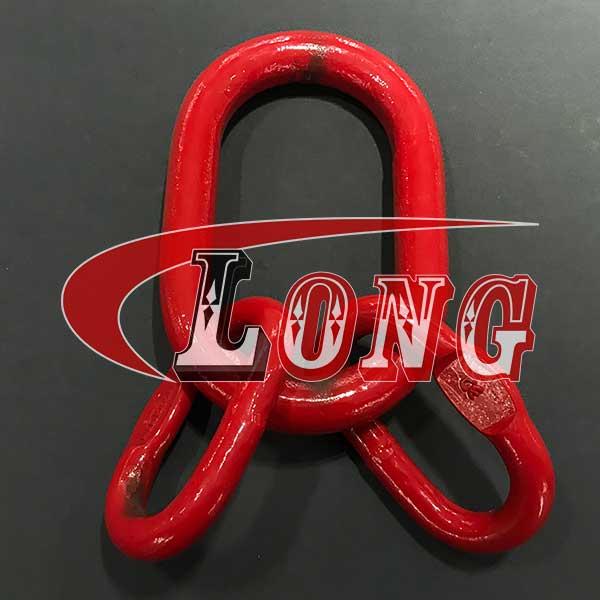

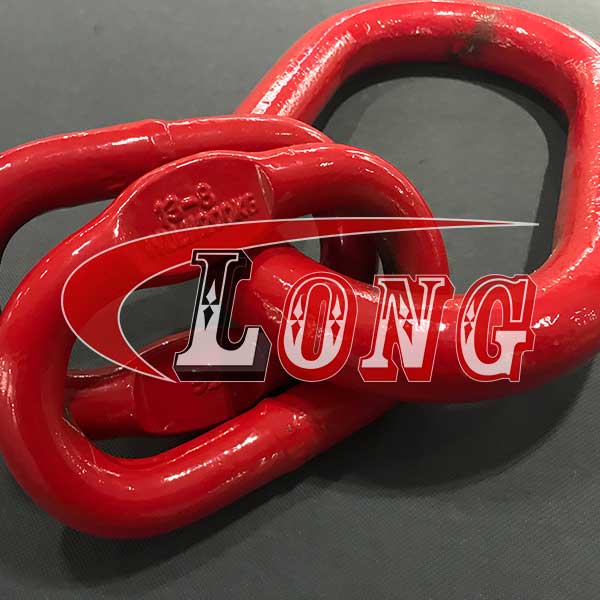

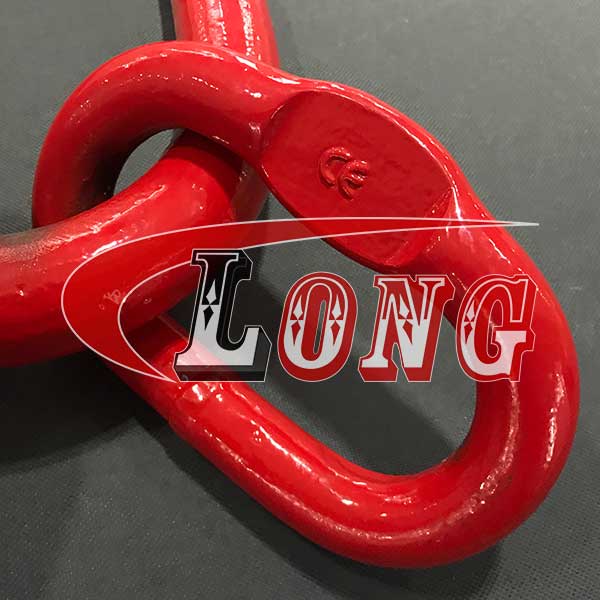

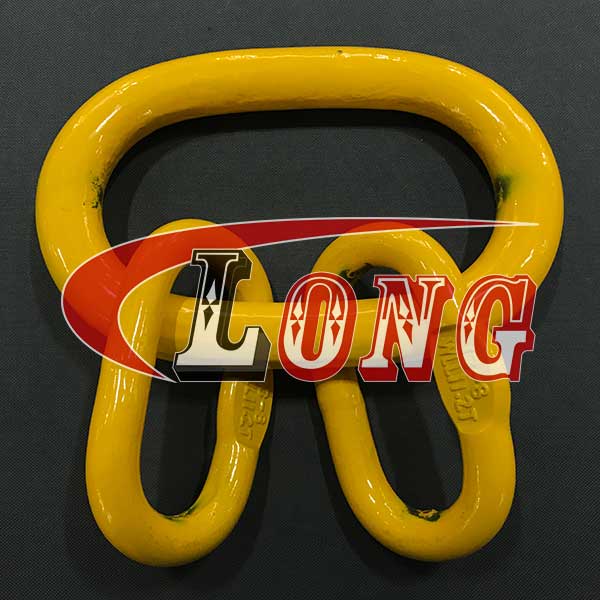

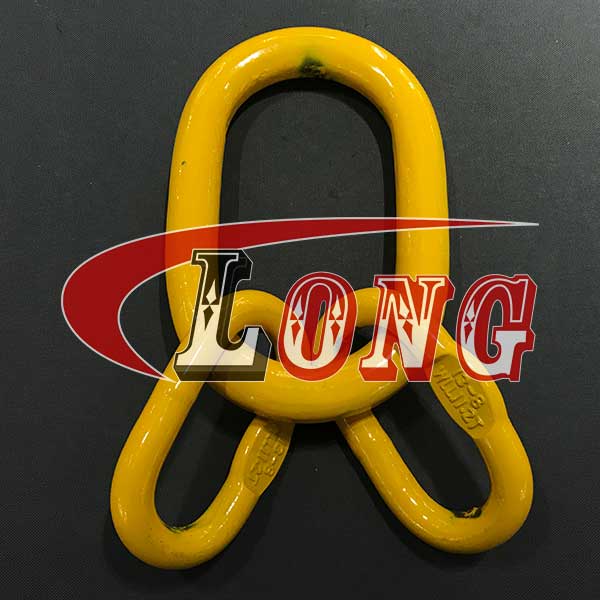

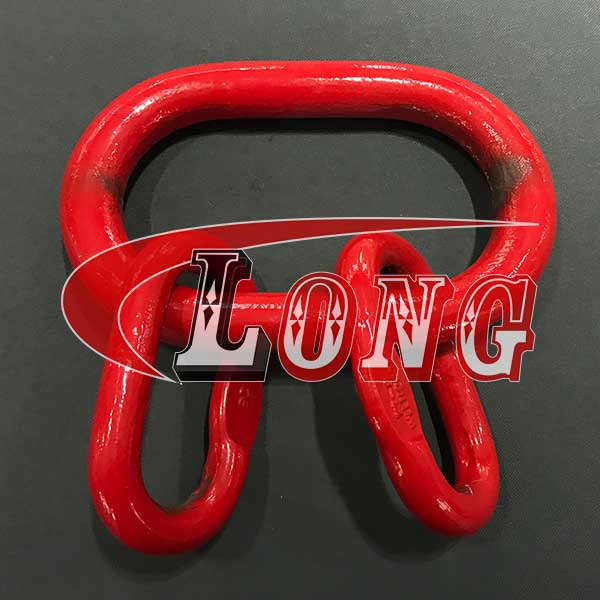

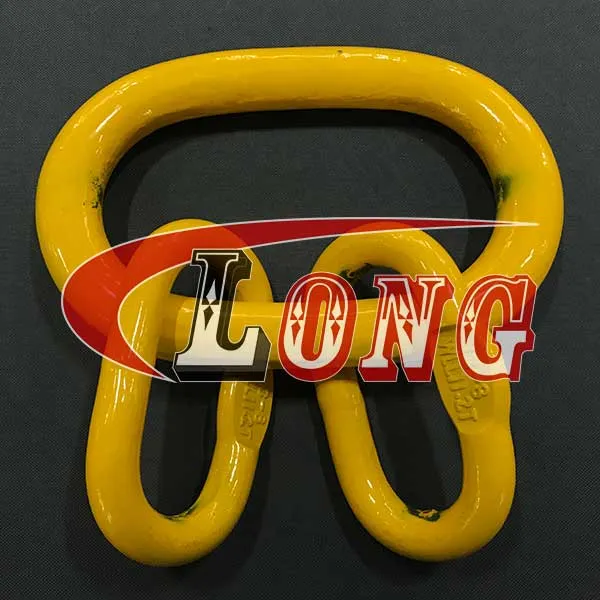

Name: LGRIG® Grade 80 Enlarged/Wider Master Link Assembly
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

 G80 Hooks

 G80 Lifting Points

 G80 Links, Rings

 G80 Swivels

 G80 Other Products

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade 80 Enlarged/Wider Master Link Assembly

Brand	LGRIG®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	Ultimate load is 4 times the Working Load Limit
Processing	8LGMLAE7 to 8LGMLAE16 ⇒ Main link: WELDED; Sub links: WELDED, flat on request. 8LGMLAE20 to 8LGMLAE26 ⇒ Main link: FORGED; Sub links: WELDED, no pressing flat. Quenched and Tempered
Finish	Powder Coated
Size	7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm
Tips	Color Code: Customized according to customers’ requirements
Country of Origin	China

Specifications of LGRIG® Grade 80 Enlarged/Wider Master Link Assembly


Part No.	G80 EN818-2 CHAIN

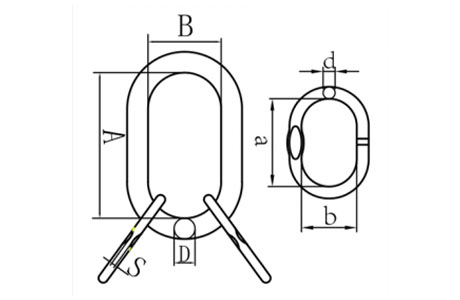

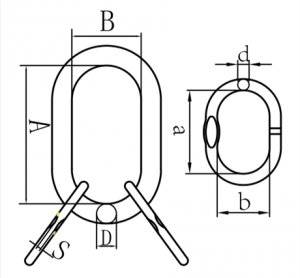

	80MM	WEIGHT (KG)	WLL (T)	DIMENSIONS(MM)
	FOR 3 OR 4 LEG SLING			A	B	D	a	b	d
8LGMLAE7	7	1.9	5.5	160	95	20	110	60	13
8LGMLAE8	8	2.82	6.65	160	95	22	140	80	16
8LGMLAE10	10	4.87	9.4	190	110	26	160	95	20
8LGMLAE13	13	9.38	14.2	230	130	32	190	110	26
8LGMLAE16	16	15.28	22.3	275	150	38	230	130	30
8LGMLAE20	20	21.78	33.5	340	180	45	230	130	32
8LGMLAE22	22	31.52	40.8	350	190	50	275	150	38
8LGMLAE26	26	48.92	60	400	200	56	340	180	45
