Information of LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised

Brand	LGRIG®
Standard	Turnbuckle To DIN1480
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M10, M16, M20, M24
Country of Origin	China

Specifications of LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised

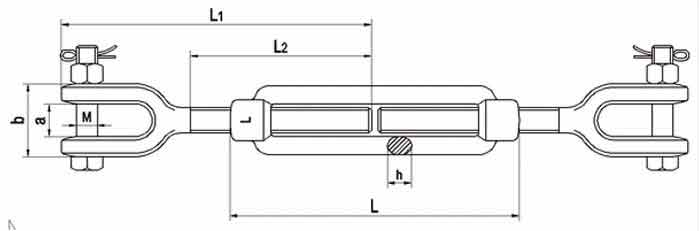

Part No.	Size	L	h	L1	L2	a	b	M	W.L.L.	B.L.
Part No.	Size	mm							N
LG1480JJ10	M10	125	9.5	135	78	12.5	27.5	M8	6500	26000
LG1480JJ16	M16	170	14	187	105	20	41	M12	17700	70800
LG1480JJ20	M20	200	17	205	115	23.5	46	M16	27000	108000
LG1480JJ24	M24	255	21	240	130	28	60	M20	39200	156800
