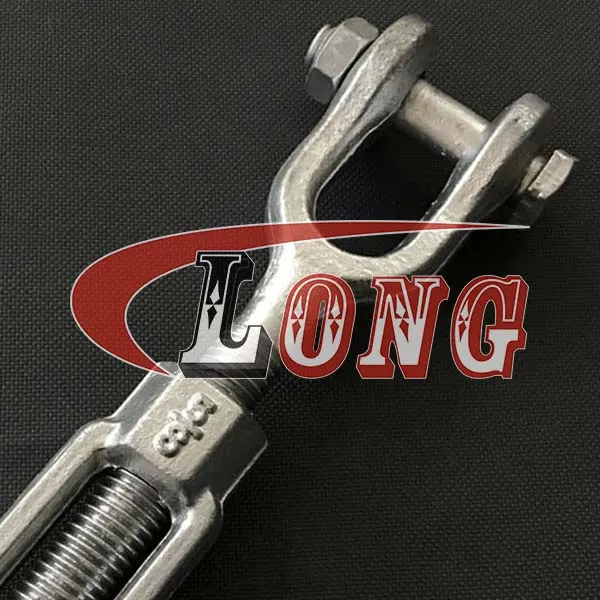

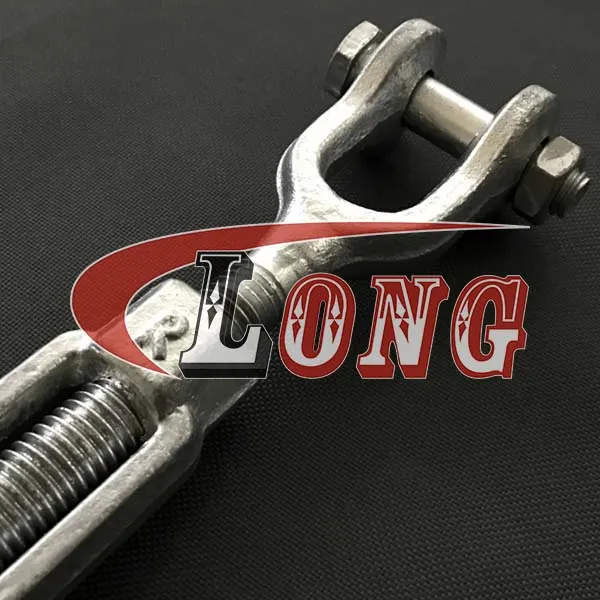

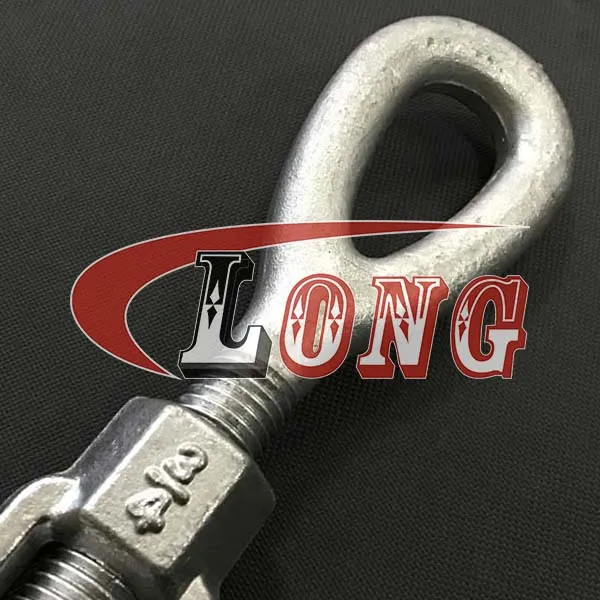

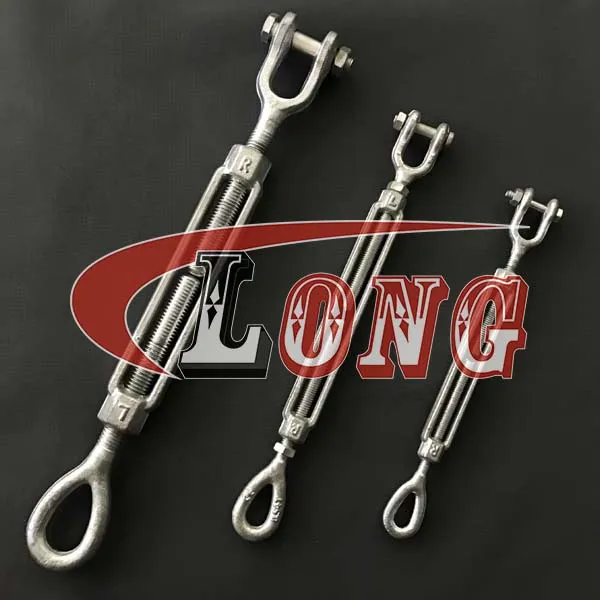

Information of LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec

Standard	Jaw & Eye Turnbuckle Meets or exceeds all requirements of ASTM F-1145. conform to US Federal Specification
Material	Super Carbon Steel (1045)
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Processing	Drop Forged + Machining +Quenched & Tempered
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4×4, 5/16×41/2, 3/8×6, 1/2×6, 1/2×9, 1/2×12, 5/8×6, 5/8×9, 5/8×12 3/4×6, 3/4×9, 3/4×12, 3/4×18, 7/8×12, 7/8×18, 1×6, 1×12, 1×18, 1×24 11/4×12, 11/4×18, 11/4×24, 11/2×12, 11/2×18, 11/2×24, 13/4×18, 13/4×24 2×24, 2 1/2×24, 2 3/4×24
Tips	Color Code: Customized according to customers’ requirements
Country of Origin	China

Specifications of LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec

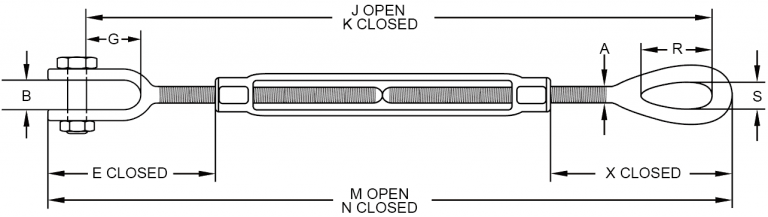

Part No.	Thread Dia & Take Up	Working limited	Weight	Dimensions(in)
		Working limited	Weight	B	E	G	J	K	R	S
		(lbs)	(lbs)	B	Closed	G	Open	Closed	R	S
LGTBJEUS01	1/4×4	500	0.33	0.45	1.66	0.64	11.57	7.57	0.81	0.34
LGTBJEUS02	5/16×41/2	800	0.52	0.5	2.02	0.87	13.5	9	0.95	0.44
LGTBJEUS03	3/8×6	1200	0.8	0.53	2.11	0.85	16.91	10.91	1.13	0.53
LGTBJEUS04	1/2×6	2200	1.77	0.64	3.22	1.07	19.3	13.3	1.41	0.71
LGTBJEUS05	1/2×9	2200	2.25	0.64	3.2	1.07	25.59	16.59	1.41	0.71
LGTBJEUS06	1/2×12	2200	2.67	0.64	3.2	1.07	31.59	19.59	1.41	0.71
LGTBJEUS07	5/8×6	3500	2.98	0.79	3.9	1.32	20.73	14.73	1.8	0.88
LGTBJEUS08	5/8×9	3500	3.72	0.79	3.89	1.32	27.07	18.07	1.8	0.88
LGTBJEUS09	5/8×12	3500	4.35	0.79	3.89	1.32	33.07	21.07	1.8	0.88
LGTBJEUS10	3/4×6	5200	4.51	0.97	4.71	1.52	22.17	16.17	2.09	1
LGTBJEUS11	3/4×9	5200	5.56	0.97	4.68	1.52	28.57	19.57	2.09	1
LGTBJEUS12	3/4×12	5200	6.42	0.97	4.68	1.52	34.57	22.57	2.09	1
LGTBJEUS13	3/4×18	5200	8.14	0.97	4.71	1.52	46.57	28.57	2.09	1
LGTBJEUS14	7/8×12	7200	9.1	1.16	5.5	1.77	35.68	23.68	2.38	1.25
LGTBJEUS15	7/8×18	7200	11.6	1.16	5.5	1.77	48.15	30.15	2.38	1.25
LGTBJEUS16	1×6	10000	10	1.34	6.09	2.05	25.03	19.03	3	1.43
LGTBJEUS17	1×12	10000	13.4	1.34	6.09	2.05	37.03	25.03	3	1.43
LGTBJEUS18	1×18	10000	16.7	1.34	6.09	2.05	49.03	31.03	3	1.43
LGTBJEUS19	1×24	10000	20.6	1.34	6.06	2.05	61.63	37.63	3	1.43
LGTBJEUS20	11/4×12	15200	20.9	1.84	8.09	2.82	40.76	28.76	3.59	1.82
LGTBJEUS21	11/4×18	15200	24.8	1.84	8.09	2.82	52.76	34.76	3.59	1.82
LGTBJEUS22	11/4×24	15200	28.8	1.84	8.09	2.82	65.32	41.32	3.59	1.82
LGTBJEUS23	11/2×12	21400	30.6	2.06	8.93	2.81	42.5	30.5	4.09	2.12
LGTBJEUS24	11/2×18	21400	36	2.06	8.93	2.81	54.5	36.5	4.09	2.12
LGTBJEUS25	11/2×24	21400	41.5	2.06	8.93	2.81	67.12	43.12	4.09	2.12
LGTBJEUS26	13/4×18	28000	52.1	2.6	9.36	3.35	55.37	37.37	4.65	2.38
LGTBJEUS27	13/4×24	28000	59.7	2.6	9.36	3.35	67.37	43.37	4.65	2.38
LGTBJEUS28	2×24	37000	89.9	2.62	11.8	3.74	72.66	48.66	5.81	2.69
LGTBJEUS29	2 1/2×24	60000	158	3.06	13.26	4.44	76.08	52.08	6.49	3.12
LGTBJEUS30	2 3/4×24	75000	187	3.69	14.92	4.19	78.05	54.05	7	3.25
