Information of Grade 100 Alloy Lifting Chain,EN818-2

Brand	LG RIGGING^®
Grade	Grade 100
Technical Notes	European Type (EN818-2)
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Welded
Finish	Black
Size	6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm
Tips	Color Code: Customized according to customers' requirements.
Note	NOT FOR LIFTING, ONLY FOR LASHING.

Specifications of Grade 100 Alloy Lifting Chain,EN818-2

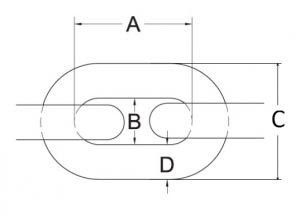

Part No.	Size (mm)	WLL (T)	B. L. (T)	A (mm)	B min (mm)	C max (mm)	Weight/m (KGS)
10LG8182C06	6±0.24	1.4	5.6	18±0.5	8.7	21.6	0.96
10LG8182C07	7±0.28	1.9	7.6	21±0.6	9.5	25.2	1.26
10LG8182C08	8±0.32	2.5	10	24±0.7	11	28.8	1.57
10LG8182C10	10±0.40	4	16	30±0.9	14	36	2.46
10LG8182C13	13±0.52	6.7	26.8	39±1.2	18	46.8	4.18
10LG8182C16	16±0.64	10	40	48±1.4	22	57.6	6.28
10LG8182C19	19±0.90	14	56	57±1.6	27	68.4	8.92
10LG8182C22	22±1.10	19	76	66±2.0	30	79.2	11.88
10LG8182C26	26±1.30	21.2	84.8	78±2.3	35	96.2	16.18
10LG8182C32	32±1.60	31.5	126	96±2.9	43	118	24.1

Caution:

Do Not Use for Overhead Lifting.

DO NOT EXCEED THE WORKING LOAD LIMIT.

WORKING LOAD LIMIT designates the maximum stress in pounds which should ever be applied to chain. This refers also to chain in the best condition, when new, and when the load is applied uniformly to a straight, untwisted length of chain.

WARNING: WORK LOAD LIMIT MUST NOT BE EXCEEDED.

BREAK TEST LOAD is the minimum load in pounds at which new chain has been found by experience to break, under tests in which the load is applied in direct tension to a straight length of chain with a uniform rate of speed on a standard chain testing machine.
